Removal procedure

  1. Remove the IP assembly. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT in Instrument Panel, Gages and Console.
  2. Remove the vacuum hose from the mode actuator.
  3. Slide the actuator off the mounting bracket in order to remove the actuator.
  4. Rotate the actuator (2) so that the actuator linkage slips off the post on the mode door linkage.
  5. Remove the actuator linkage from the mode door linkage.

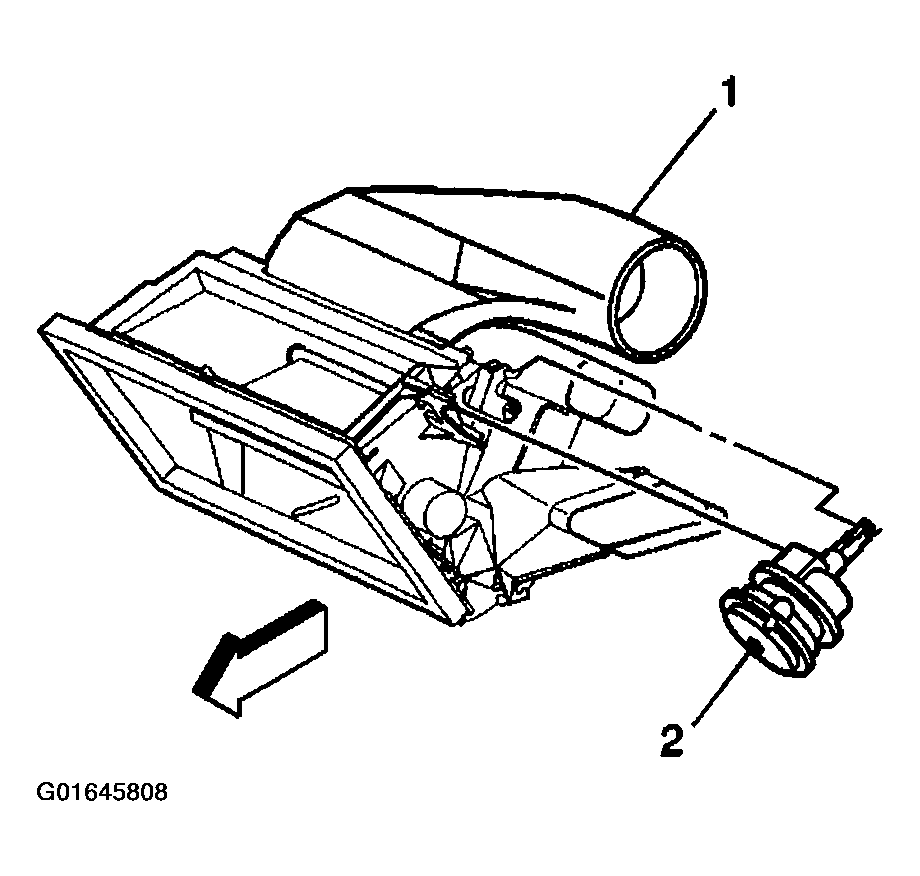

    Fig 1: Mode Actuator
    G01645808Courtesy of GENERAL MOTORS CORP.
