Removal Procedure

  1. Remove the IP cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.
  2. Remove the retaining screw from the left edge of the HVAC control assembly.

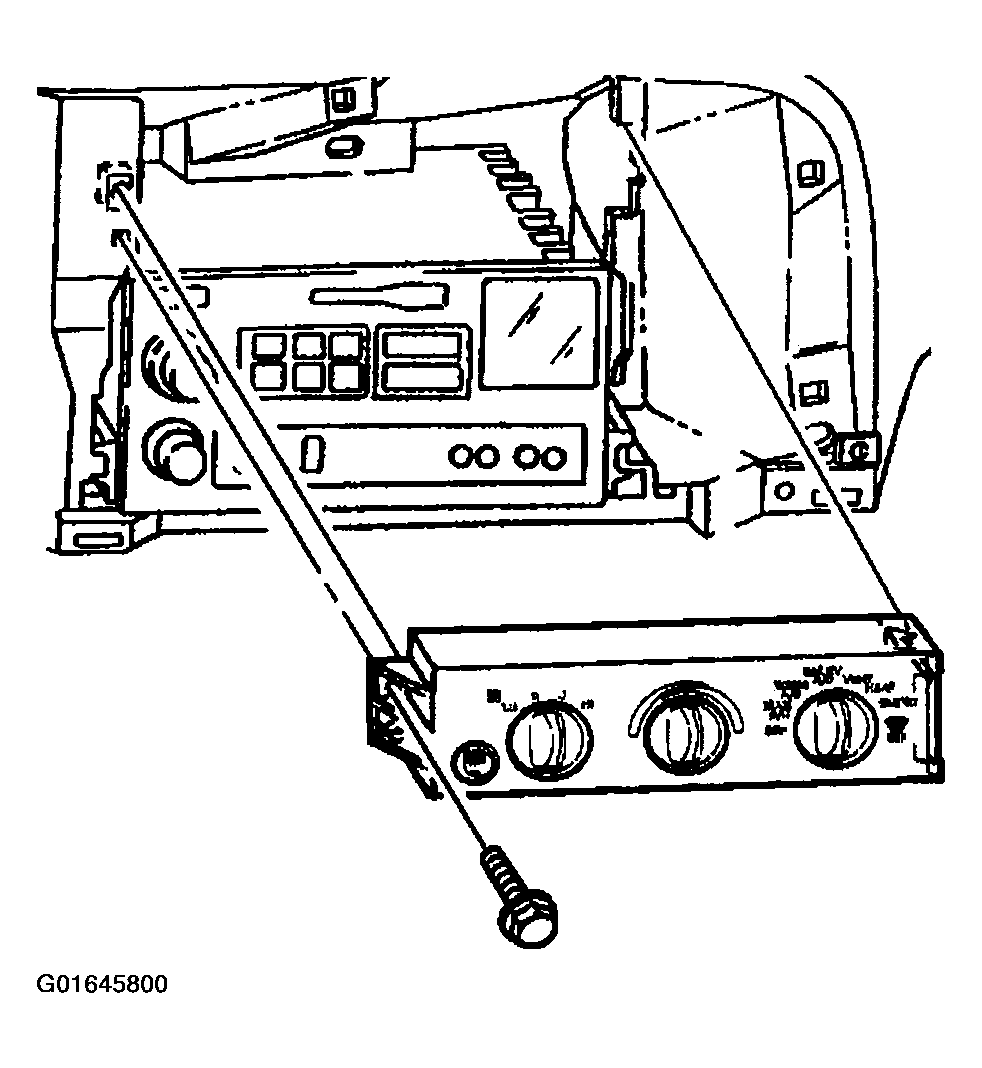

    Fig 1: Removing Retaining Screw From HVAC Control Assembly Left Edge
    G01645800Courtesy of GENERAL MOTORS CORP.
  3. Pivot the HVAC control assembly form the IP.
  4. Remove the HVAC control assembly from the IP in order to access the vacuum and the electrical connectors.
  5. Disconnect the following items from the HVAC control assembly:
    • The electrical connectors
    • The vacuum connectors

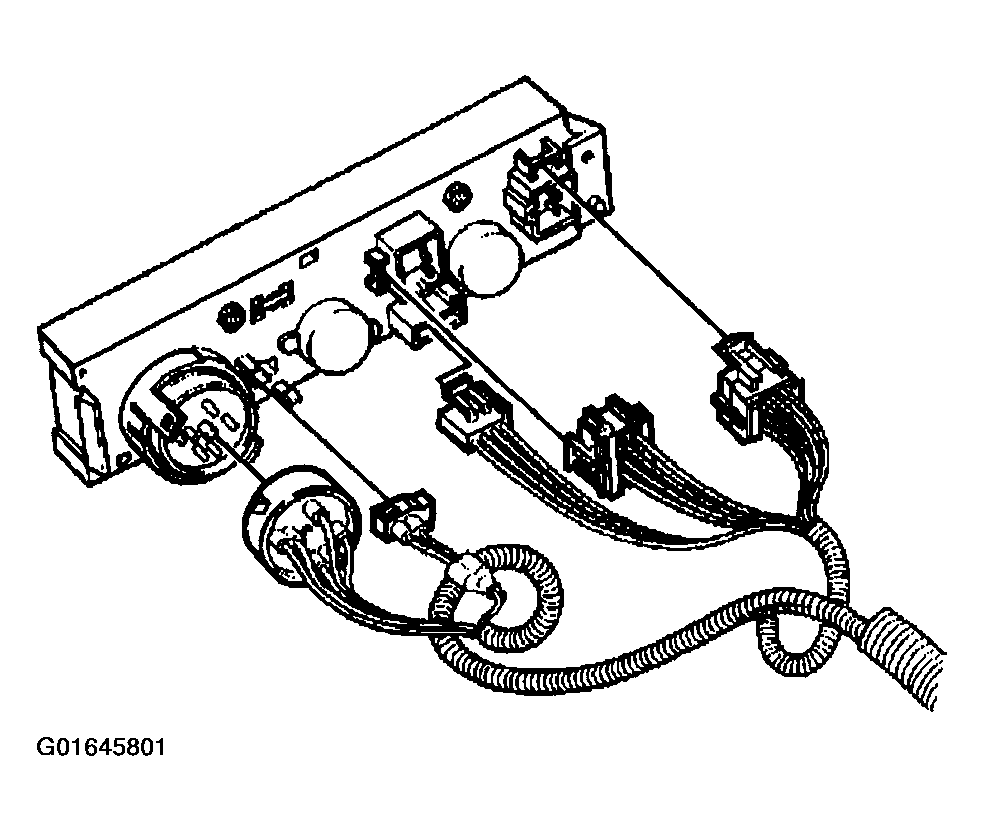

    Fig 2: Disconnecting Electrical & Vacuum Connectors
    G01645801Courtesy of GENERAL MOTORS CORP.
