Installation Procedure

  1. Connect the following items to the HVAC control assembly:
    • The vacuum connectors
    • The electrical connectors

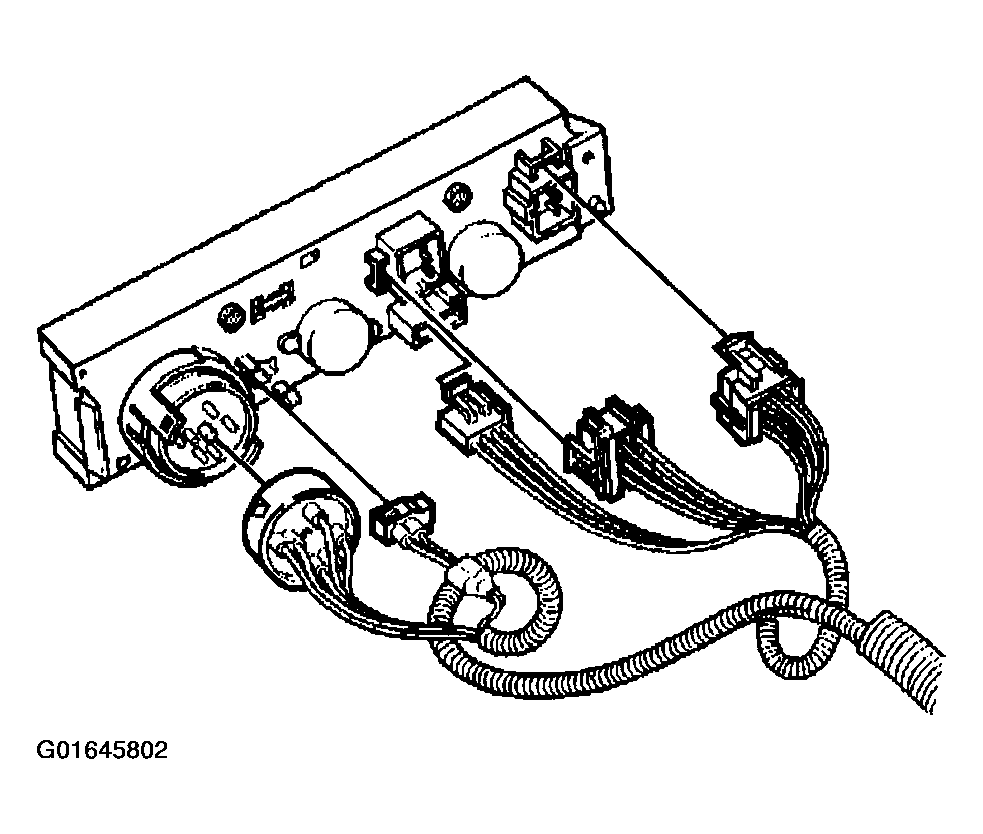

    Fig 1: Connecting Electrical & Vacuum Connectors
    G01645802Courtesy of GENERAL MOTORS CORP.
  2. Align the tab on the HVAC control assembly with the slot in the IP.
  3. Install the HVAC control assembly to the IP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the screw to the HVAC control assembly.

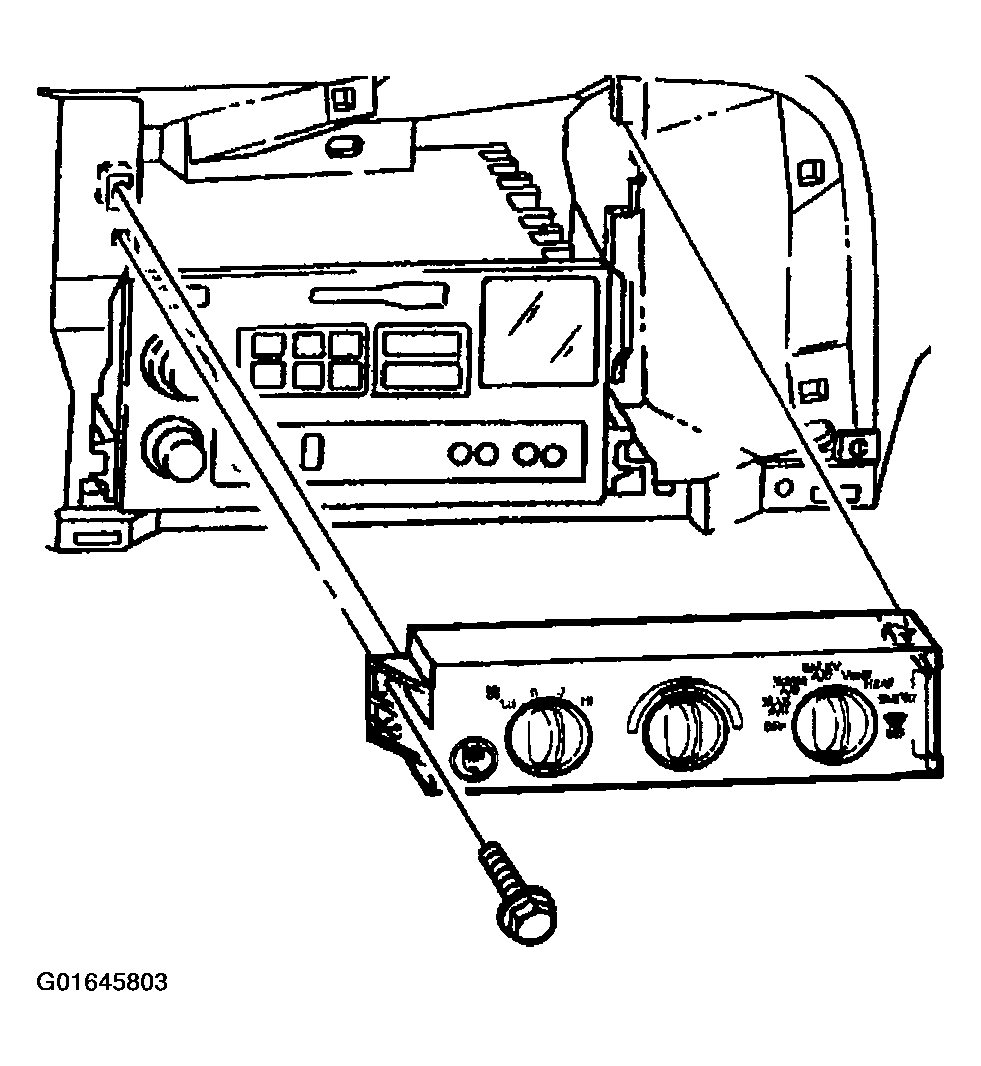

    Fig 2: Installing Screw To HVAC Control Assembly
    G01645803Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

  5. Install the IP cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.
