Installation Procedure

  1. Install the auxiliary A/C blower motor switch (2) to the instrument panel cluster trim plate (3) by engaging the tabs located on the sides of each switch.

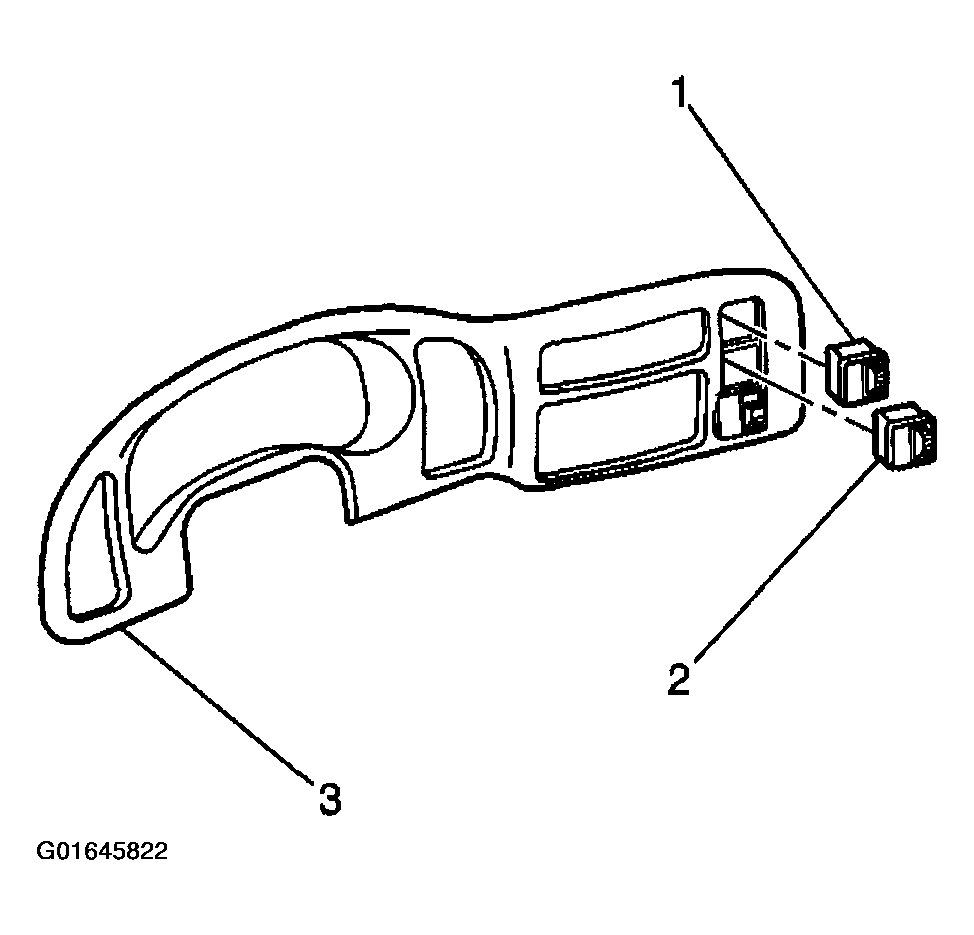

    Fig 1: Auxiliary A/C Blower Motor Switch
    G01645822Courtesy of GENERAL MOTORS CORP.
  2. Install the instrument panel cluster trim plate by aligning the retainers to the opening in the instrument panel and push in place until fully seated.

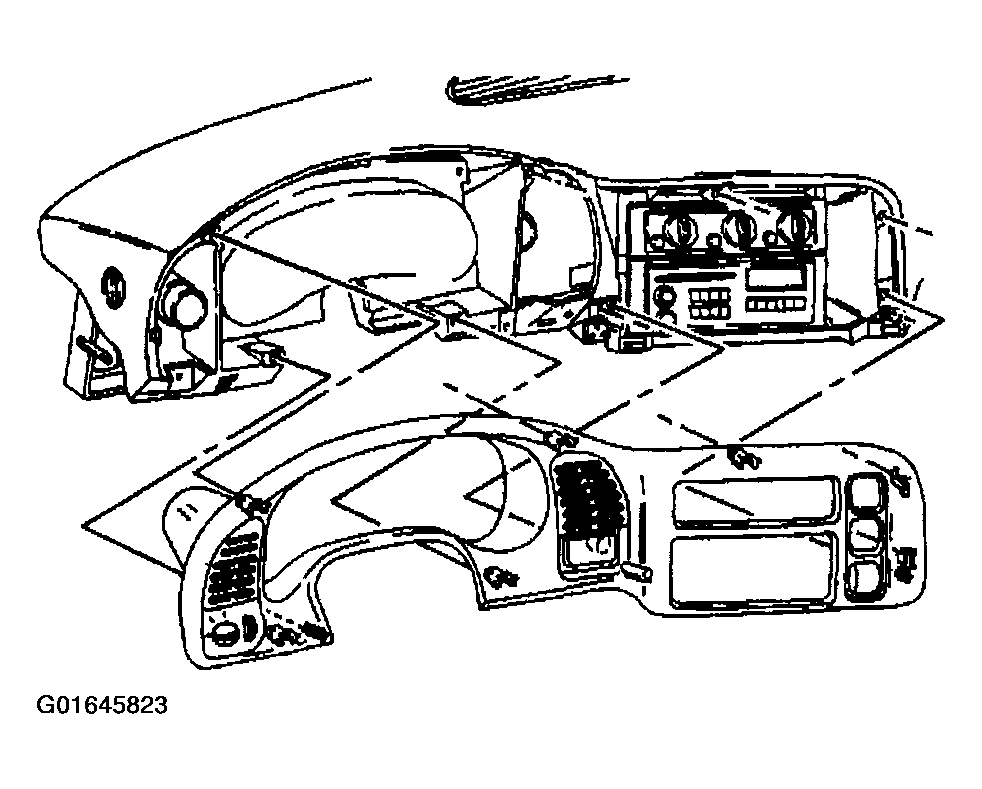

    Fig 2: Installing Instrument Panel Cluster Trim Plate By Aligning Retainers
    G01645823Courtesy of GENERAL MOTORS CORP.
  3. Move gear selector into PARK position, turn the ignition to the OFF position and release the park brake.
