Removal Procedure

  1. Remove the IP extension. Refer to INSTRUMENT PANEL (I/P) EXTENSION REPLACEMENT in Instrument Panel, Gages and Console.
  2. Remove the engine cover. Refer to ENGINE COVER REPLACEMENT in Interior Trim.
  3. Remove the screws that retain the actuator (1) to the heater assembly.

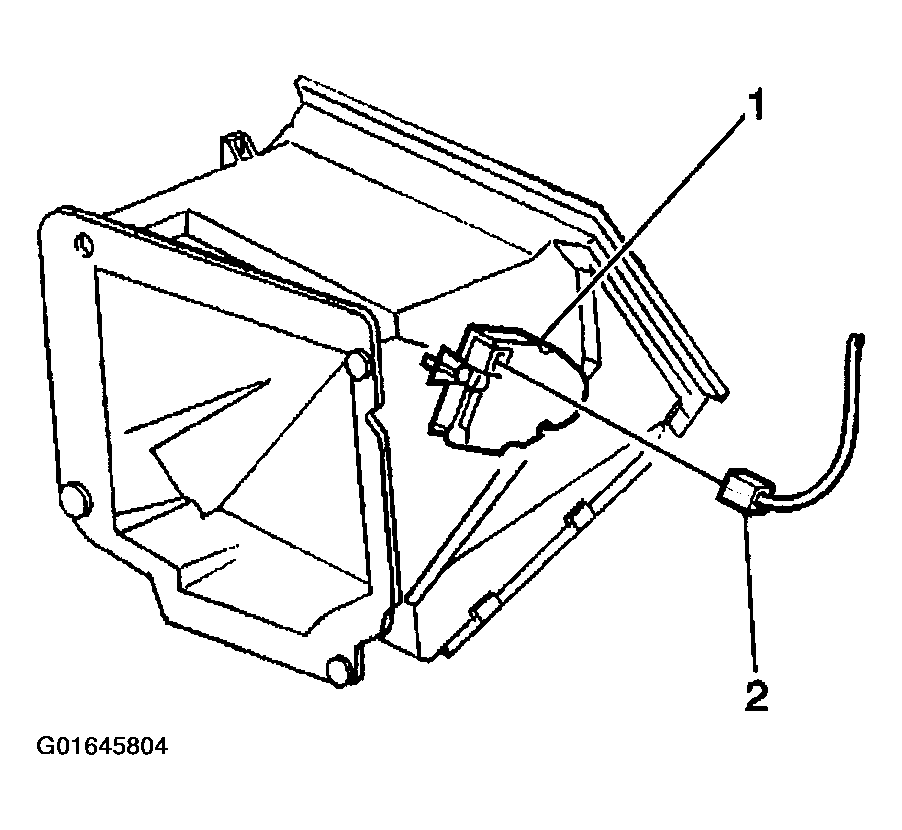

    Fig 1: Air Temperature Actuator Retaining Screws
    G01645804Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector (2).
  5. Remove the air temperature actuator form the heater assembly.

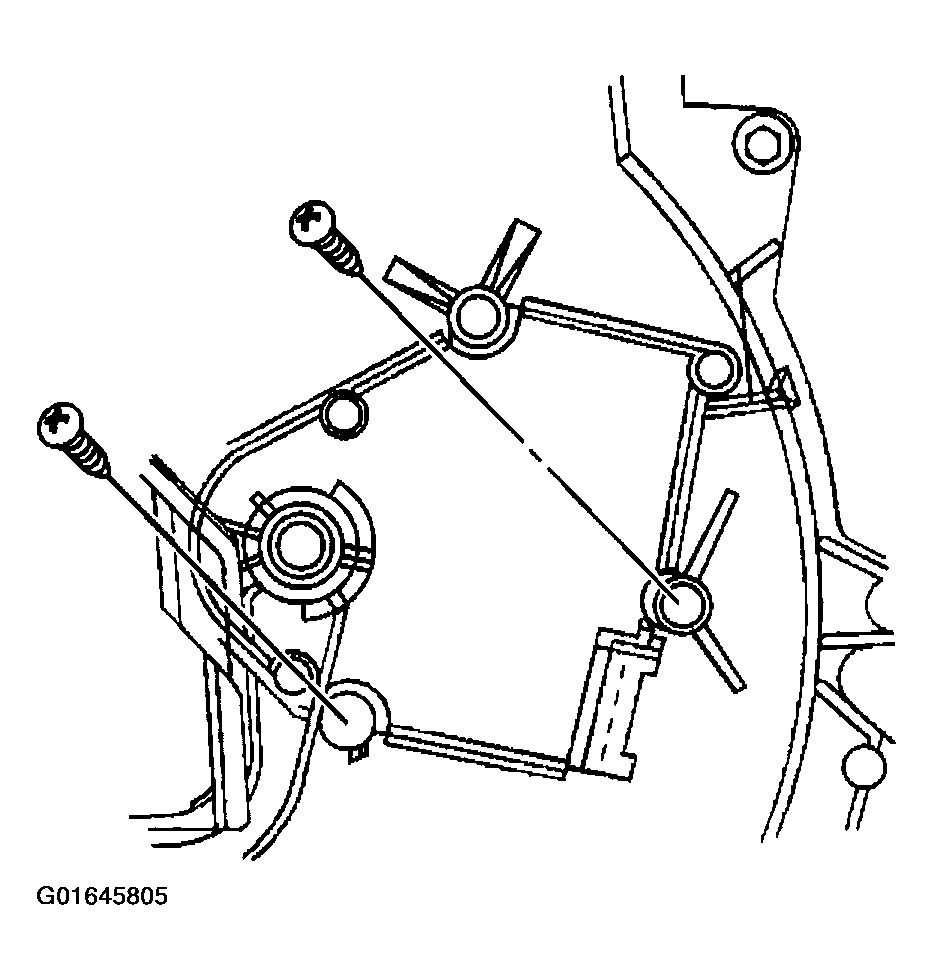

    Fig 2: Removing Air Temperature Actuator From Heater Assembly
    G01645805Courtesy of GENERAL MOTORS CORP.
