Installation Procedure

  1. Install the air temperature actuator to the heater assembly.

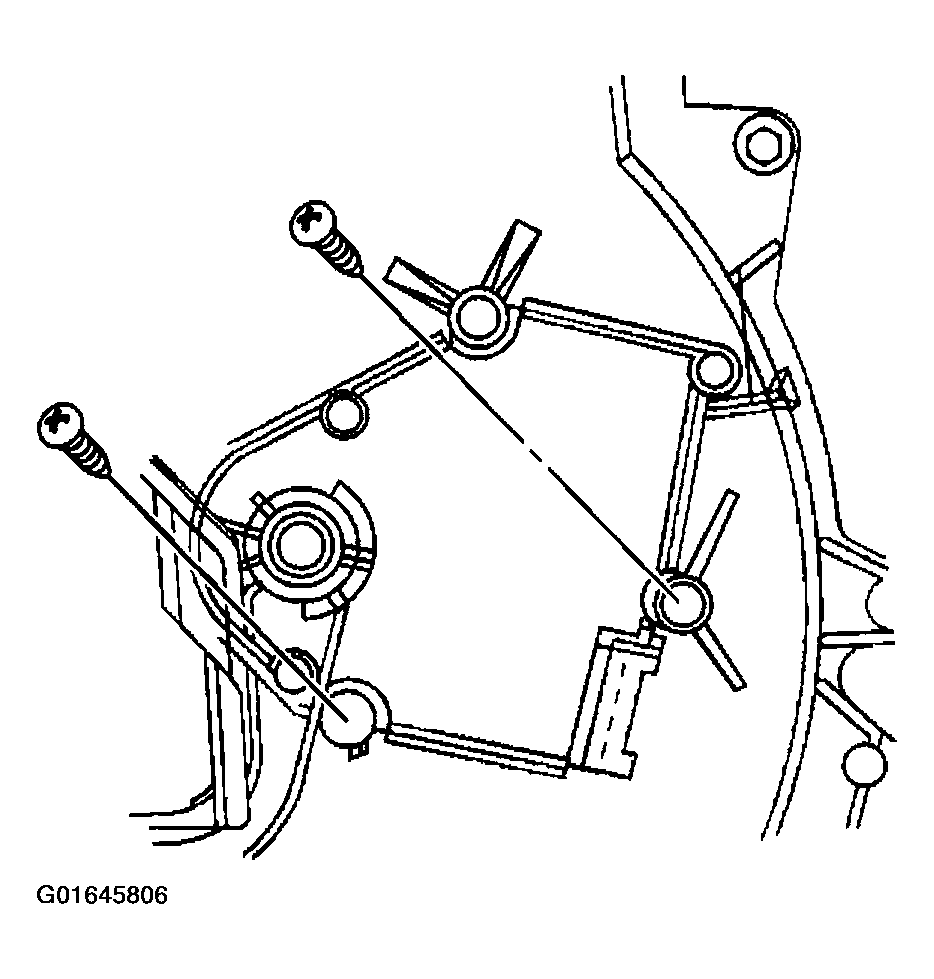

    Fig 1: Installing Air Temperature Actuator To Heater Assembly
    G01645806Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws that retain the air temperature actuator (1) to the heater assembly.

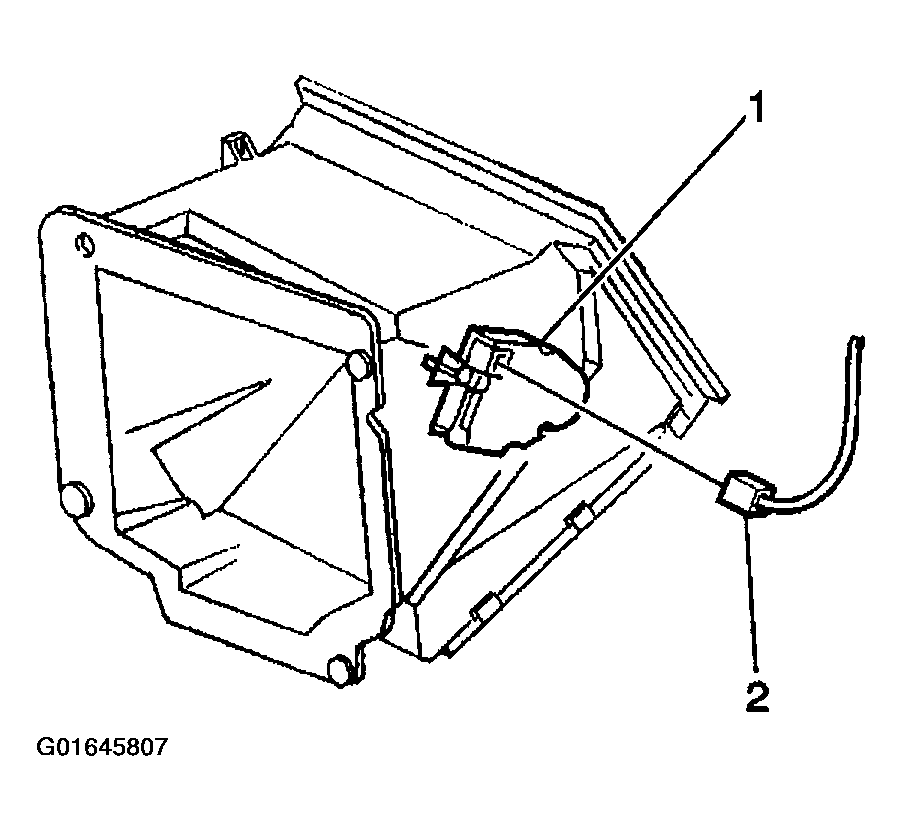

    Fig 2: Air Temperature Actuator Retaining Screws
    G01645807Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the engine cover. Refer to ENGINE COVER REPLACEMENT in Interior Trim.
  5. Install the IP extension. Refer to INSTRUMENT PANEL (I/P) EXTENSION REPLACEMENT in Instrument Panel, Gages and Console.
