HVAC Compressor Clutch Does Not Disengage

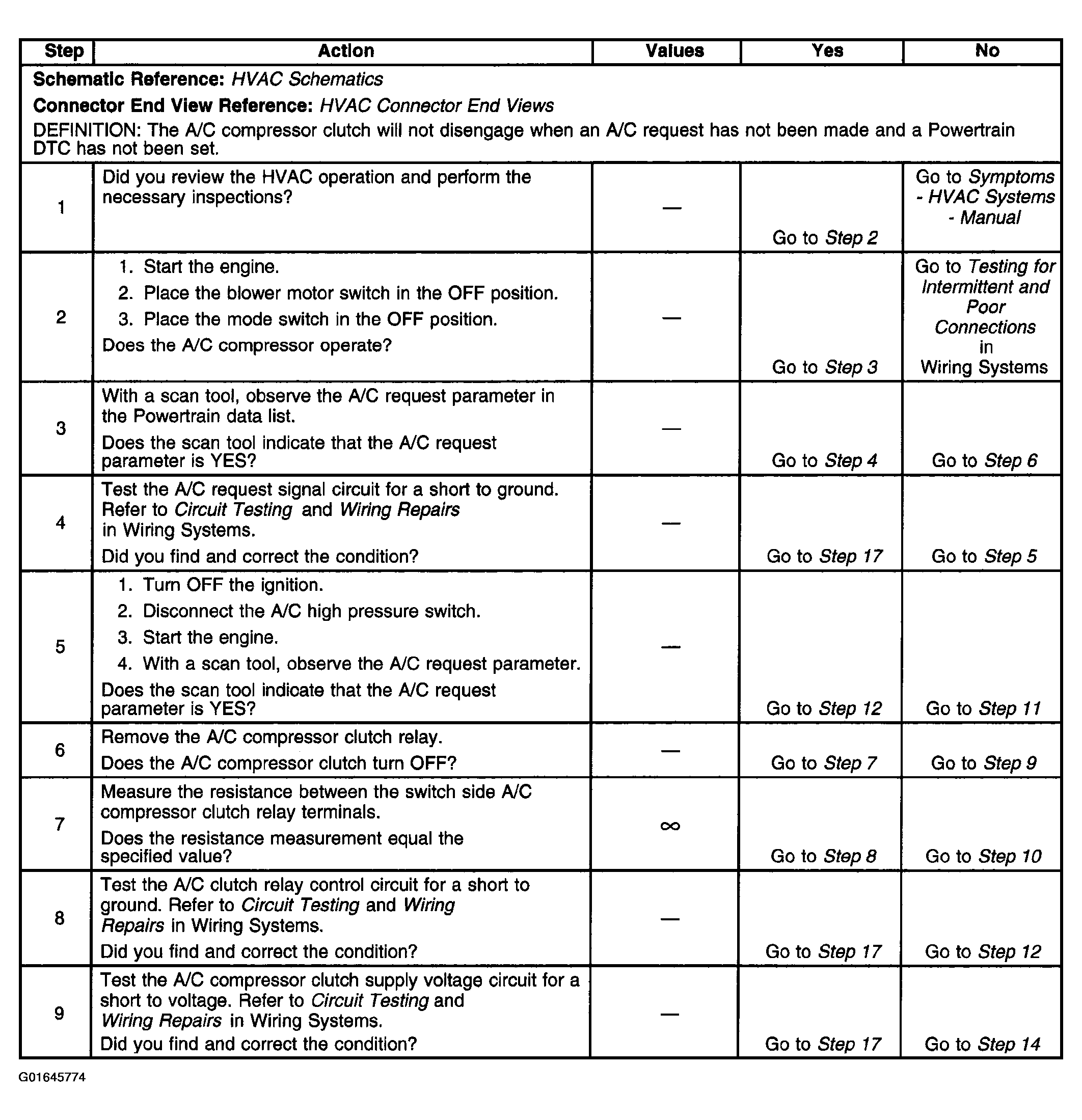

Fig 1: HVAC Compressor Clutch Does Not Disengage (1 Of 2)
G01645774Courtesy of GENERAL MOTORS CORP.

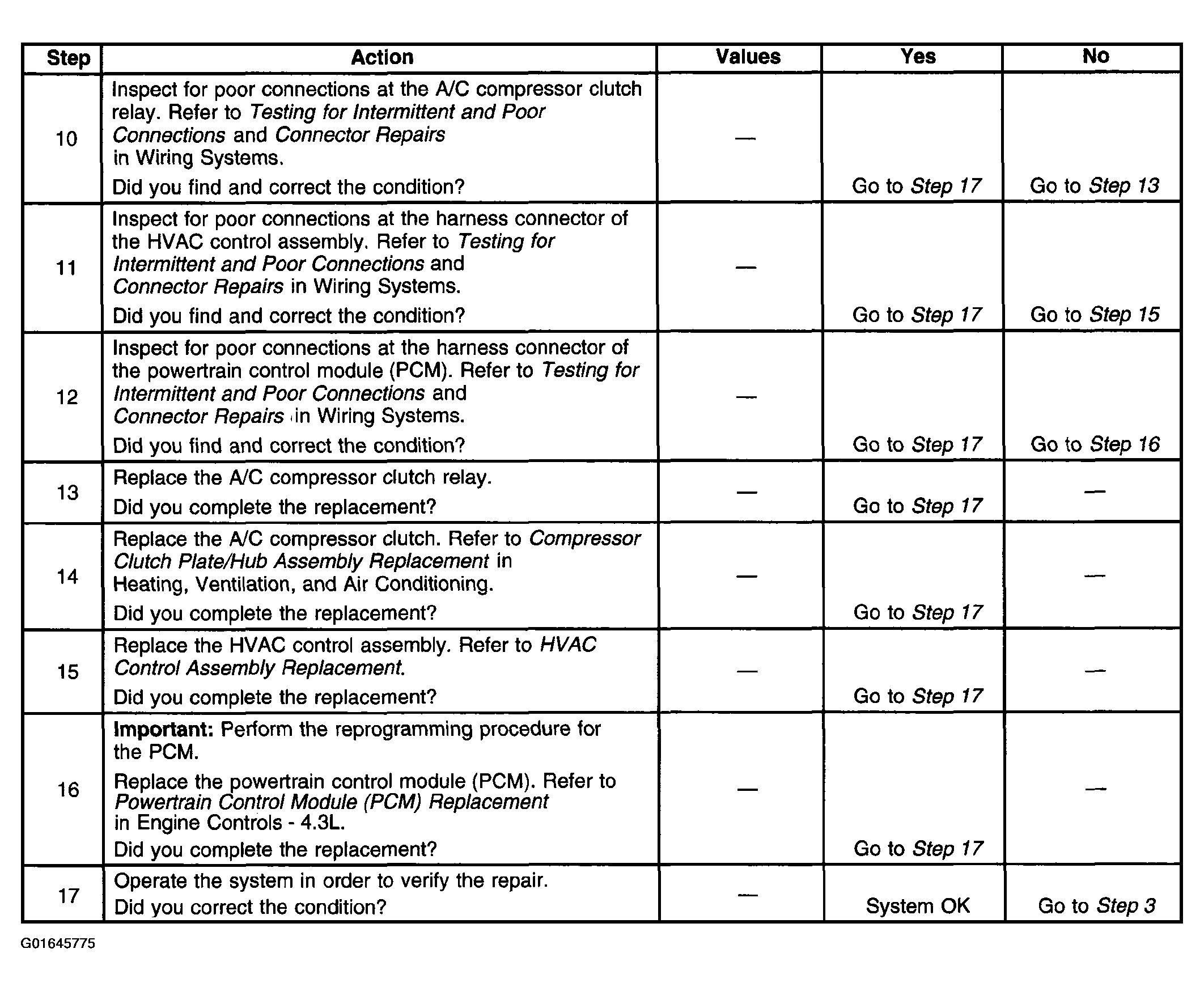

Fig 2: HVAC Compressor Clutch Does Not Disengage (2 Of 2)
G01645775Courtesy of GENERAL MOTORS CORP.
