Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This step tests for a blower motor that does not operate regardless of the desired blower motor speed.
  2. 4. This step tests for a blower motor that operates, yet does not accurately respond to the desired blower motor speed.

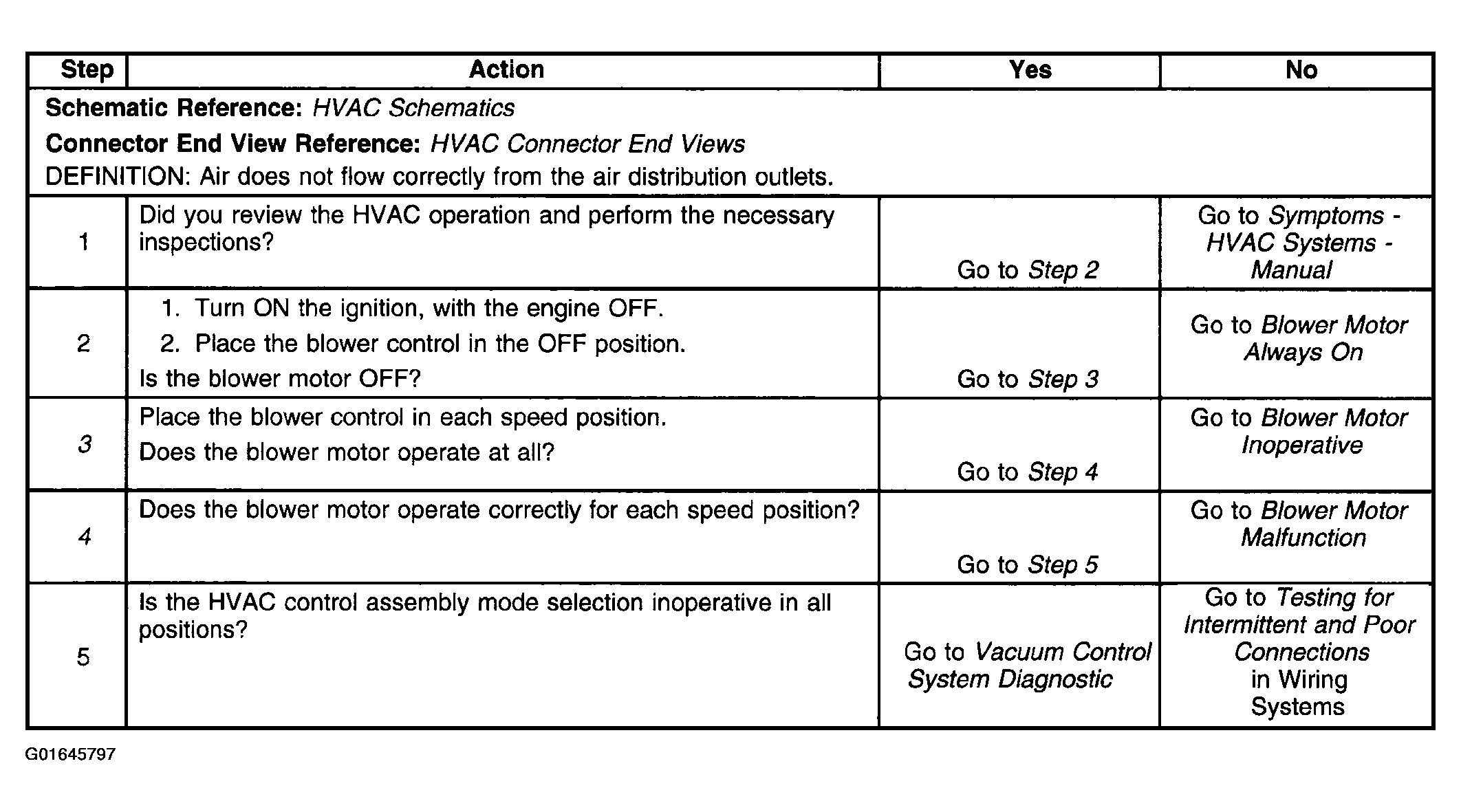

    Fig 1: Air Delivery Improper
    G01645797Courtesy of GENERAL MOTORS CORP.
