HVAC Control Module

The HVAC control assembly is a non-class 2 device that interfaces between the operator and the HVAC system to maintain air temperature and distribution settings. The battery positive and ignition 3 voltage circuits provide power to the control assembly.

Two integrated potentiometers control air temperature door position and blower motor speed. The integrated vacuum system controls the mode door position. The control assembly supports the following features:

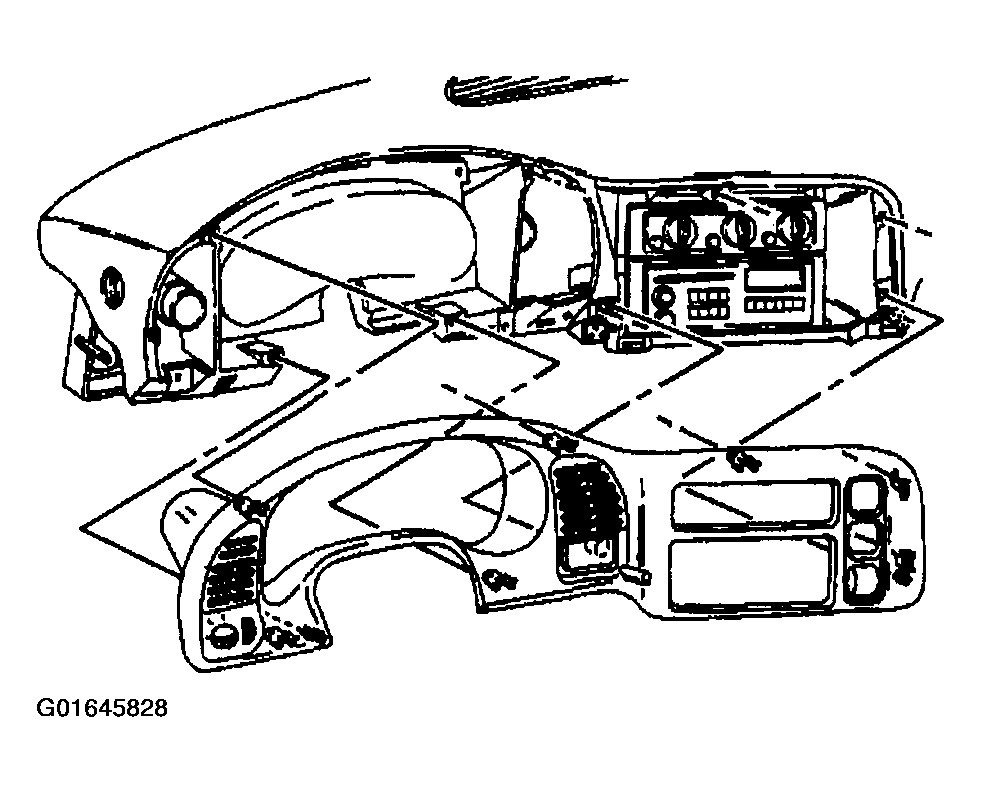

Fig 1: HVAC Control Module Features
G01645828Courtesy of GENERAL MOTORS CORP.
