HVAC Connector End Views

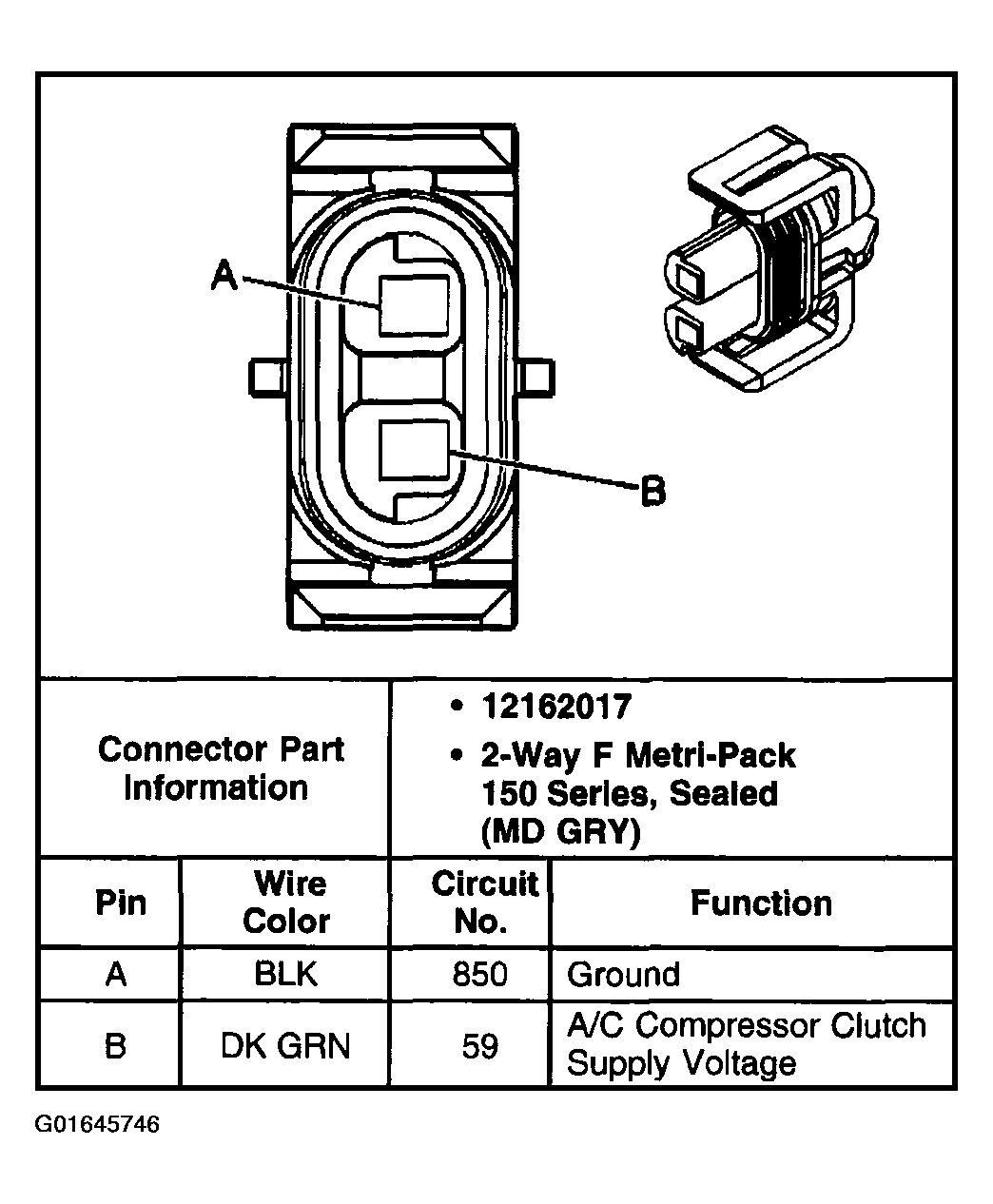

Fig 1: A/C Compressor Clutch

G01645746

Courtesy of GENERAL MOTORS CORP.

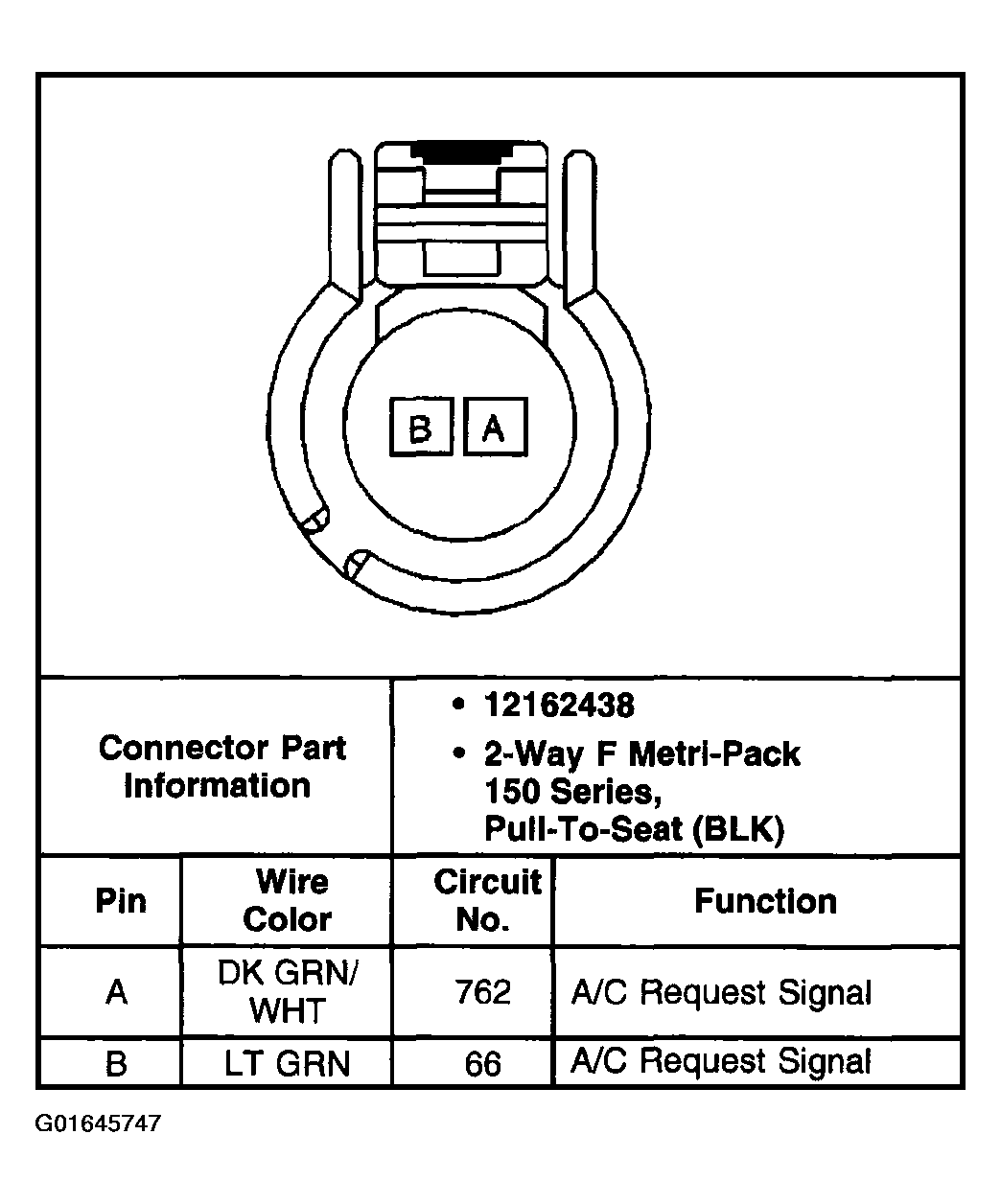

Fig 2: A/C High Pressure Switch

G01645747

Courtesy of GENERAL MOTORS CORP.

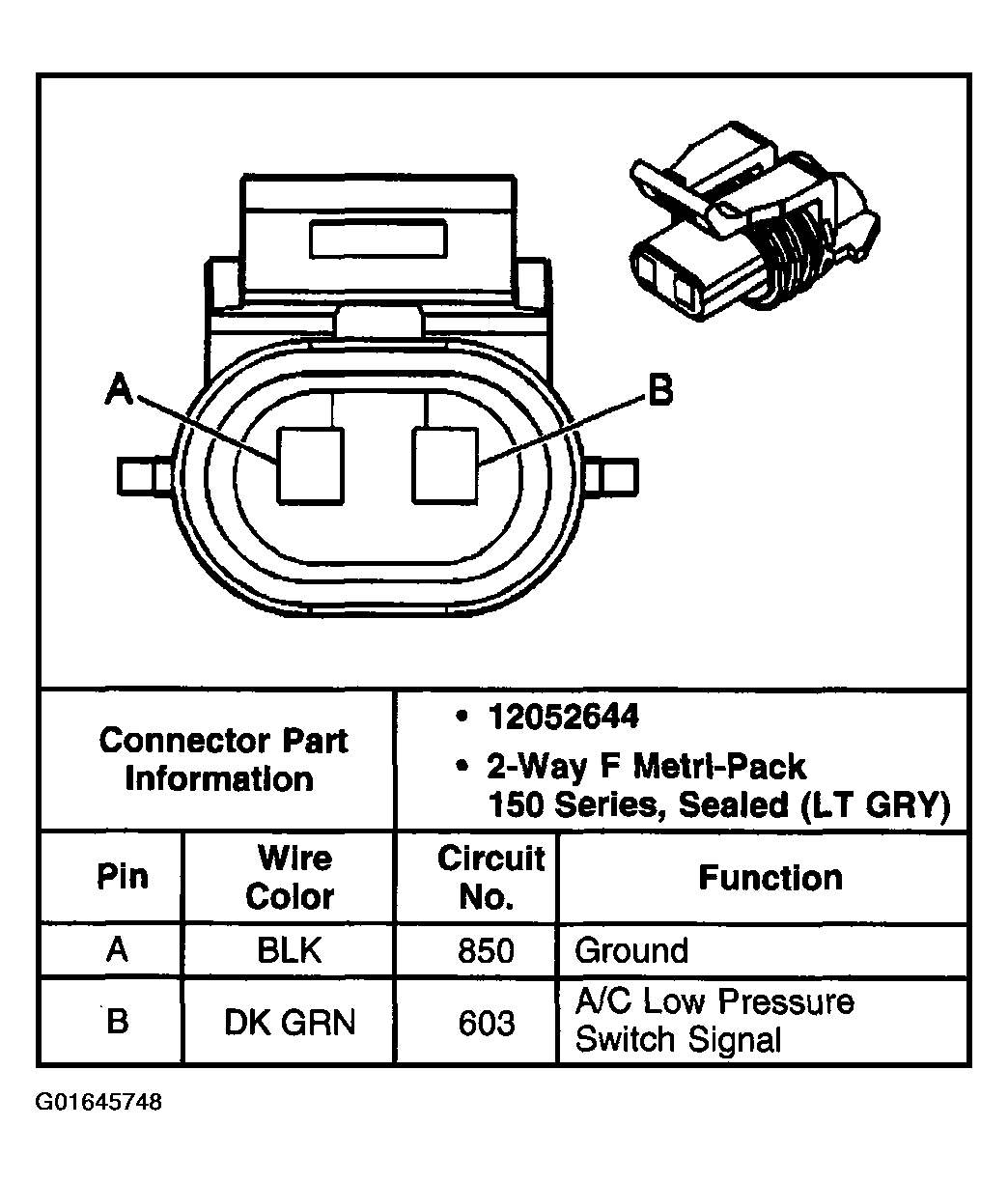

Fig 3: A/C Low Pressure Switch

G01645748

Courtesy of GENERAL MOTORS CORP.

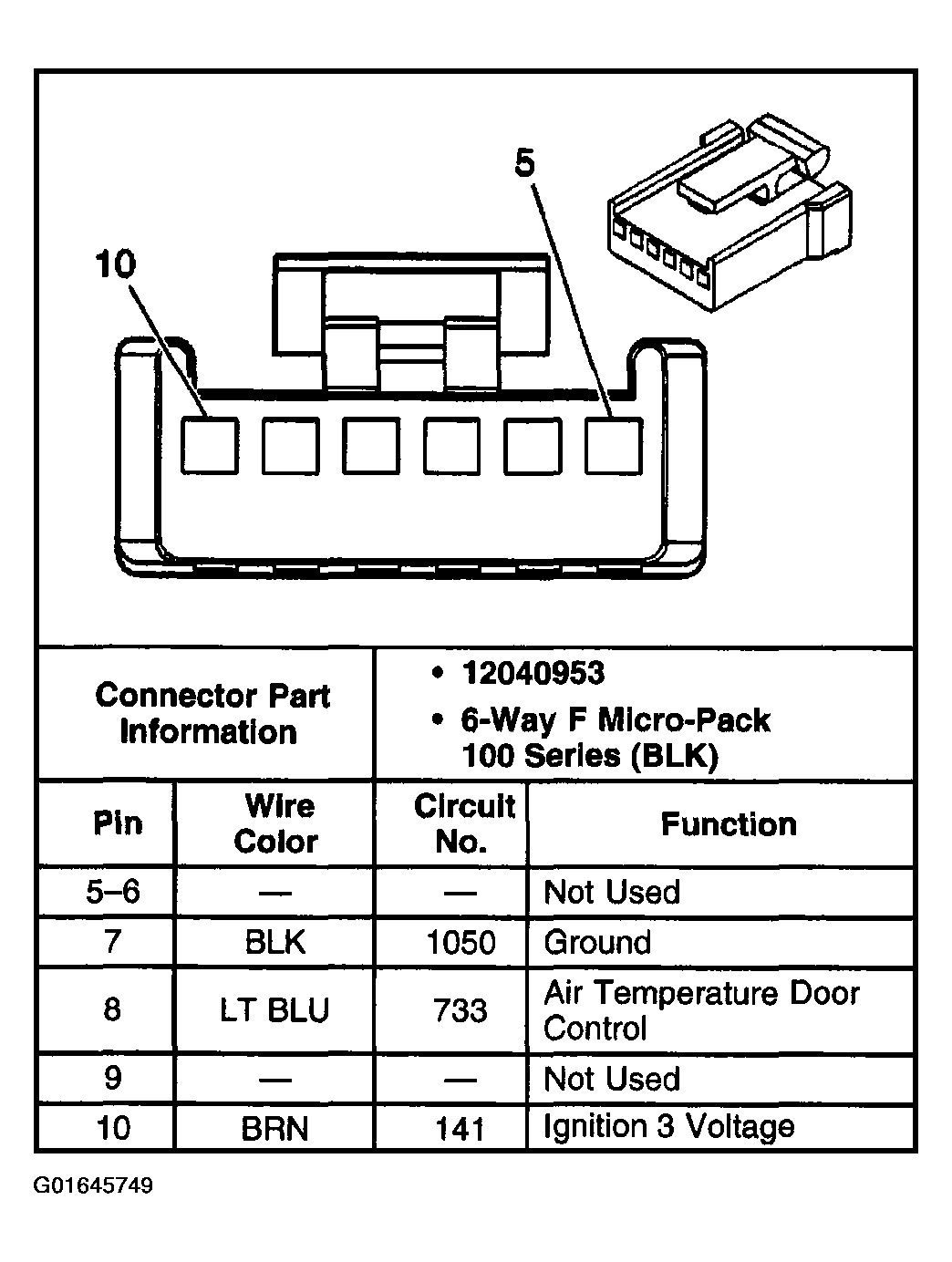

Fig 4: Air Temperature Actuator

G01645749

Courtesy of GENERAL MOTORS CORP.

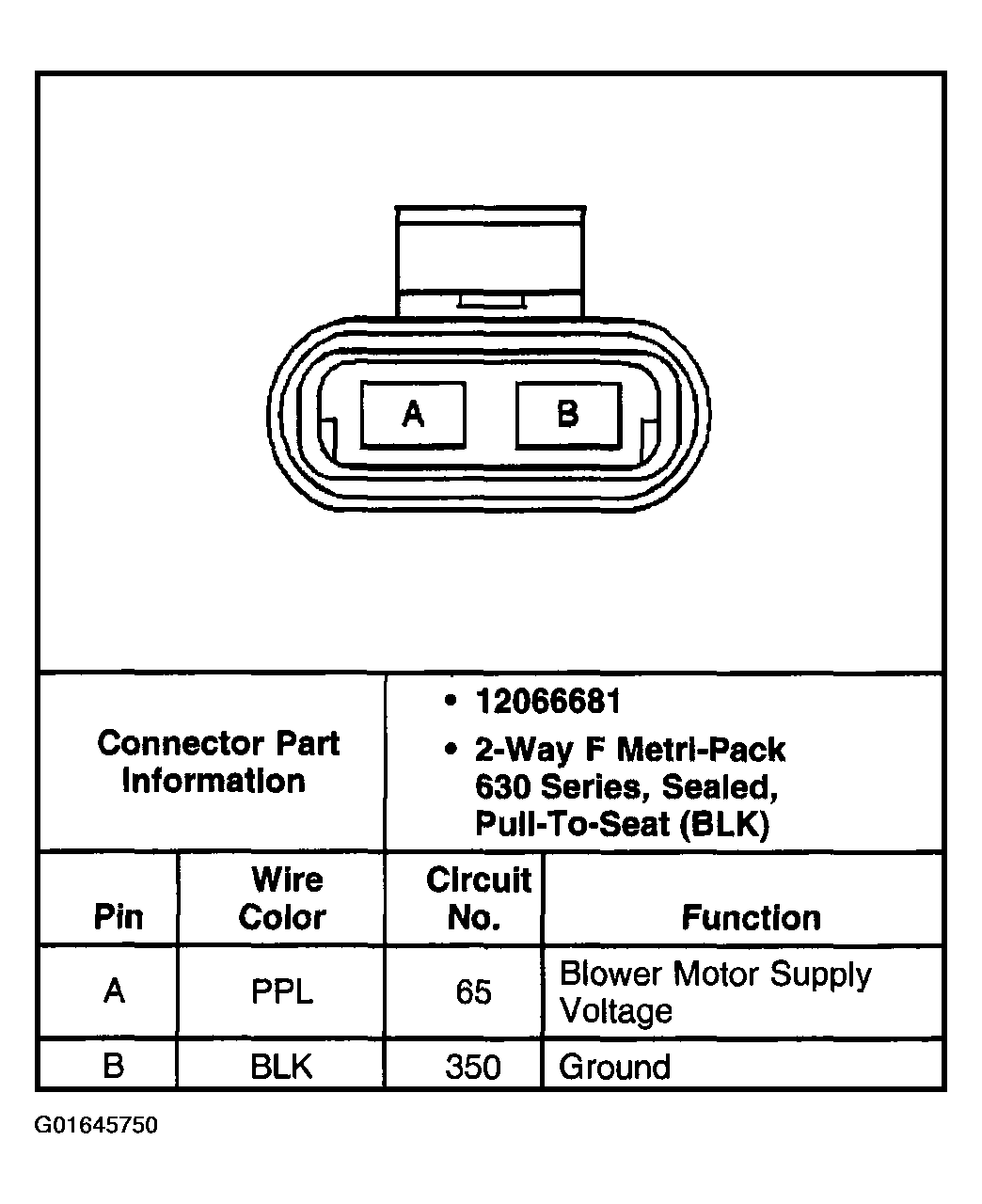

Fig 5: Blower Motor

G01645750

Courtesy of GENERAL MOTORS CORP.

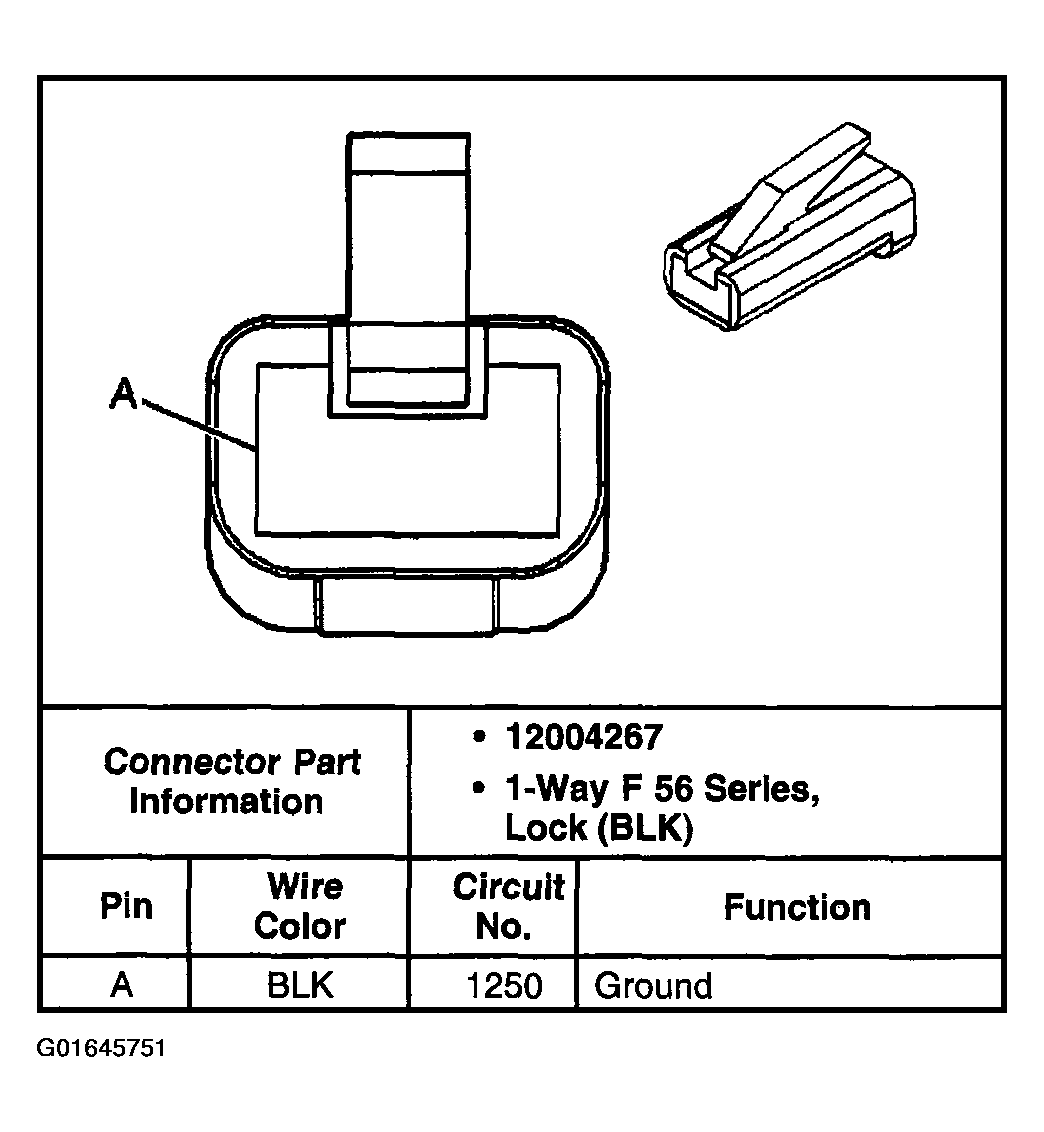

Fig 6: Blower Motor - A/C Auxiliary C1

G01645751

Courtesy of GENERAL MOTORS CORP.

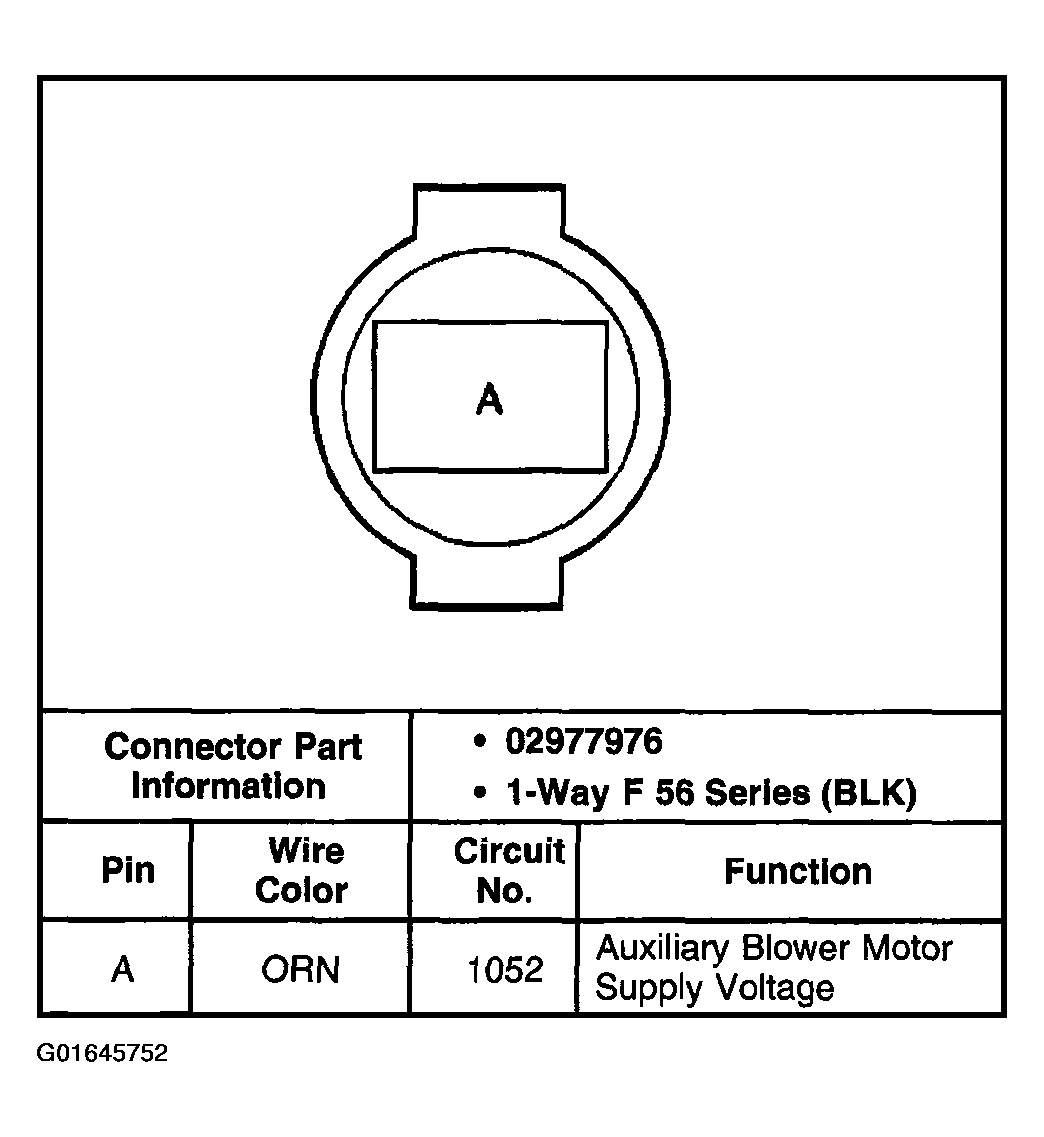

Fig 7: Blower Motor - A/C Auxiliary C2

G01645752

Courtesy of GENERAL MOTORS CORP.

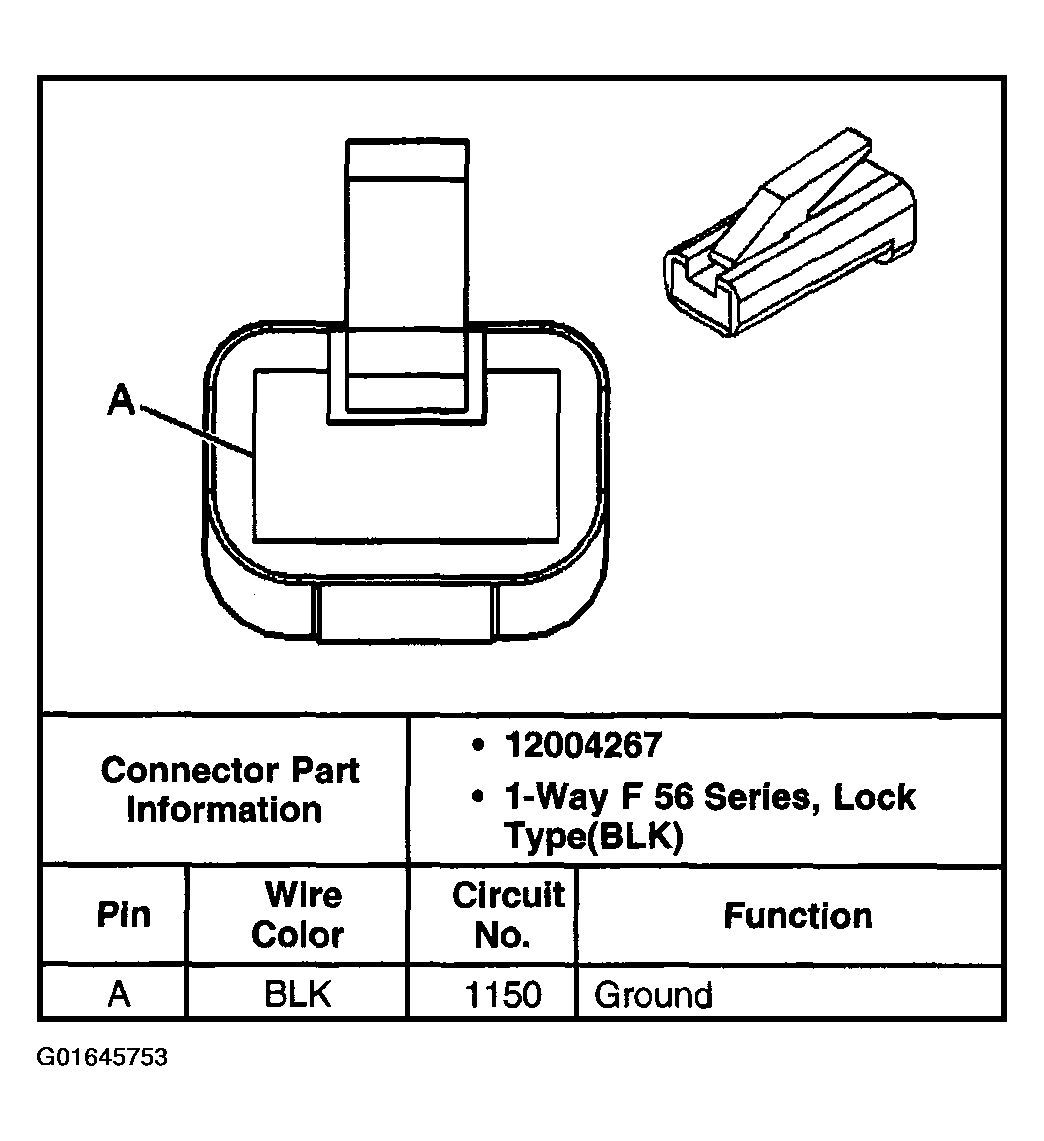

Fig 8: Blower Motor - Heater Auxiliary C1

G01645753

Courtesy of GENERAL MOTORS CORP.

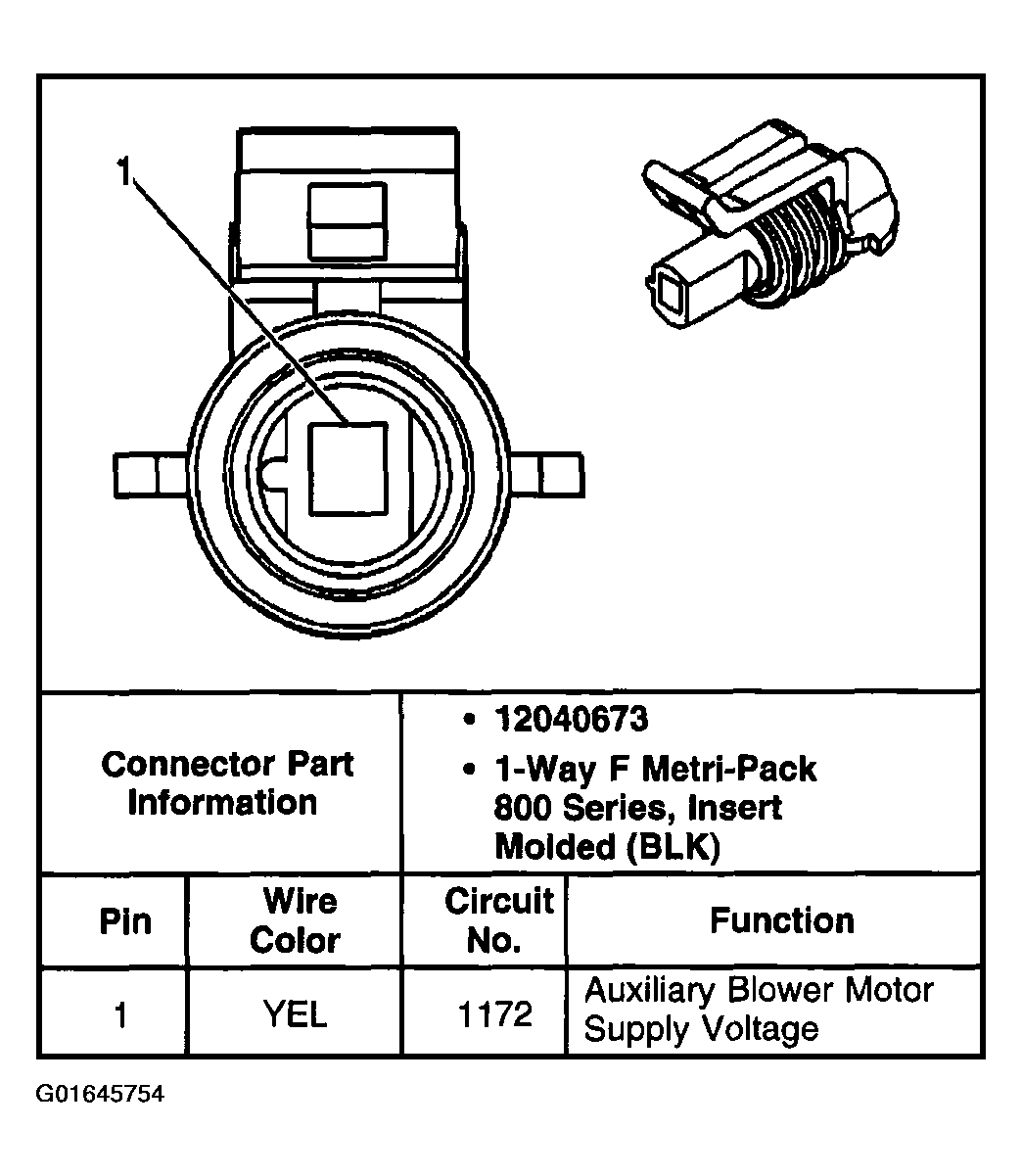

Fig 9: Blower Motor - Heater Auxiliary C2

G01645754

Courtesy of GENERAL MOTORS CORP.

Fig 10: Blower Motor Resistor - A/C Auxiliary

G01645755

Courtesy of GENERAL MOTORS CORP.

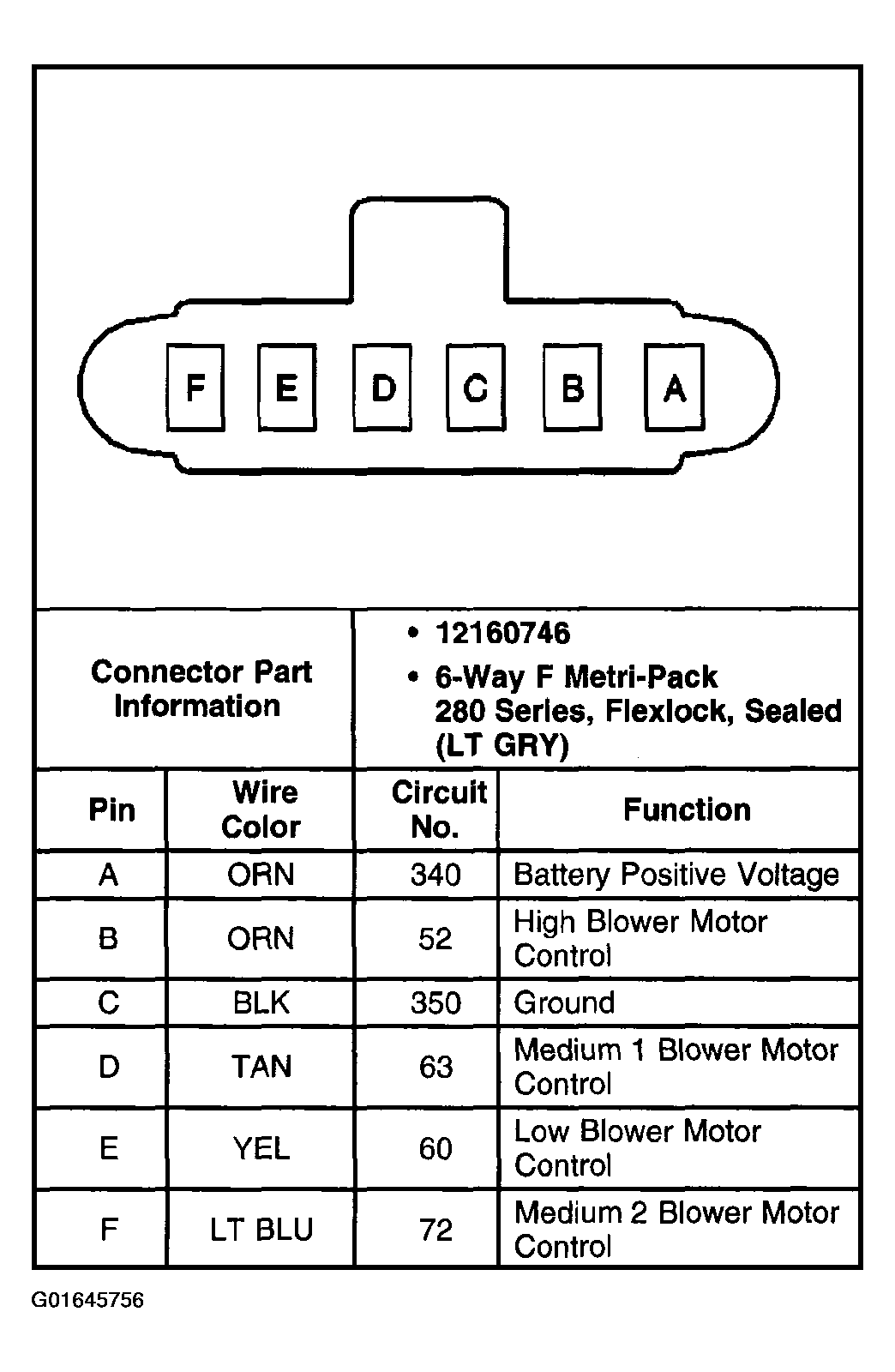

Fig 11: Blower Motor Resistor Assembly

G01645756

Courtesy of GENERAL MOTORS CORP.

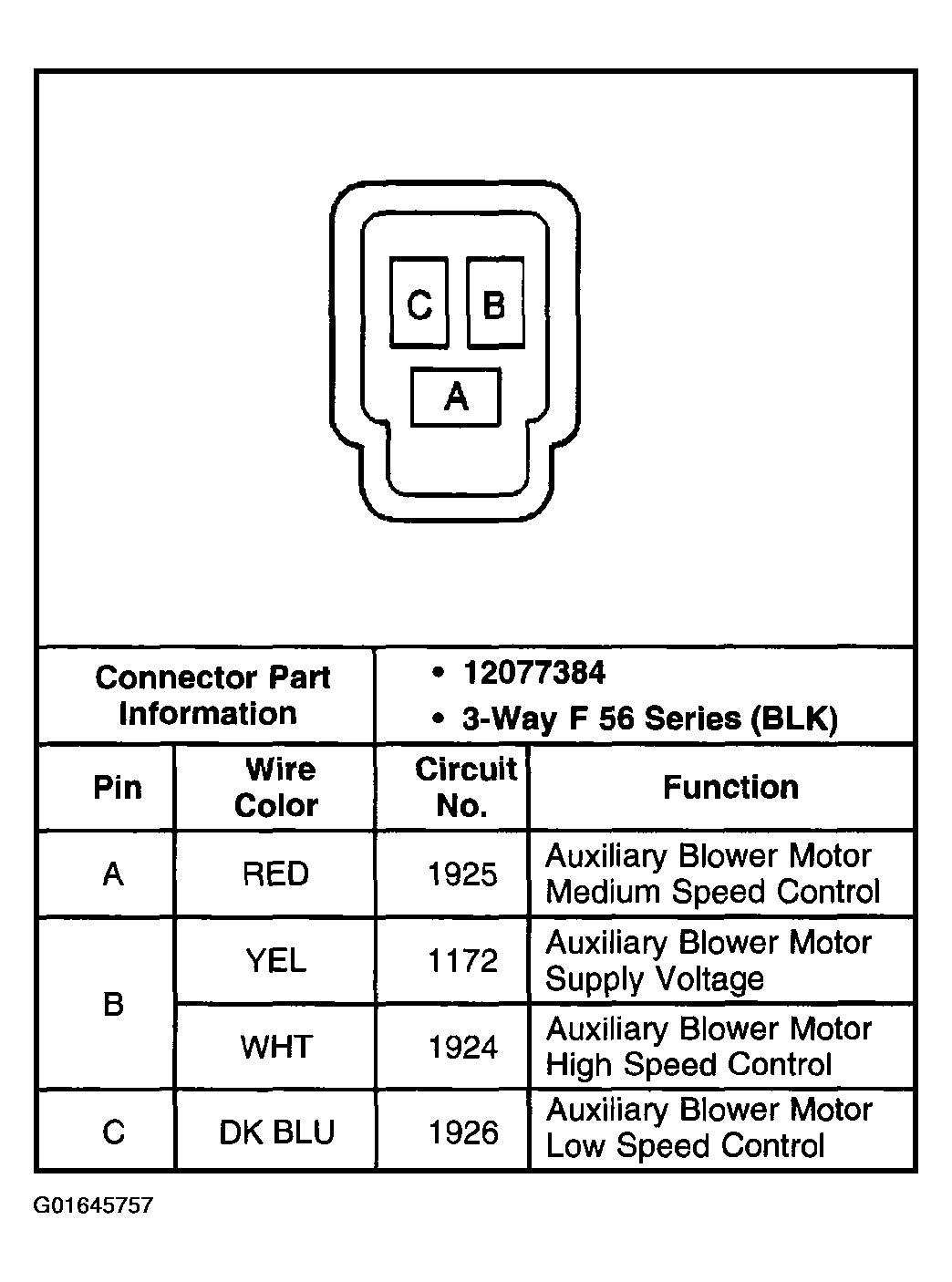

Fig 12: Blower Motor Resistor - Heater Auxiliary

G01645757

Courtesy of GENERAL MOTORS CORP.

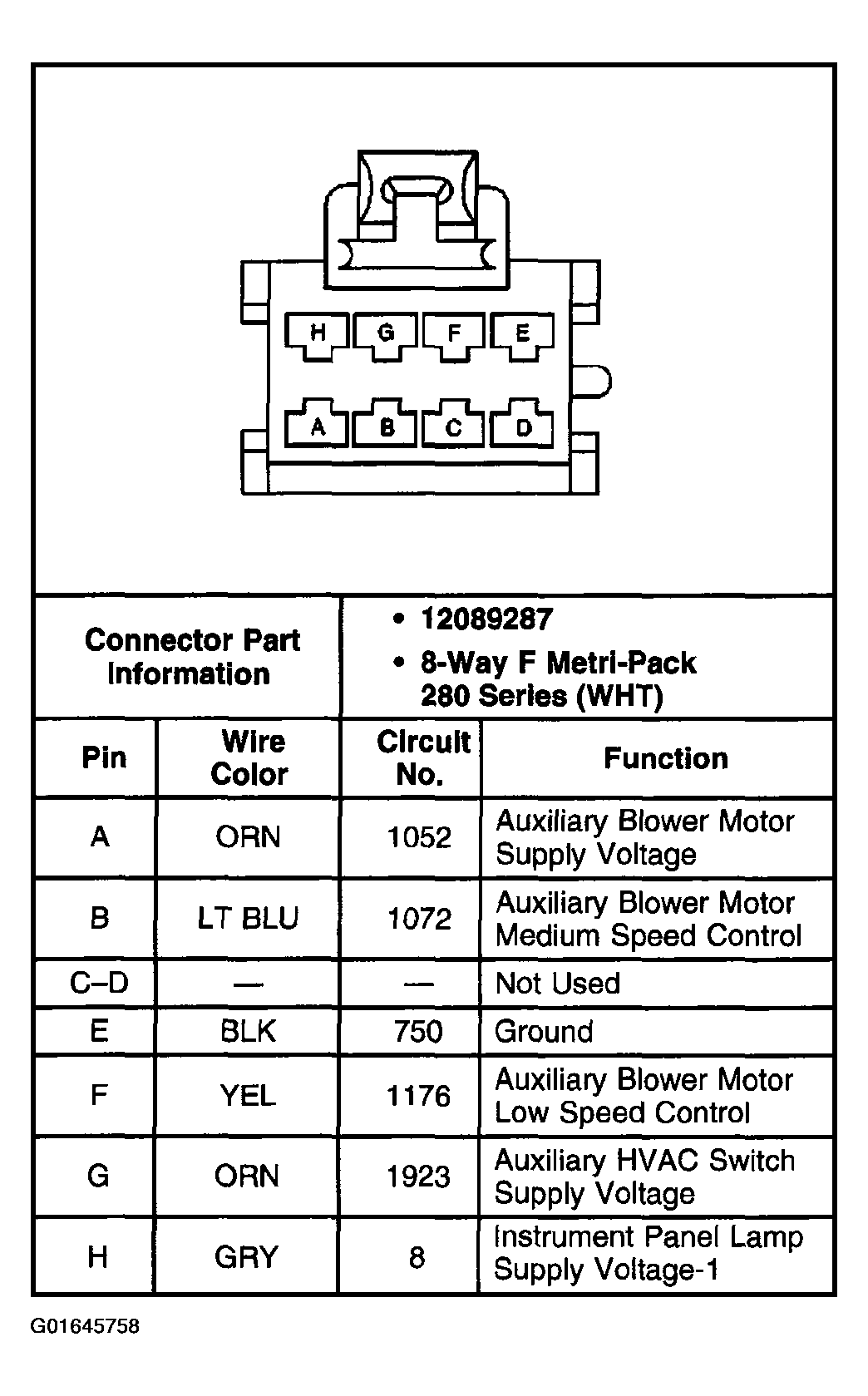

Fig 13: Blower Motor Switch - A/C Auxiliary

G01645758

Courtesy of GENERAL MOTORS CORP.

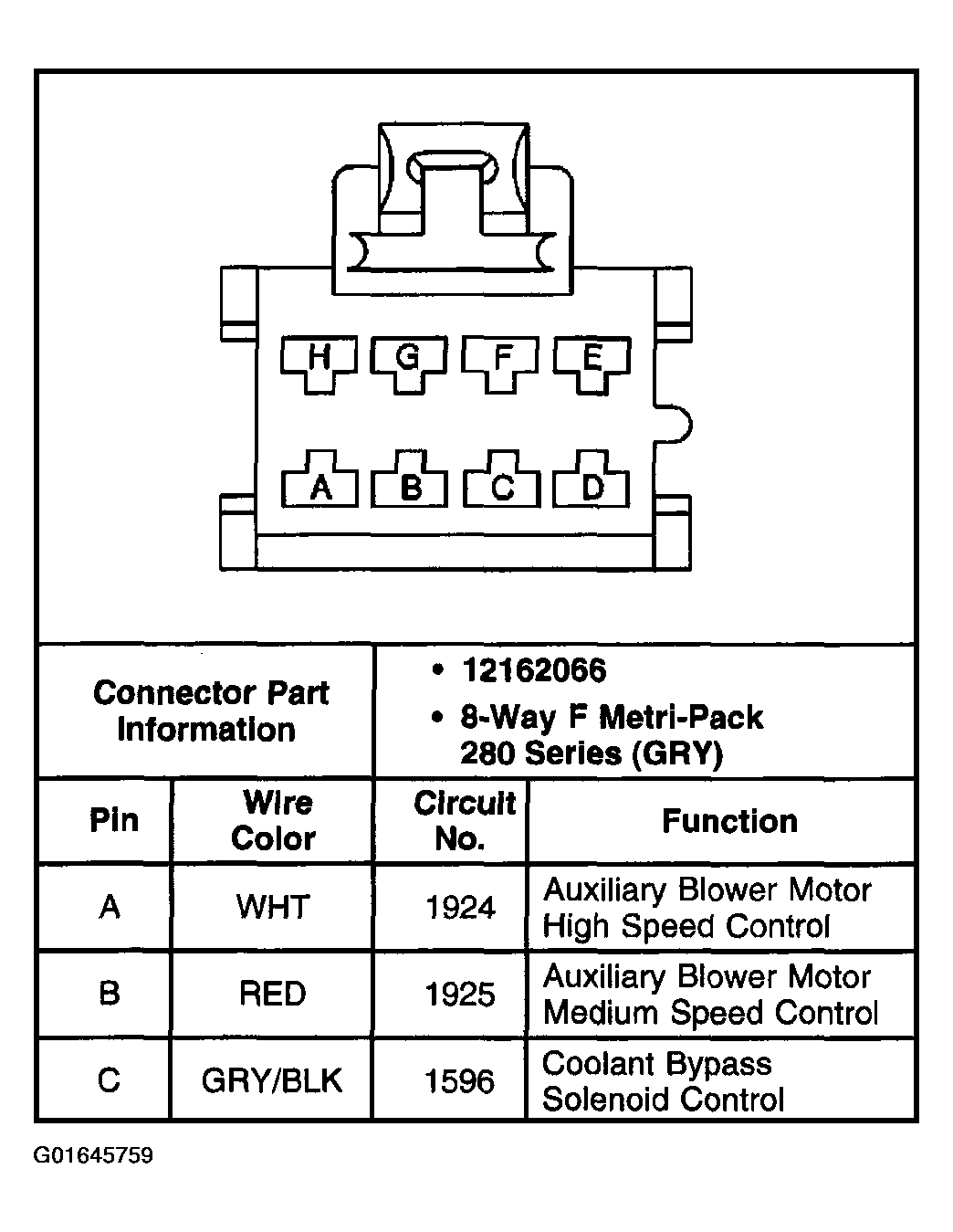

Fig 14: Blower Motor Switch - Heater Auxiliary (1 Of 2)

G01645759

Courtesy of GENERAL MOTORS CORP.

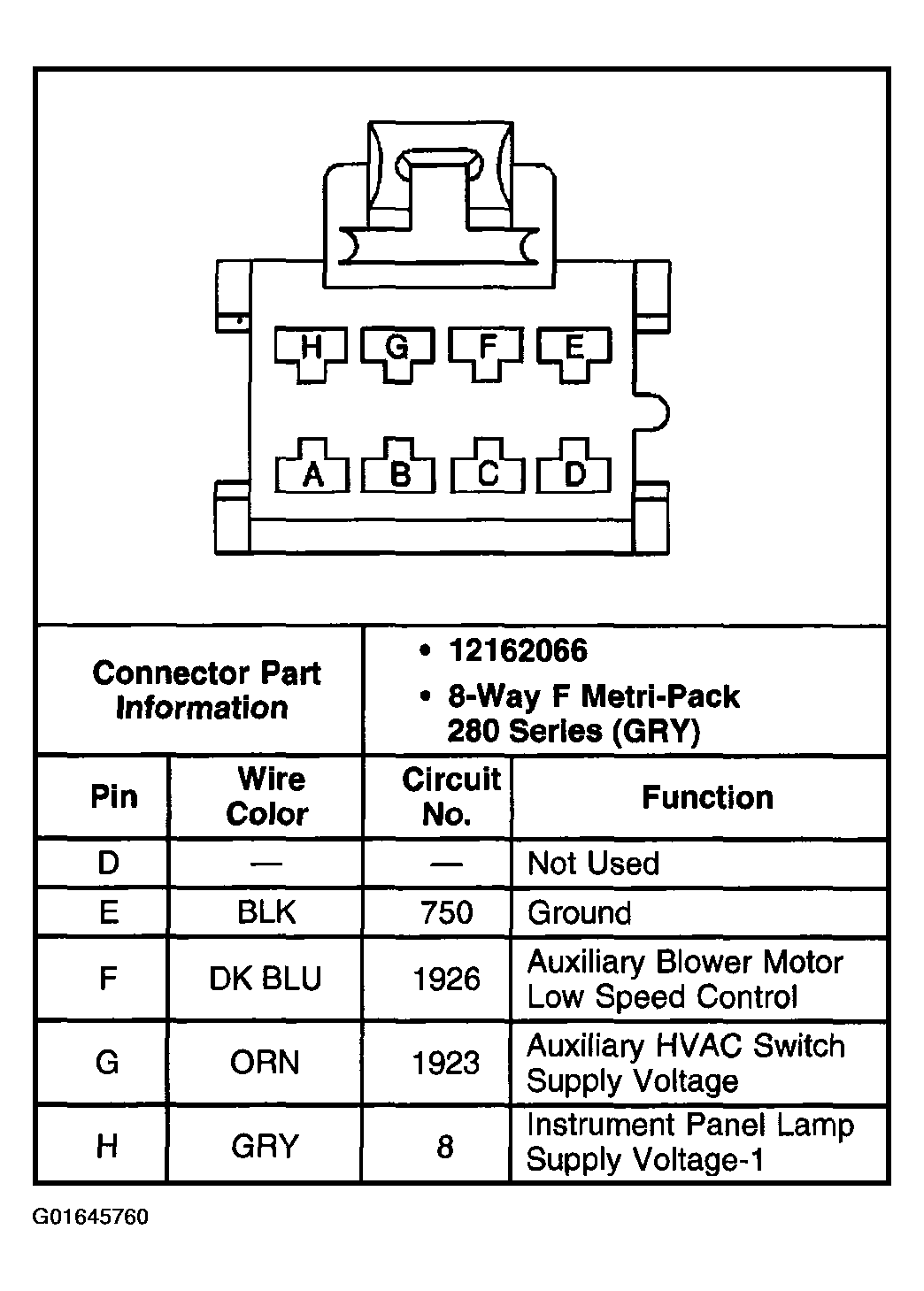

Fig 15: Blower Motor Switch - Heater Auxiliary (2 Of 2)

G01645760

Courtesy of GENERAL MOTORS CORP.

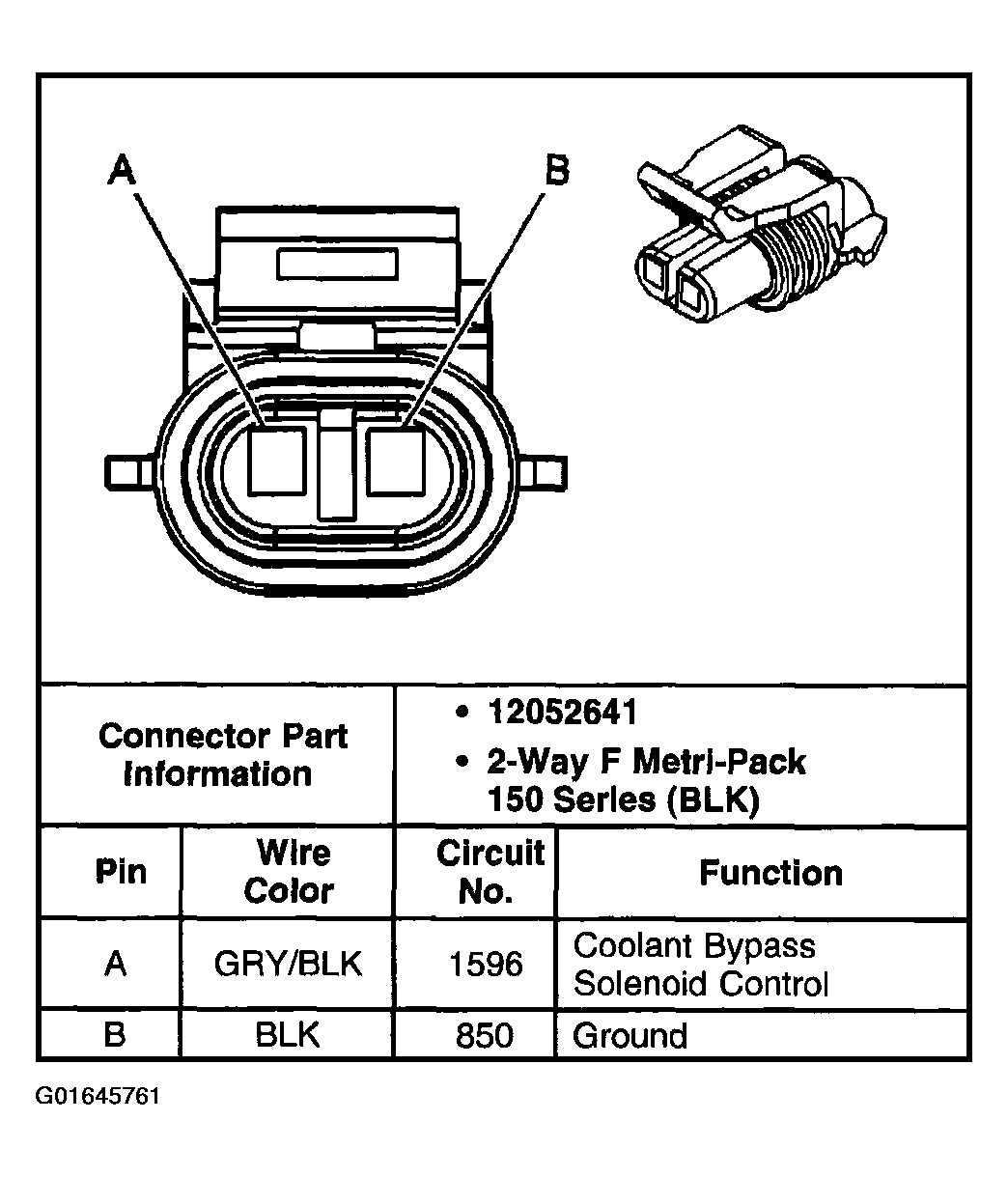

Fig 16: Coolant Bypass Valve Solenoid

G01645761

Courtesy of GENERAL MOTORS CORP.

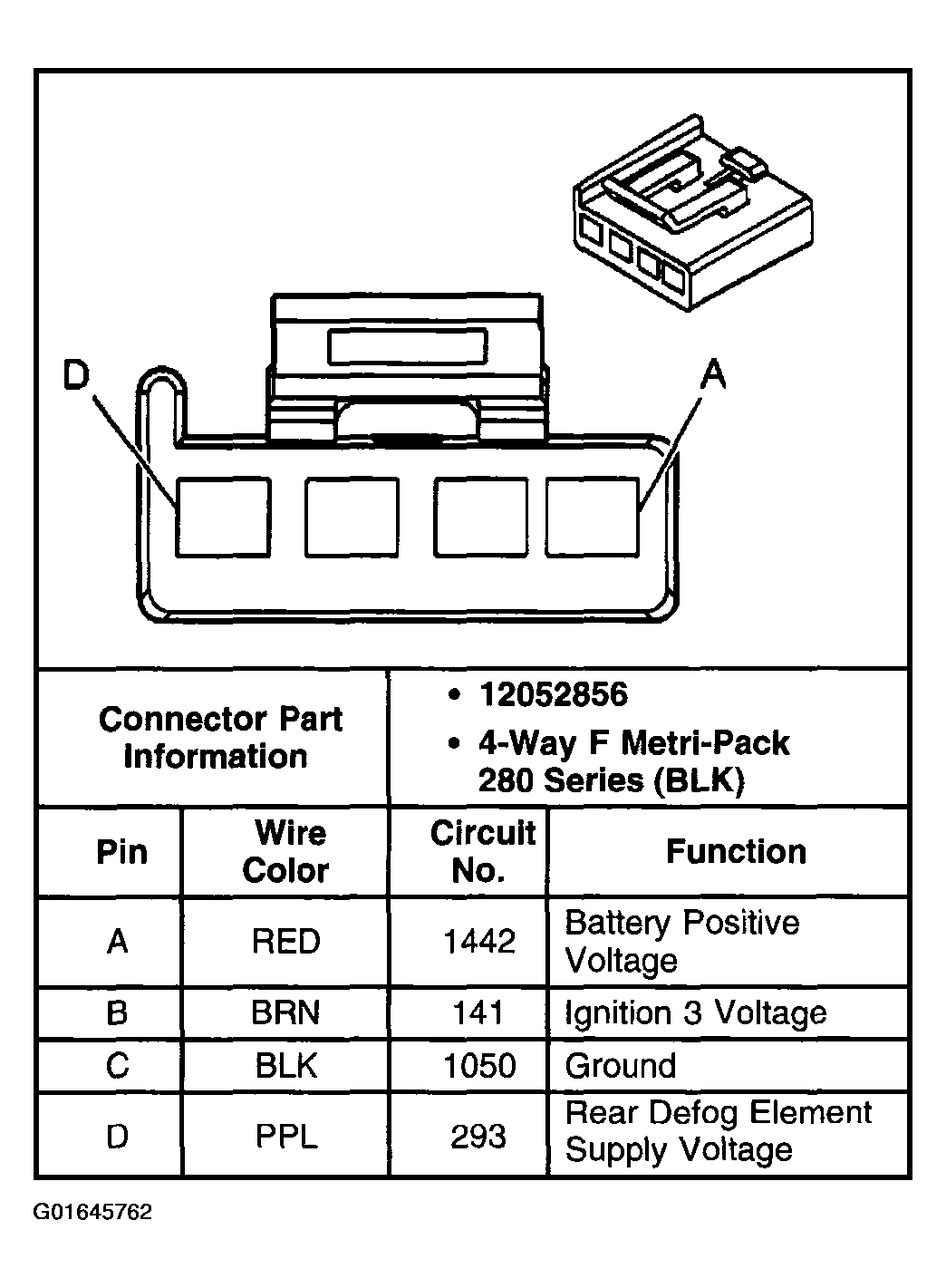

Fig 17: HVAC Control Assembly C1

G01645762

Courtesy of GENERAL MOTORS CORP.

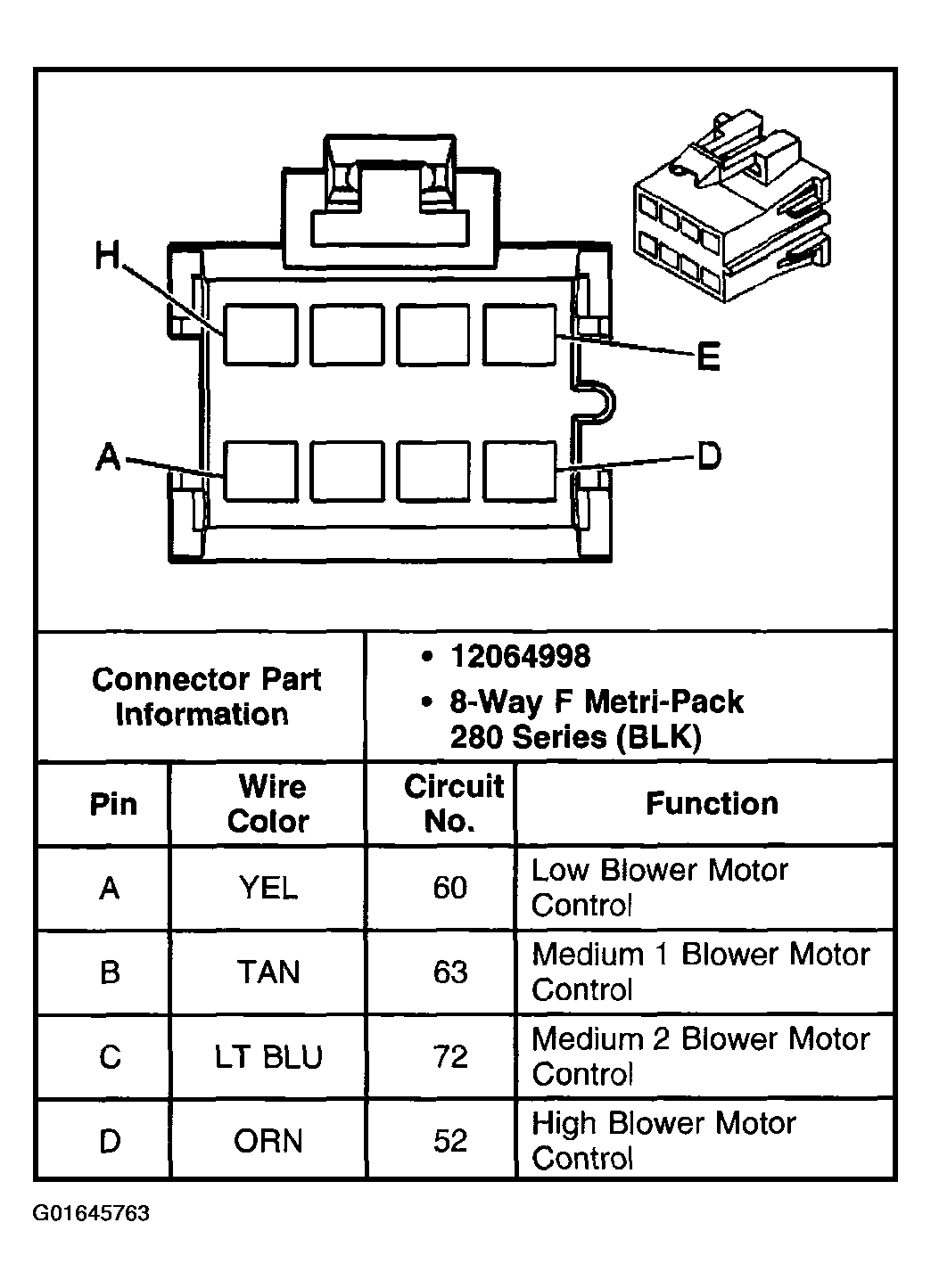

Fig 18: HVAC Control Assembly C2 (1 Of 2)

G01645763

Courtesy of GENERAL MOTORS CORP.

Fig 19: HVAC Control Assembly C2 (2 Of 2)

G01645764

Courtesy of GENERAL MOTORS CORP.

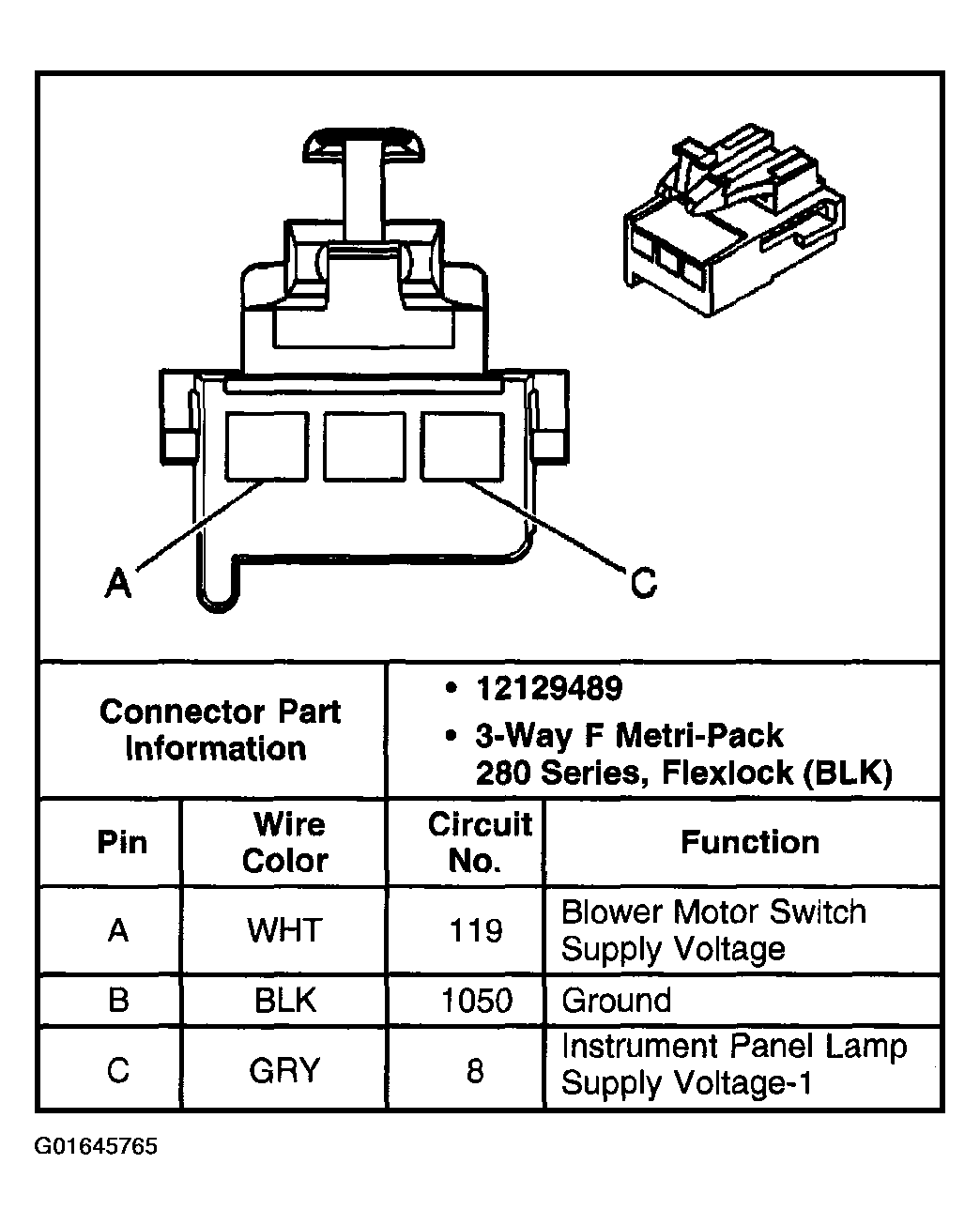

Fig 20: HVAC Control Assembly C3

G01645765

Courtesy of GENERAL MOTORS CORP.
