HVAC Components Views

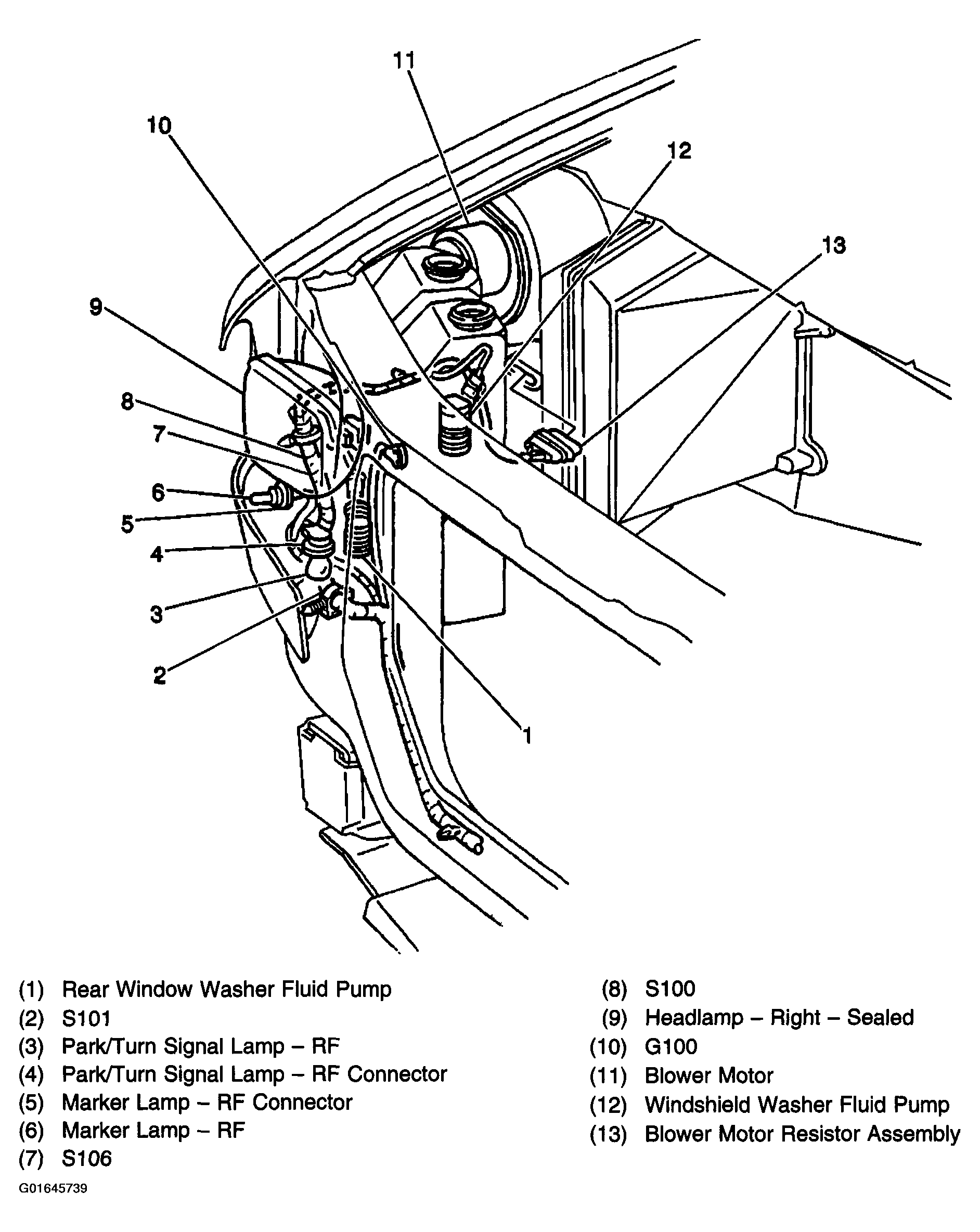

Fig 1: Forward Lamp Harness (Right Side)

G01645739

Courtesy of GENERAL MOTORS CORP.

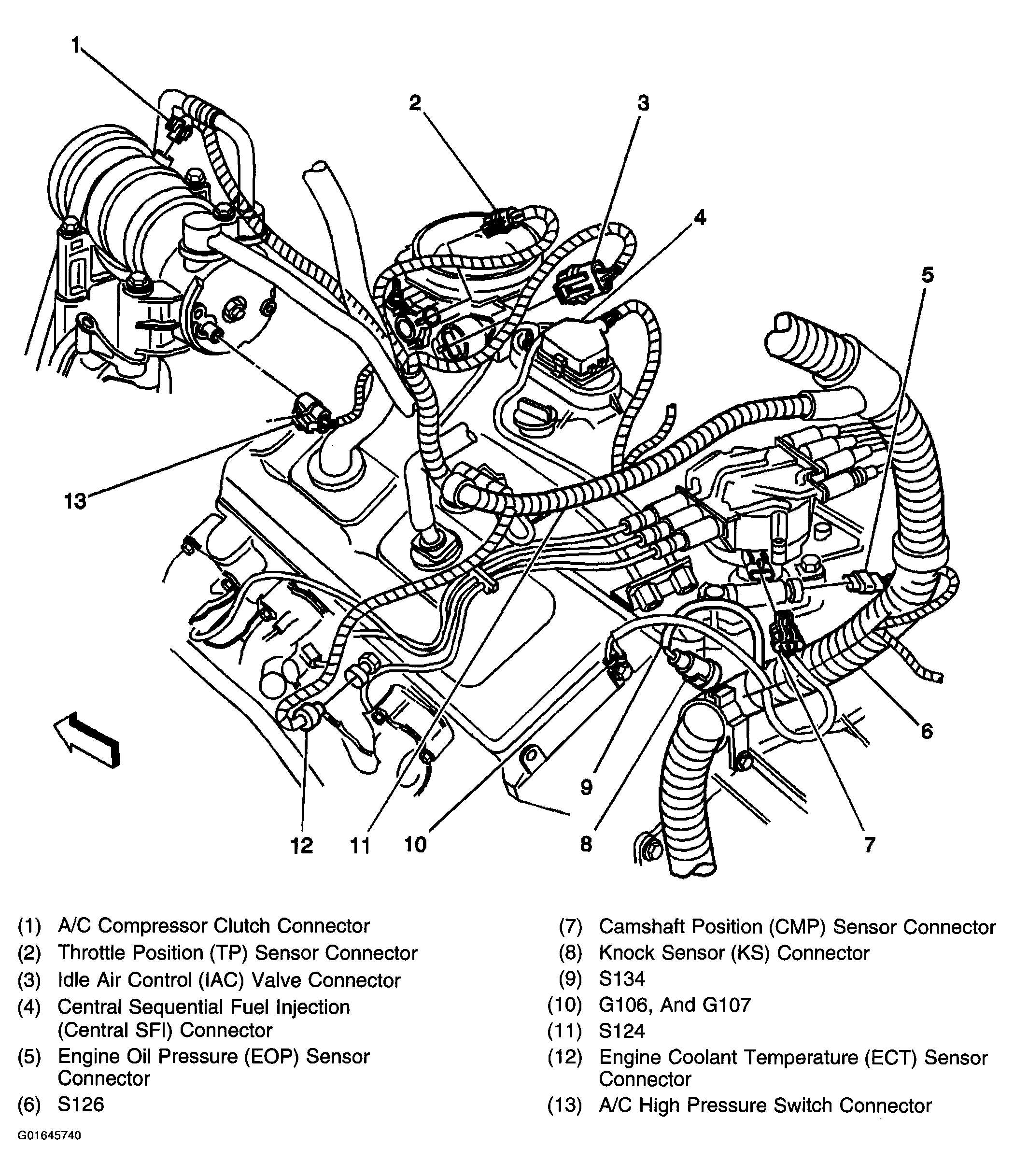

Fig 2: Engine Component Location (Rear)

G01645740

Courtesy of GENERAL MOTORS CORP.

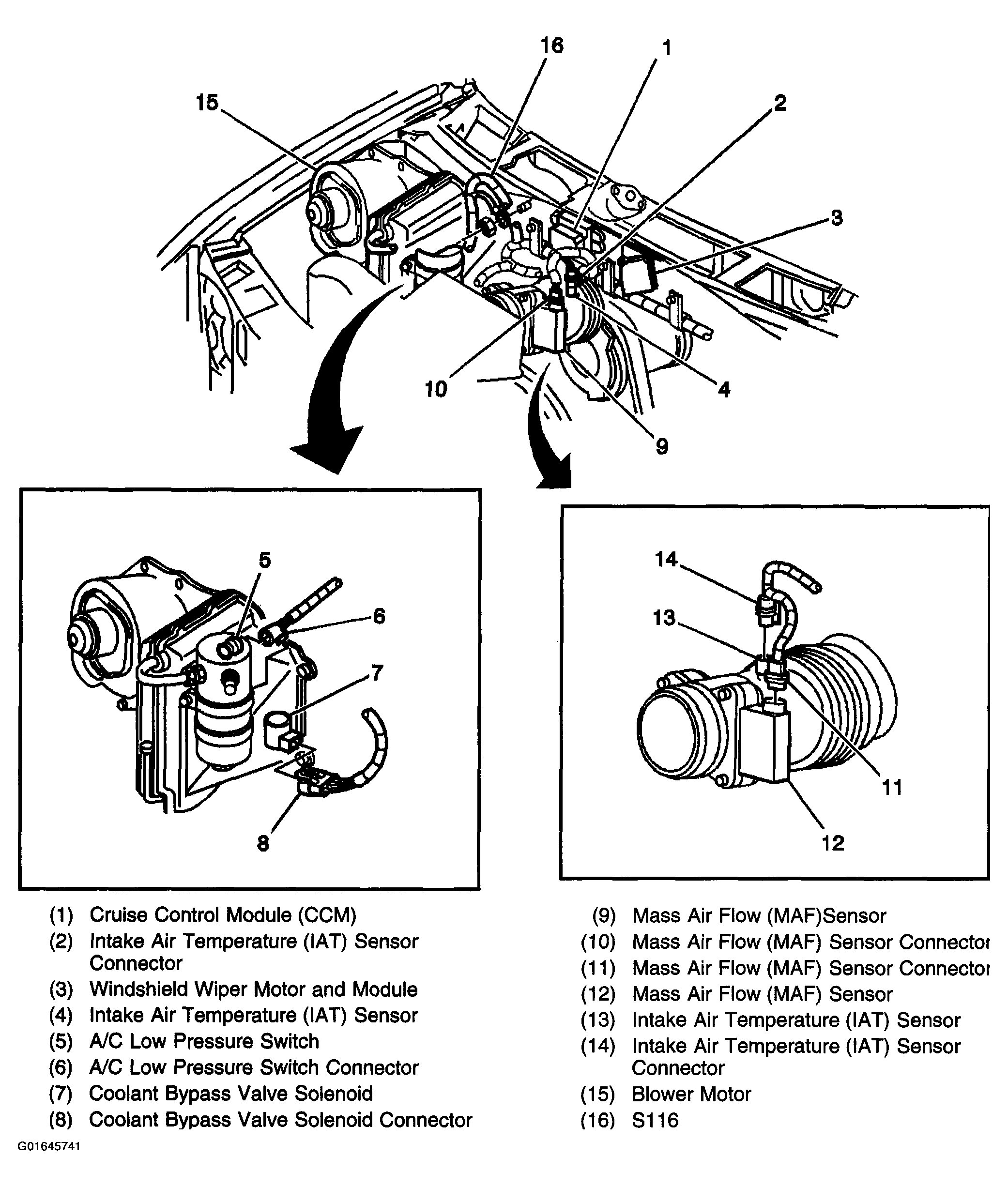

Fig 3: Engine/Center Of Front Dash Wiring

G01645741

Courtesy of GENERAL MOTORS CORP.

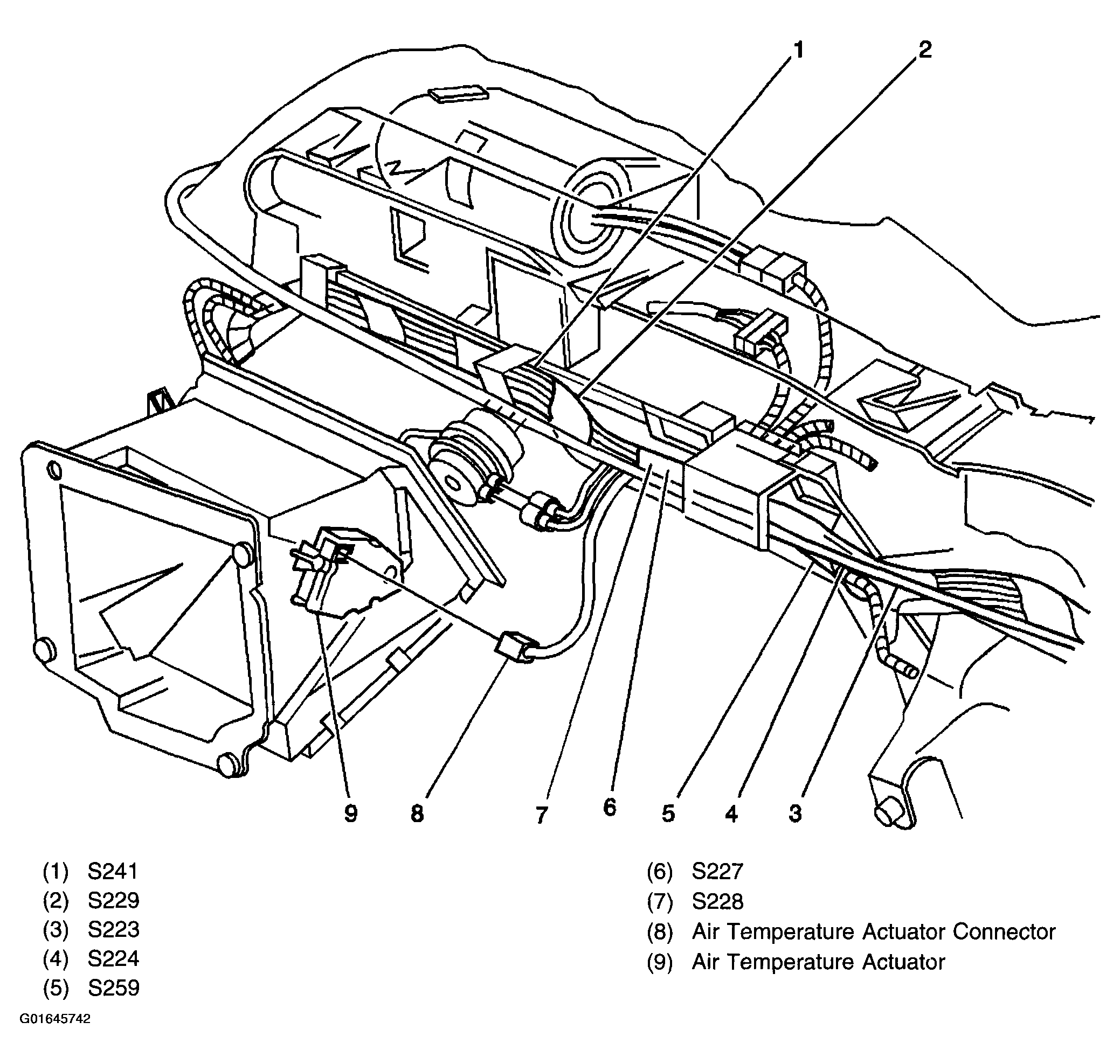

Fig 4: IP Wiring (Right Side)

G01645742

Courtesy of GENERAL MOTORS CORP.

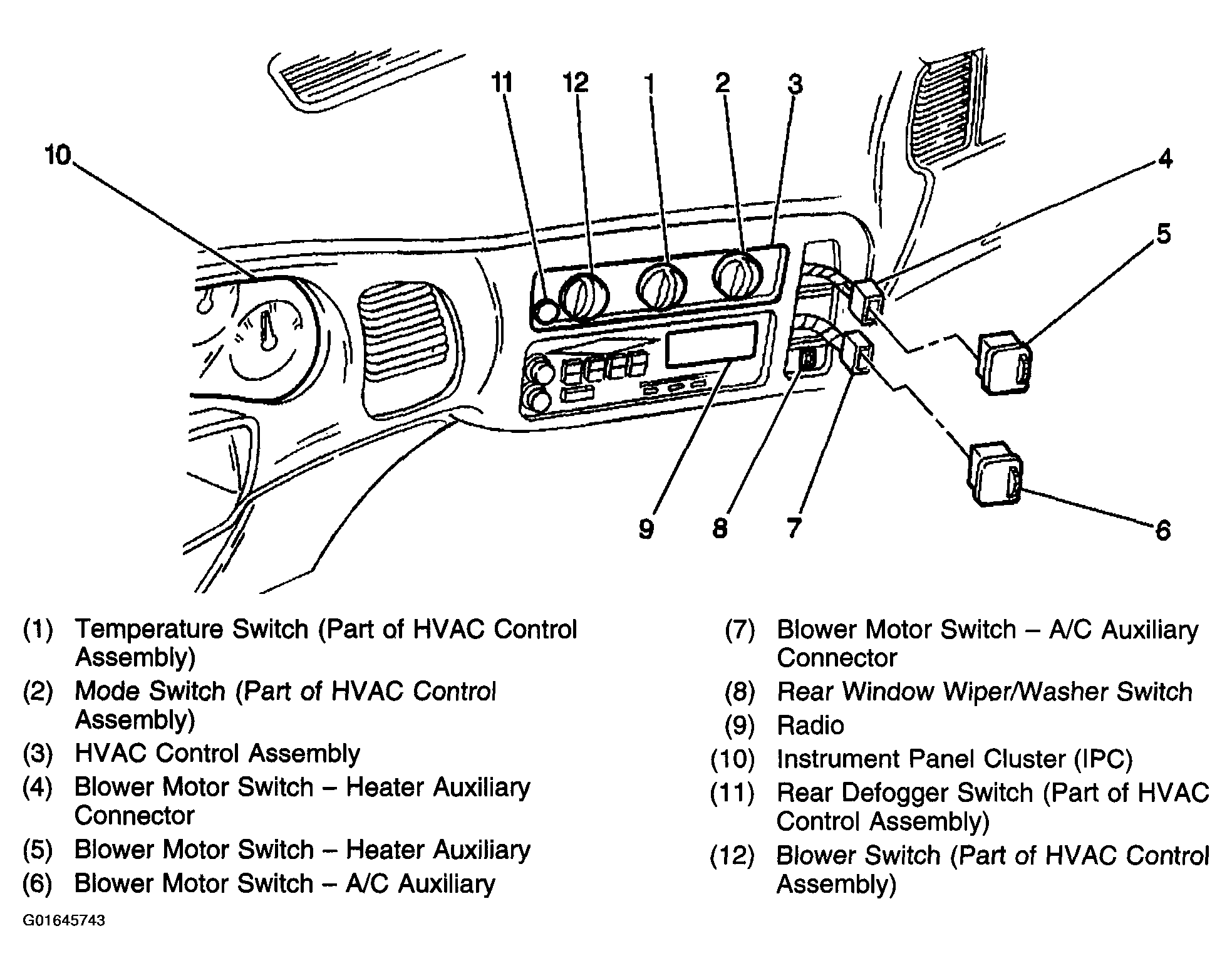

Fig 5: HVAC Panel Wiring

G01645743

Courtesy of GENERAL MOTORS CORP.

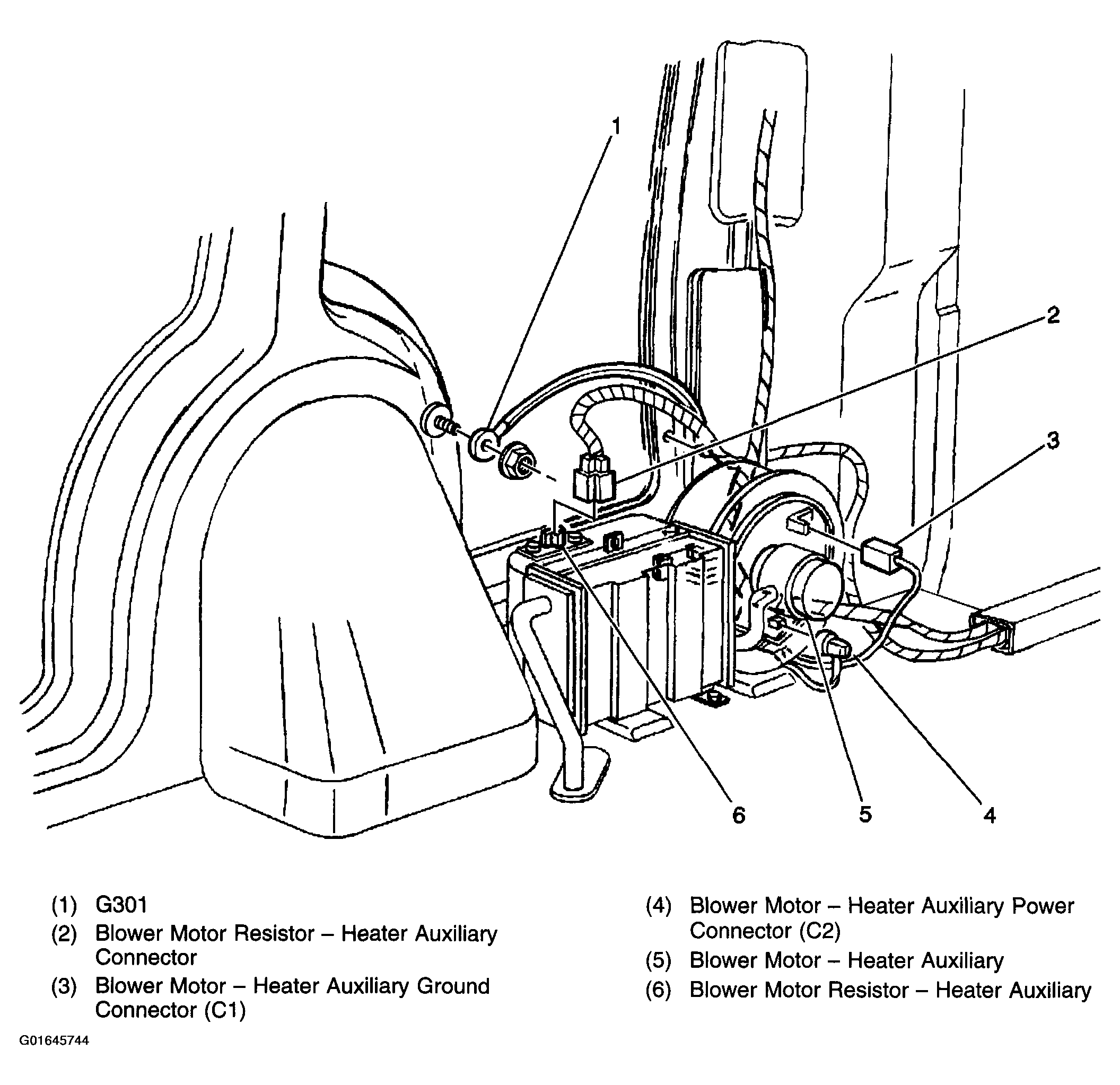

Fig 6: Rear Heater Wiring

G01645744

Courtesy of GENERAL MOTORS CORP.

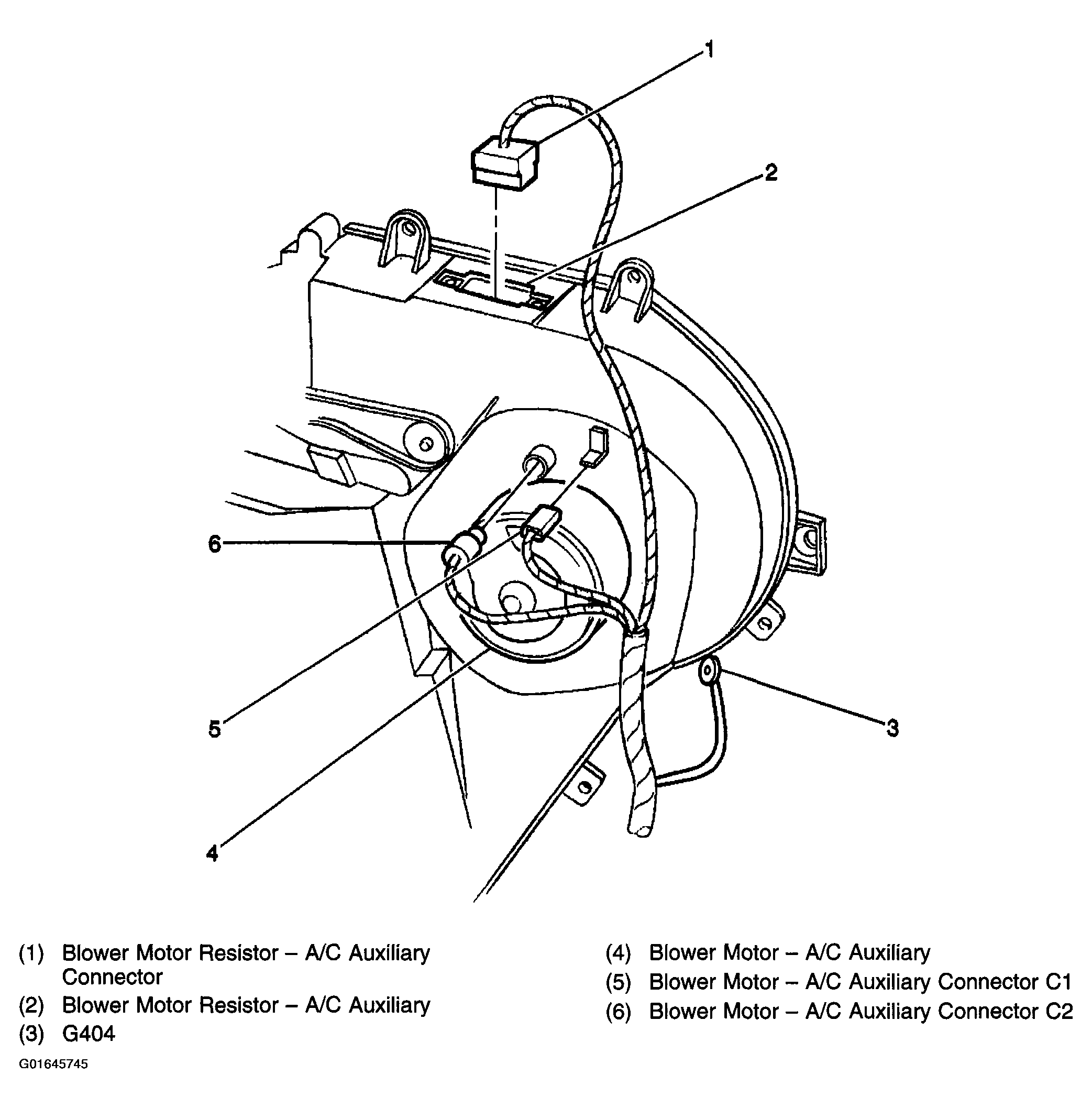

Fig 7: A/C Wiring Rear

G01645745

Courtesy of GENERAL MOTORS CORP.
