Tire and Wheel Runout Specifications

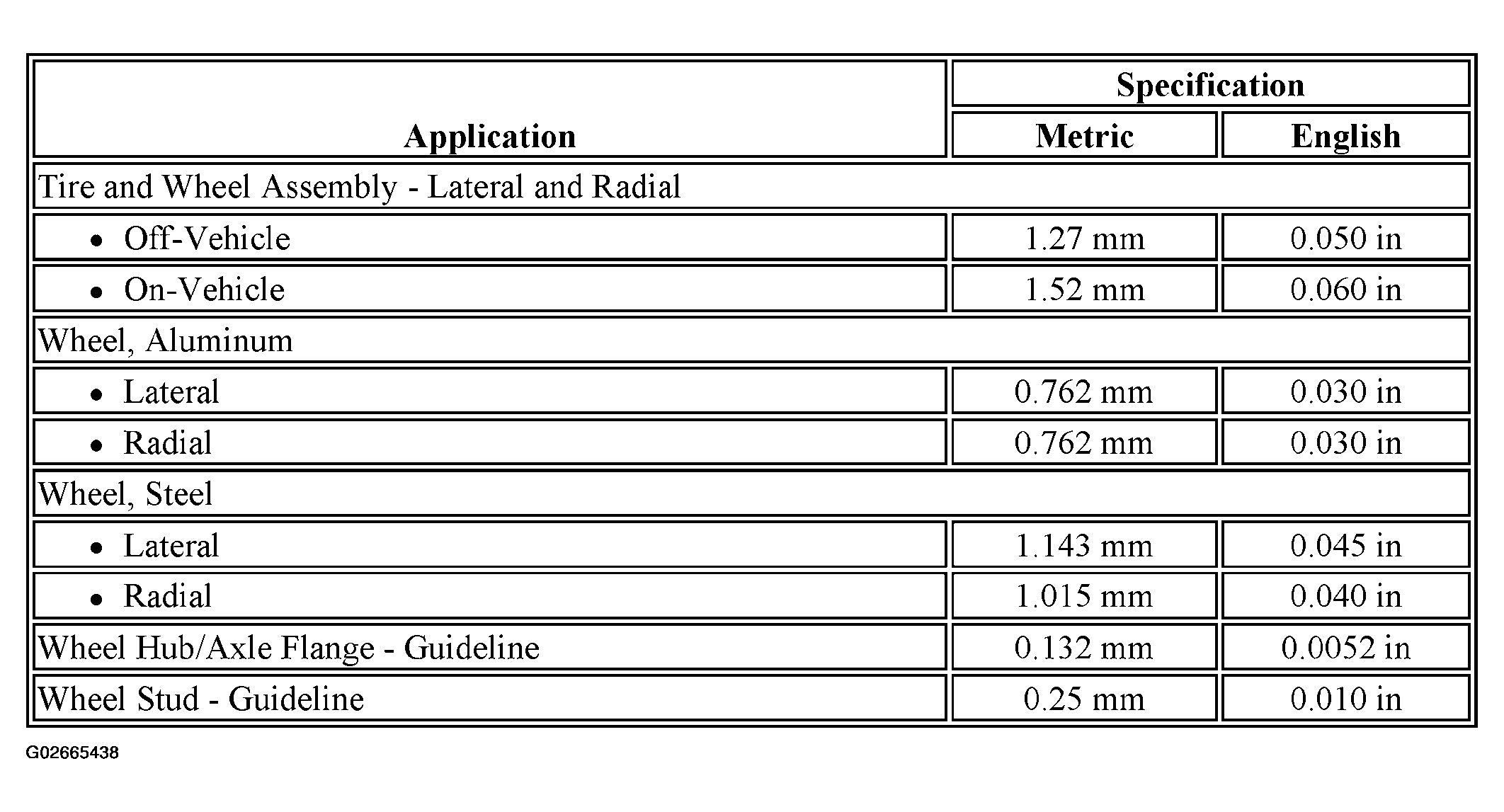

Fig 1: Tire And Wheel Runout Specification Table - 2WD

G02665438

Courtesy of GENERAL MOTORS CORP.
