Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil fill tube bolts.

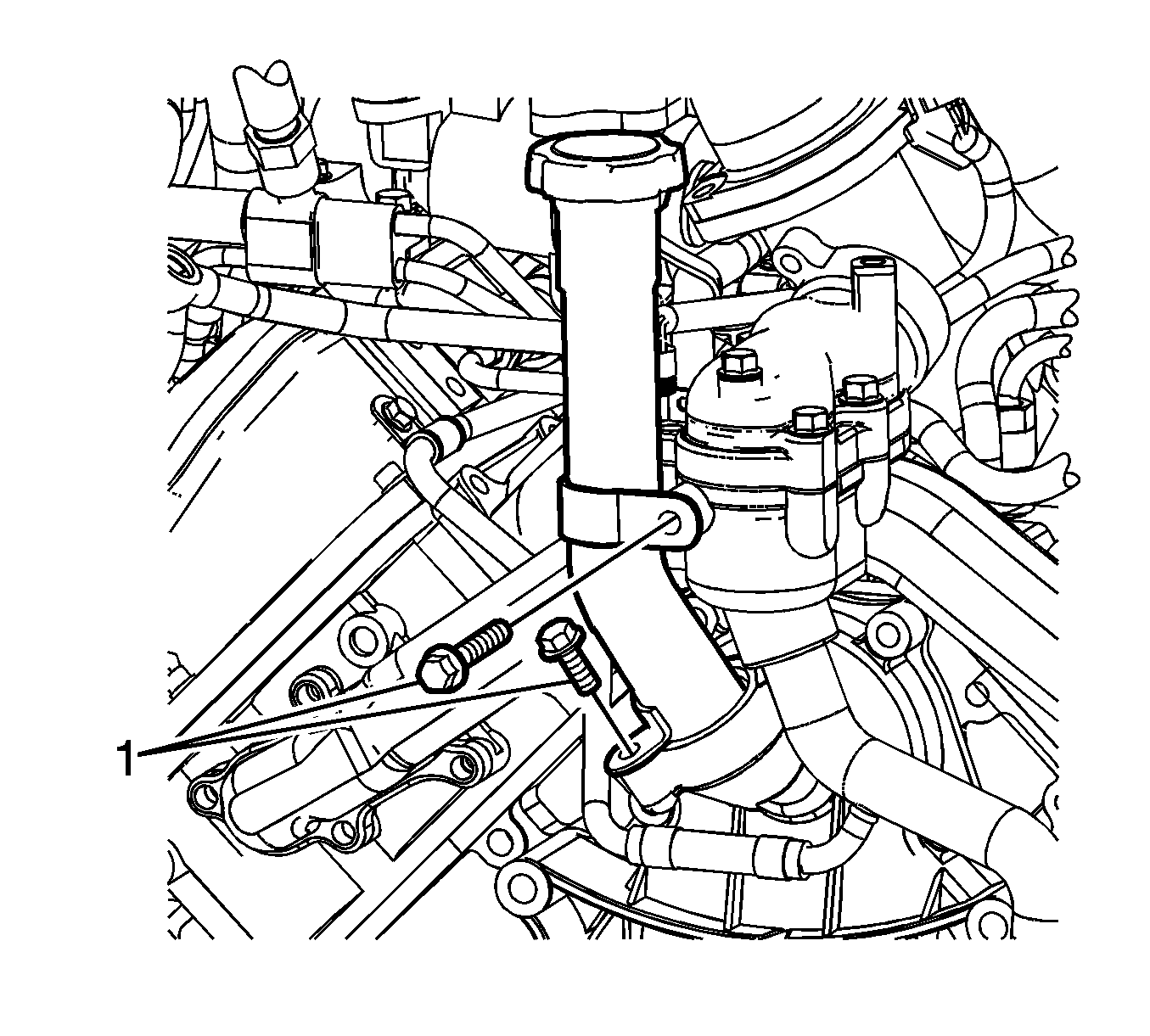

    2. Fig 1: View Of Oil Filler Tube Bolts
    GM1335397Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil fill tube.
  3. Remove and discard the oil fill tube O-ring seal.

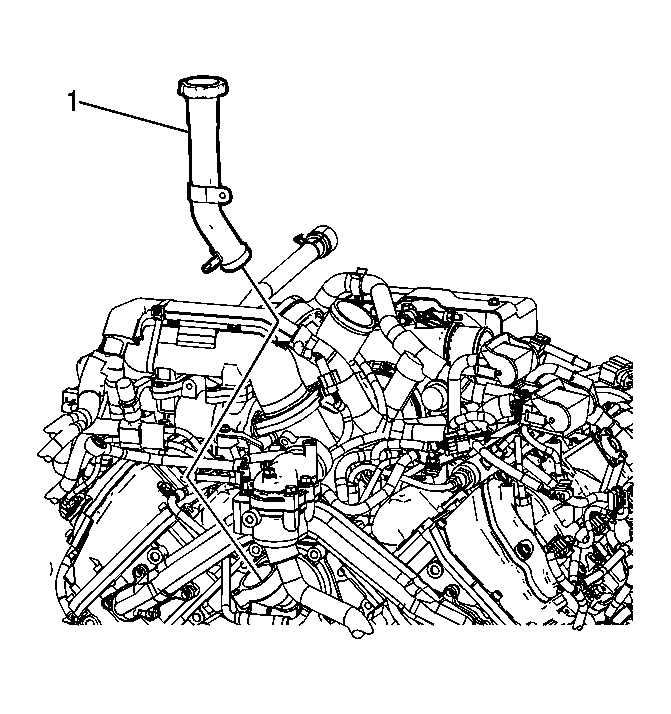

    4. Fig 2: View Of Oil Filler Tube
    GM1335401Courtesy of GENERAL MOTORS CORP.
