Oil Pan Removal

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan bolts and nuts.

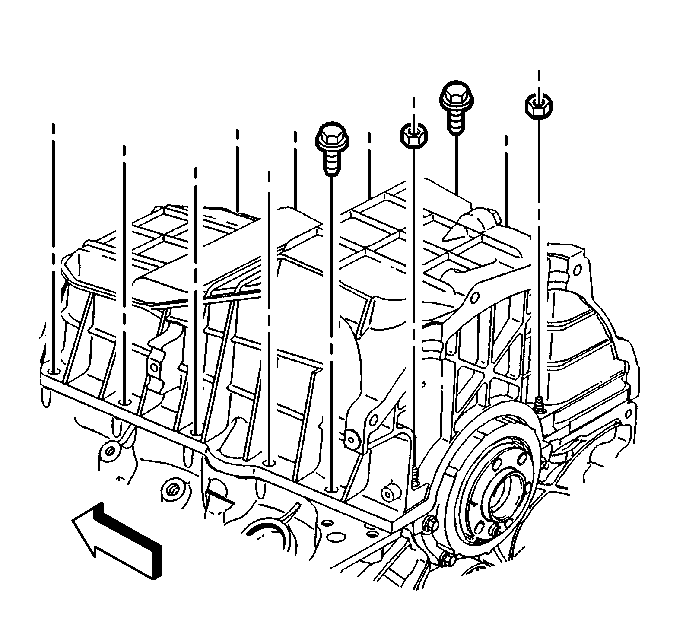

    2. Fig 1: Removing Oil Pan Bolts & Nuts
    GM330559Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil pan.
    3. Fig 2: Removing Oil Pan
    GM330568Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pan gasket.
    4. Fig 3: View Of Oil Pan Gasket
    GM387757Courtesy of GENERAL MOTORS CORP.
  4. Discard the oil pan gasket.
