Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recirculation door (1) to the recirculation housing (2).
    Fig 1: Recirculation Door And Recirculation Housing (Visteon)
    GM826726Courtesy of GENERAL MOTORS CORP.
  2. Install the recirculation actuator (1) to the recirculation housing (2).
    Fig 2: View Of Recirculation Actuator & Recirculation Housing
    GM826725Courtesy of GENERAL MOTORS CORP.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the screws to the recirculation actuator (1).

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  4. Connect the electrical connection to the recirculation actuator (1).
  5. Install the upper recirculation housing (1) to the HVAC module assembly (2).

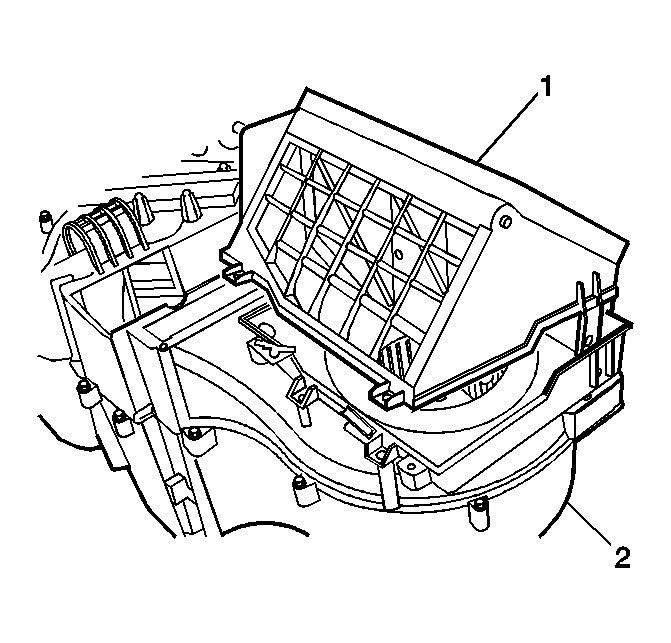

    Fig 3: View Of Upper Recirculation Housing And HVAC Module Assembly
    GM826727Courtesy of GENERAL MOTORS CORP.
  6. Install the screws to the upper recirculation housing (1).

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  7. Install the wiring harness to the recirculation housing (1).
  8. Install the HVAC module assembly. Refer toHVAC Module Assembly Replacement .
