Shift Valve Body Assemble

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the solenoid screen (1).

    Solenoid screen installed depth:  Ensure the solenoid screen (1) is installed to a depth of 0.50-1.00 mm (0.20-0.039 in) below the shift valve body surface, as shown in the insert, dimension A.

    NOTE: Refer to Transmission Control Valve Body Overhaul Notice .
    Fig 1: Installing The Solenoid Screen
    GM795175Courtesy of GENERAL MOTORS CORP.

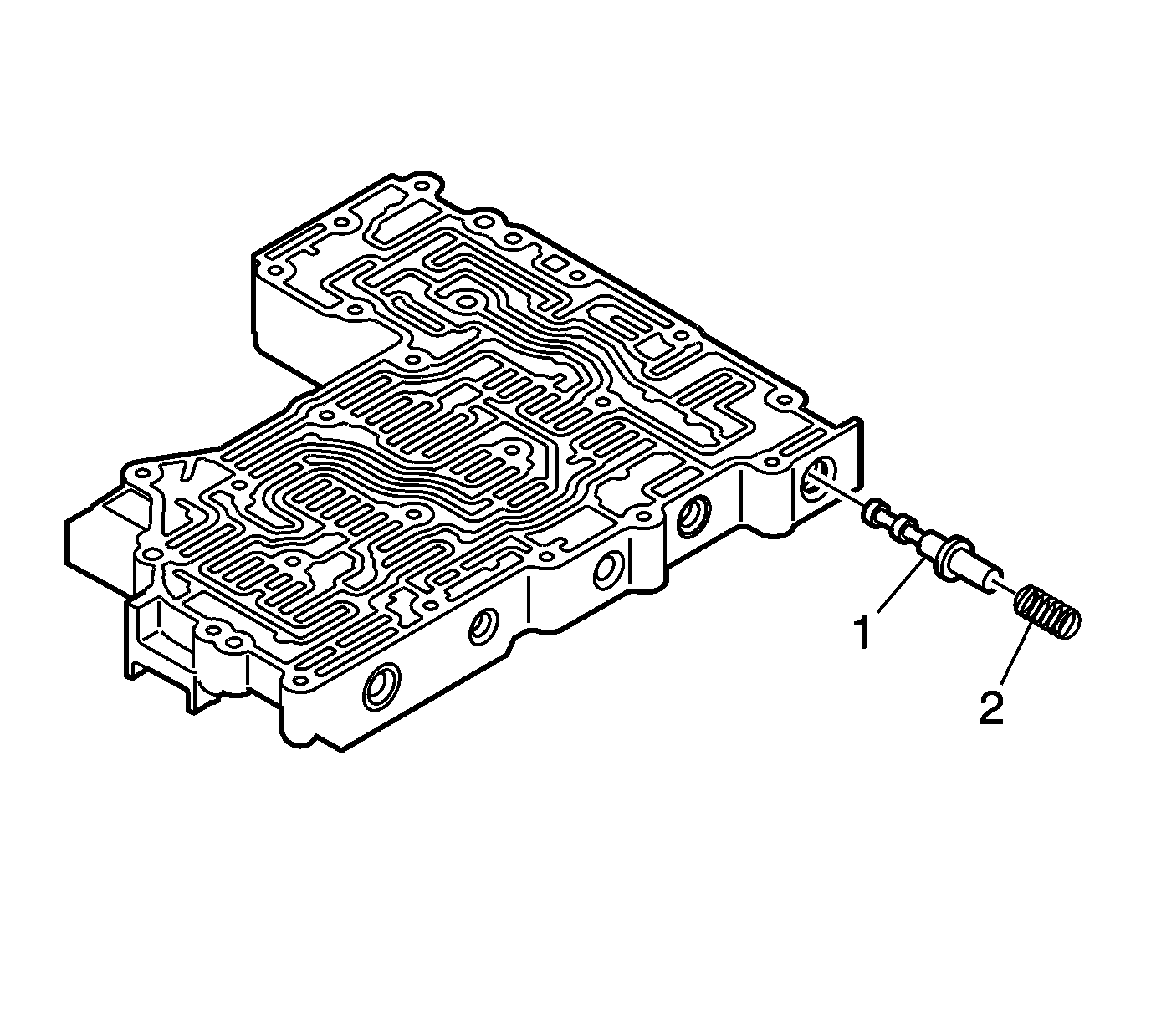

    2. Fig 2: Installing Control Main Valve And Spring
    GM795173Courtesy of GENERAL MOTORS CORP.
  2. Install control main valve (1) and spring (2).
  3. Using J 43773  (2), compress the valve spring.

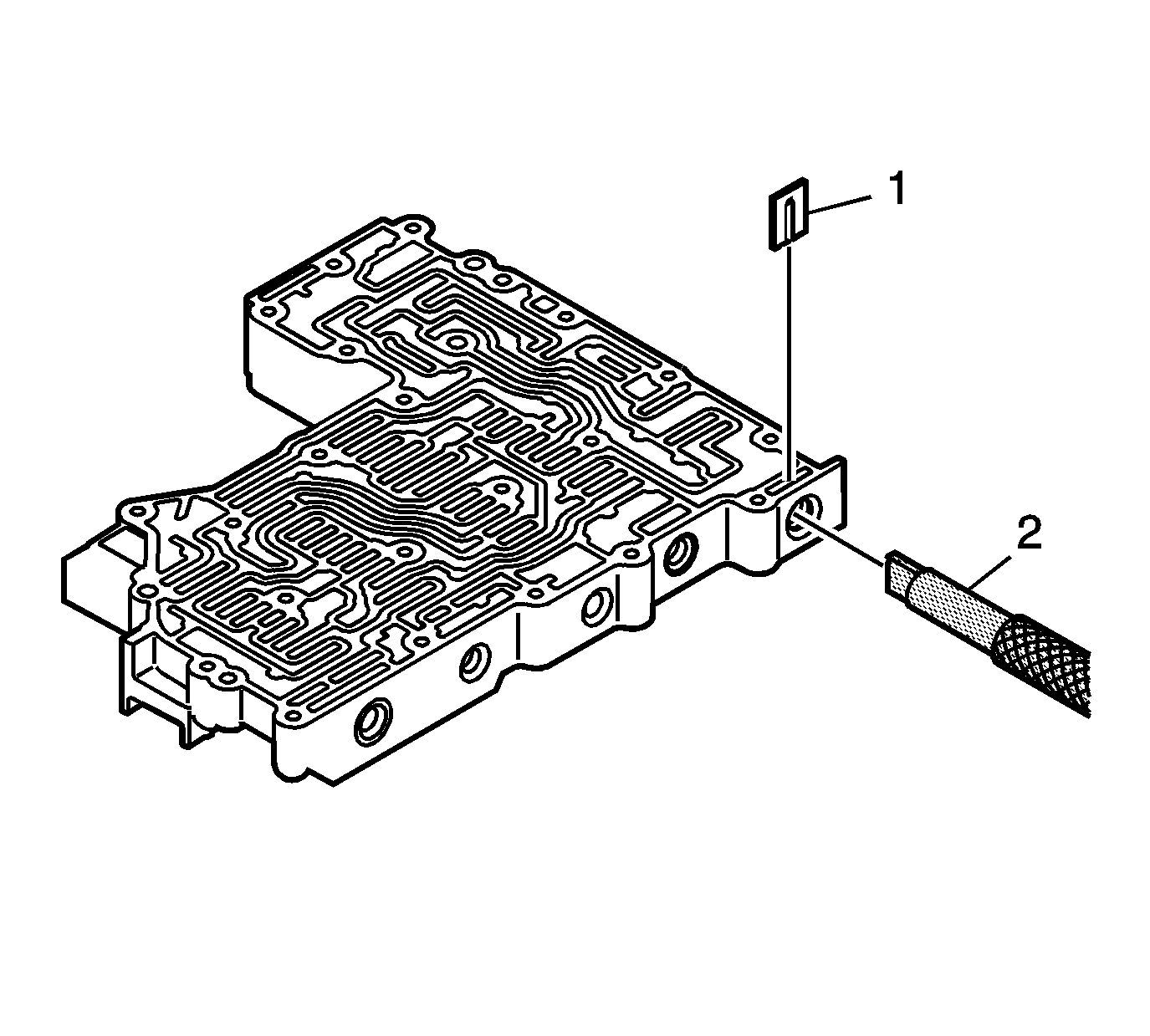

    Fig 3: Compressing The Control Main Valve Spring
    GM795171Courtesy of GENERAL MOTORS CORP.
  4. Install retaining clip (1). Ensure the retaining clip (1) is below the valve body surface.

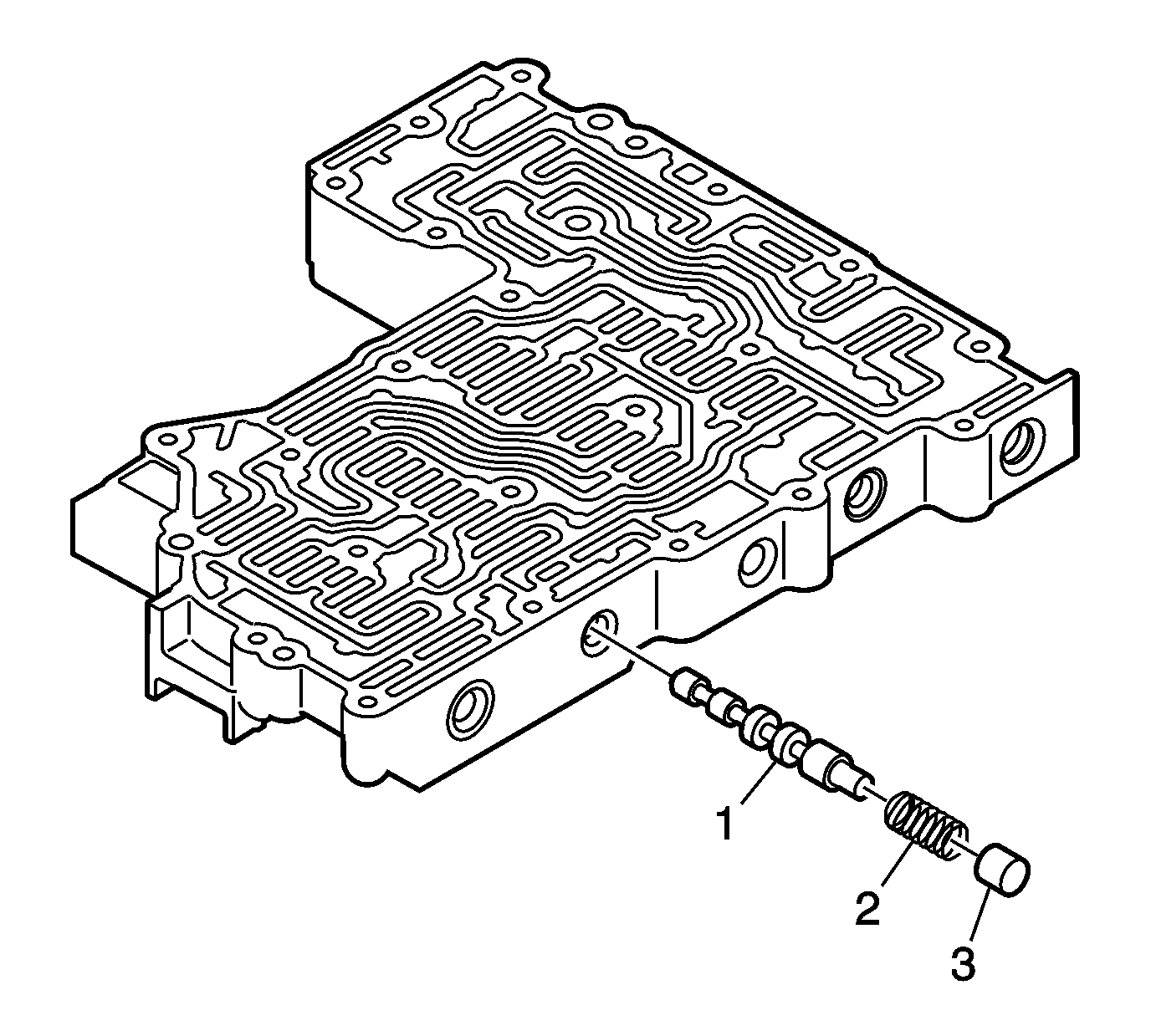

    5. Fig 4: Installing D Shift Valve, Spring, And Plug
    GM795170Courtesy of GENERAL MOTORS CORP.
  5. Install D shift valve (1), spring (2), and plug (3).
  6. Using J 43773  (2), compress the valve spring.

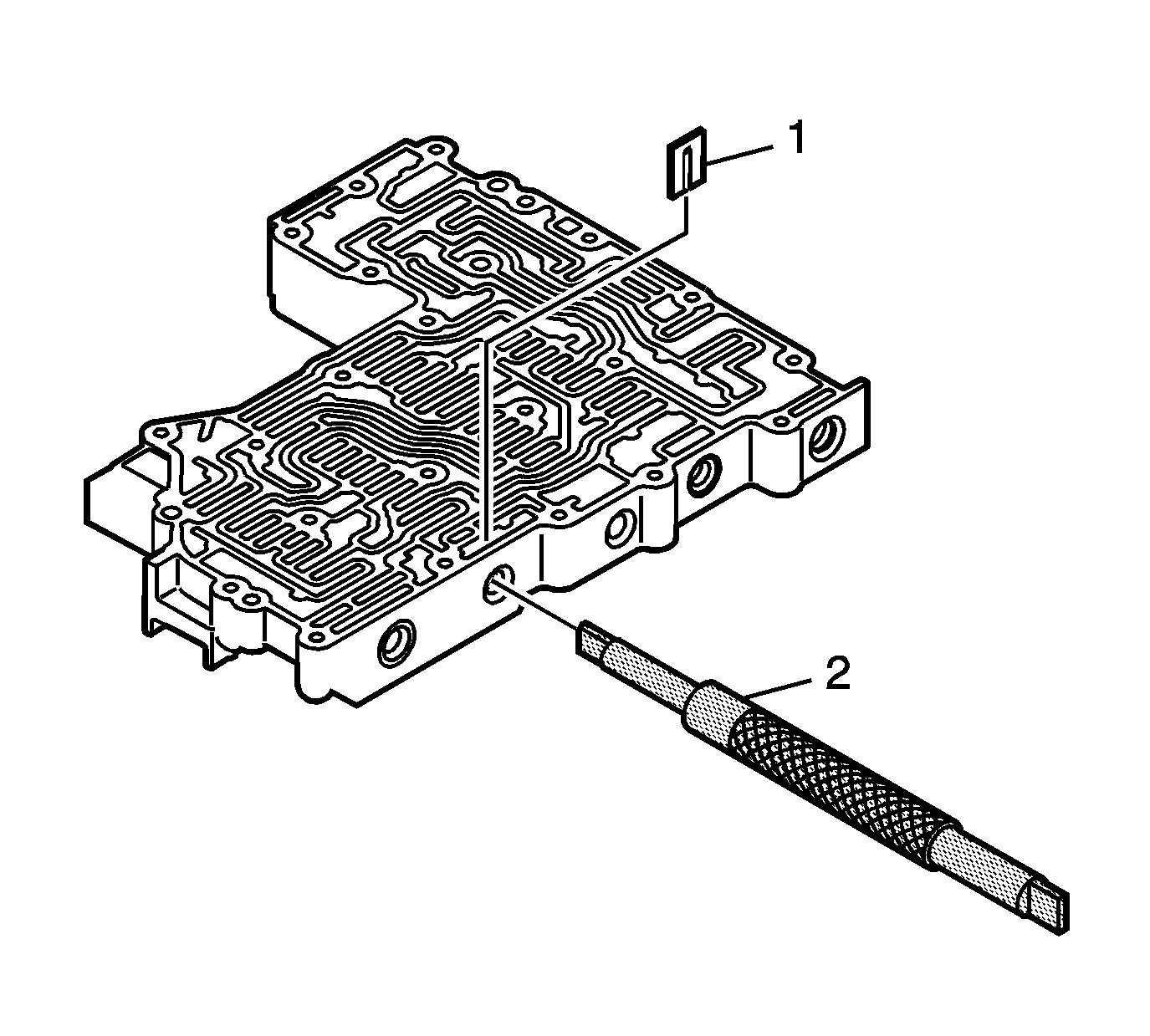

    Fig 5: Compressing The D Shift Valve Spring
    GM795169Courtesy of GENERAL MOTORS CORP.
  7. Install retaining clip (1). Ensure the retaining clip is below the valve body surface.

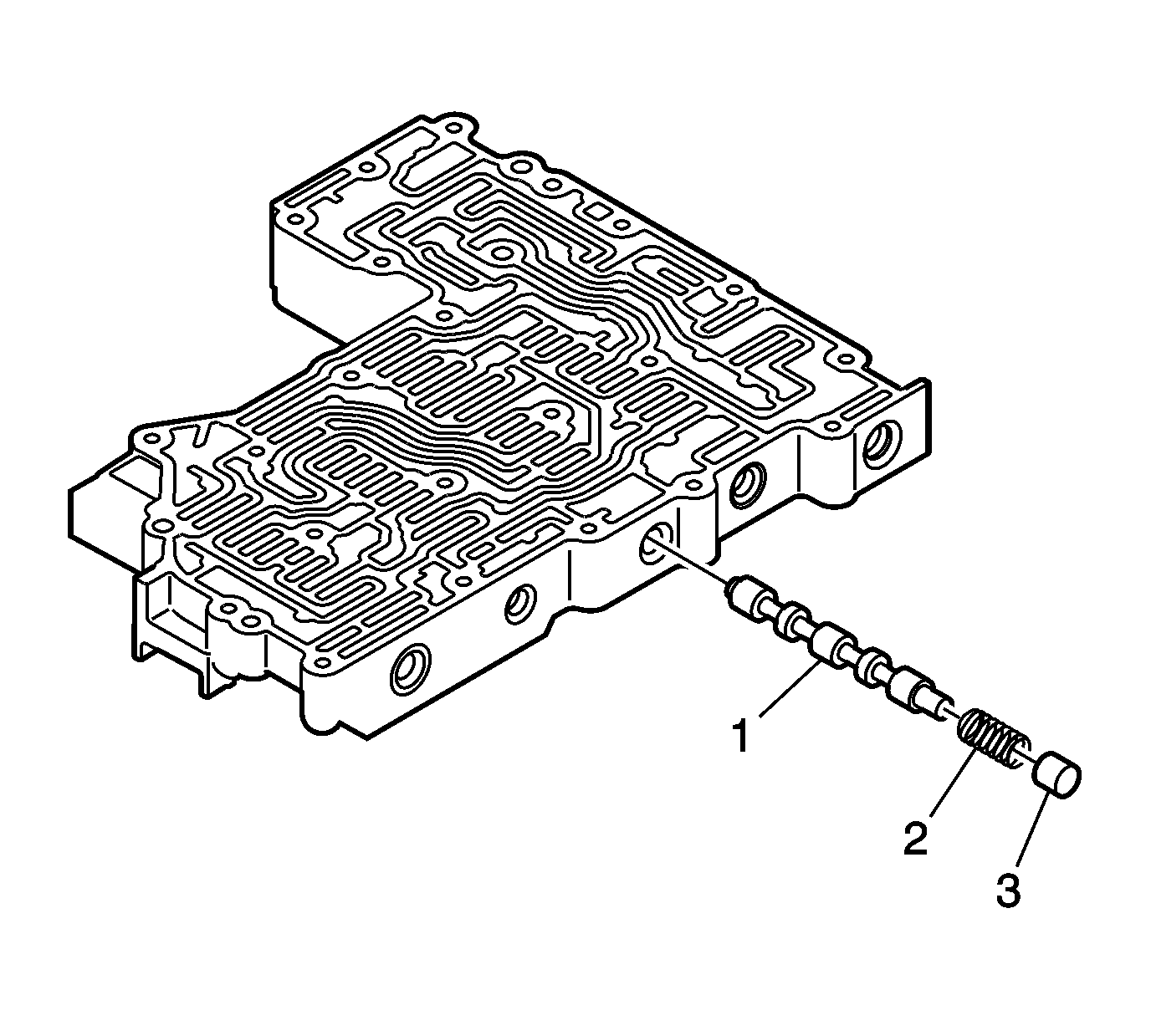

    8. Fig 6: Installing E Shift Valve, Spring, And Plug
    GM795166Courtesy of GENERAL MOTORS CORP.
  8. Install E shift valve (1), spring (2), and plug (3).
  9. Using J 43773  (2), compress the valve spring.

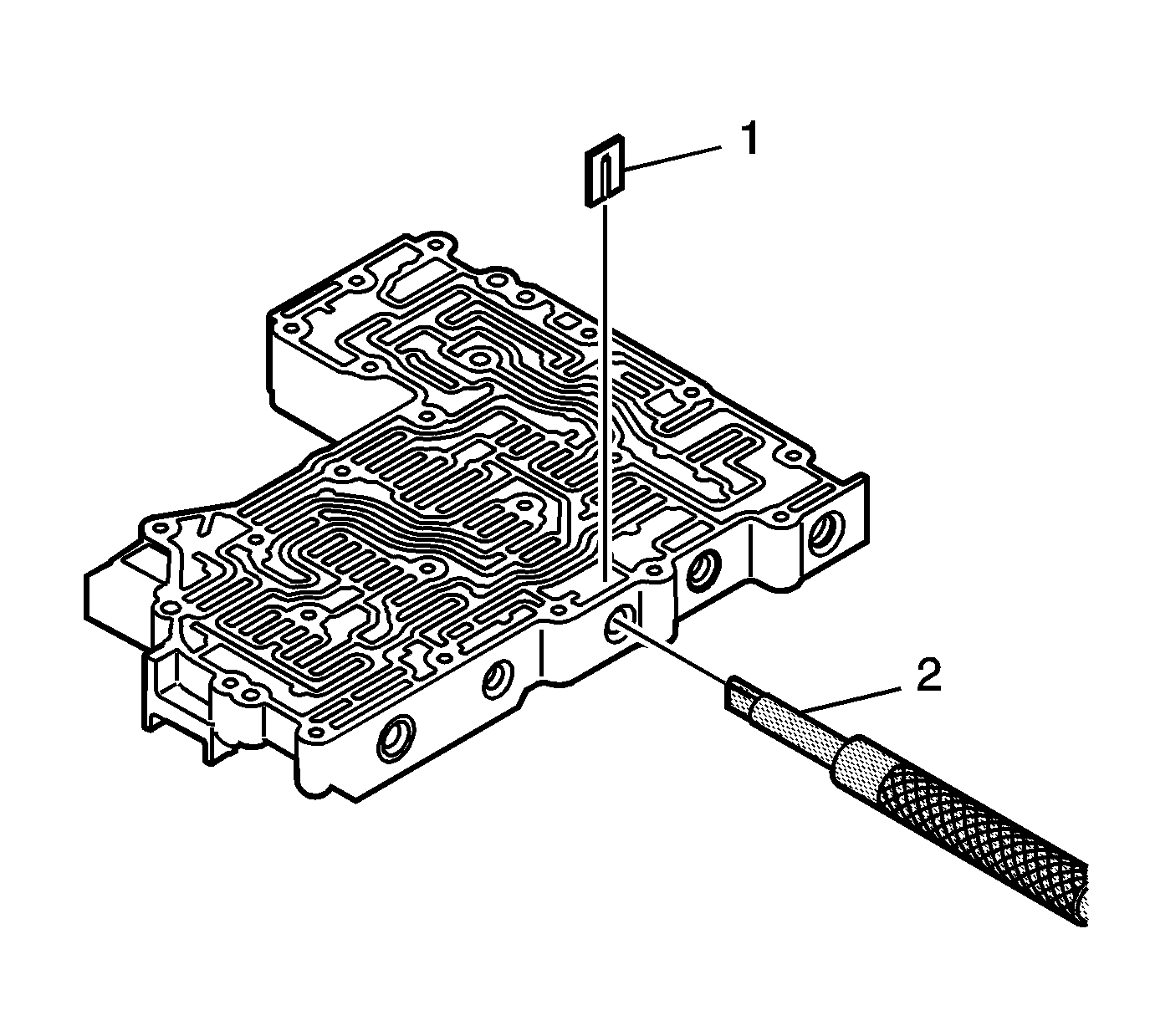

    Fig 7: Compressing The E Shift Valve Spring
    GM795164Courtesy of GENERAL MOTORS CORP.
  10. Install retaining clip (1). Make sure the retaining clip is below the valve body surface.

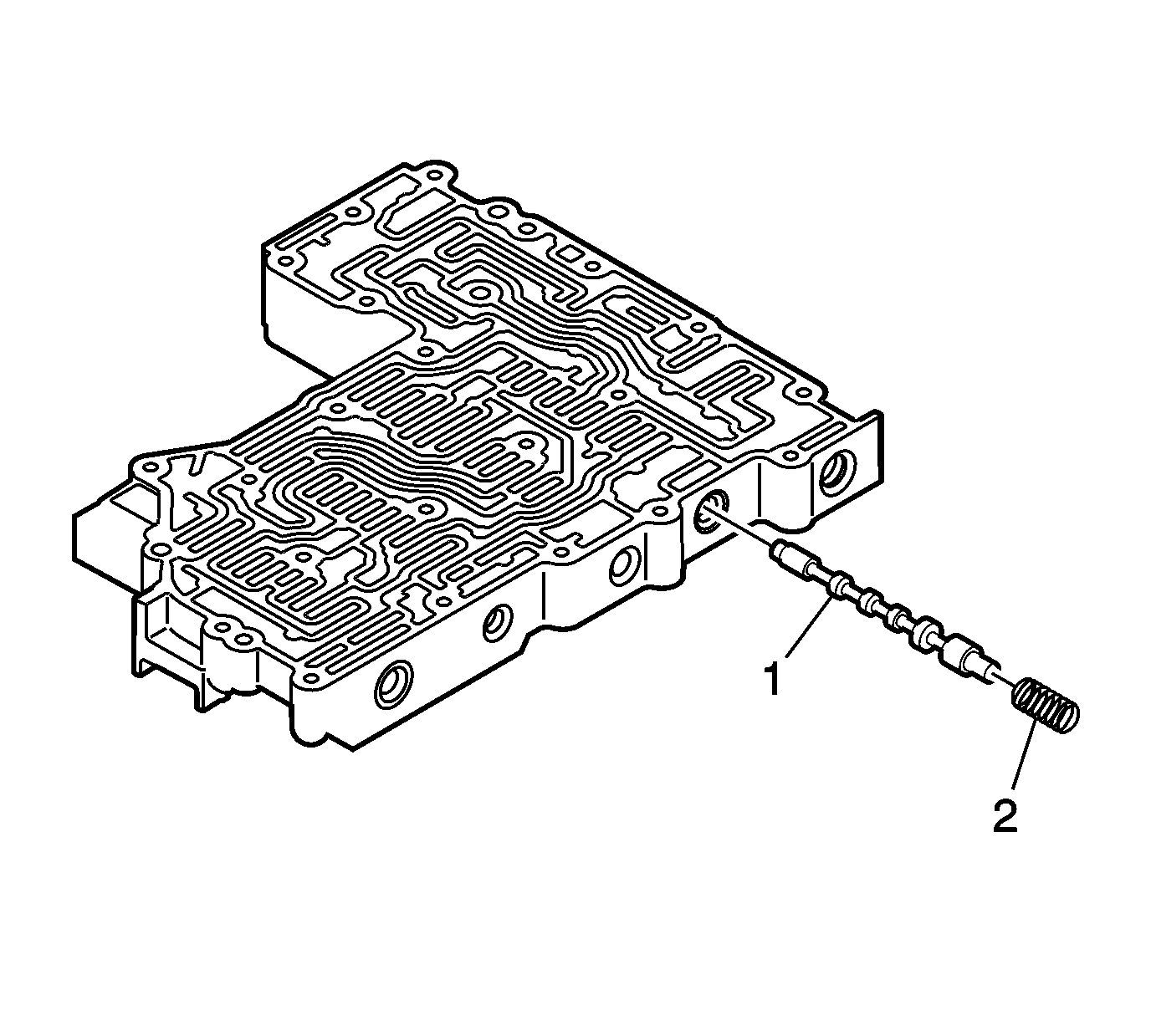

    11. Fig 8: Installing C Shift Valve, Spring, And Plug
    GM795163Courtesy of GENERAL MOTORS CORP.
  11. Install C shift valve (1), spring (2), and plug.
  12. Using J 43773  (2), compress the valve spring.

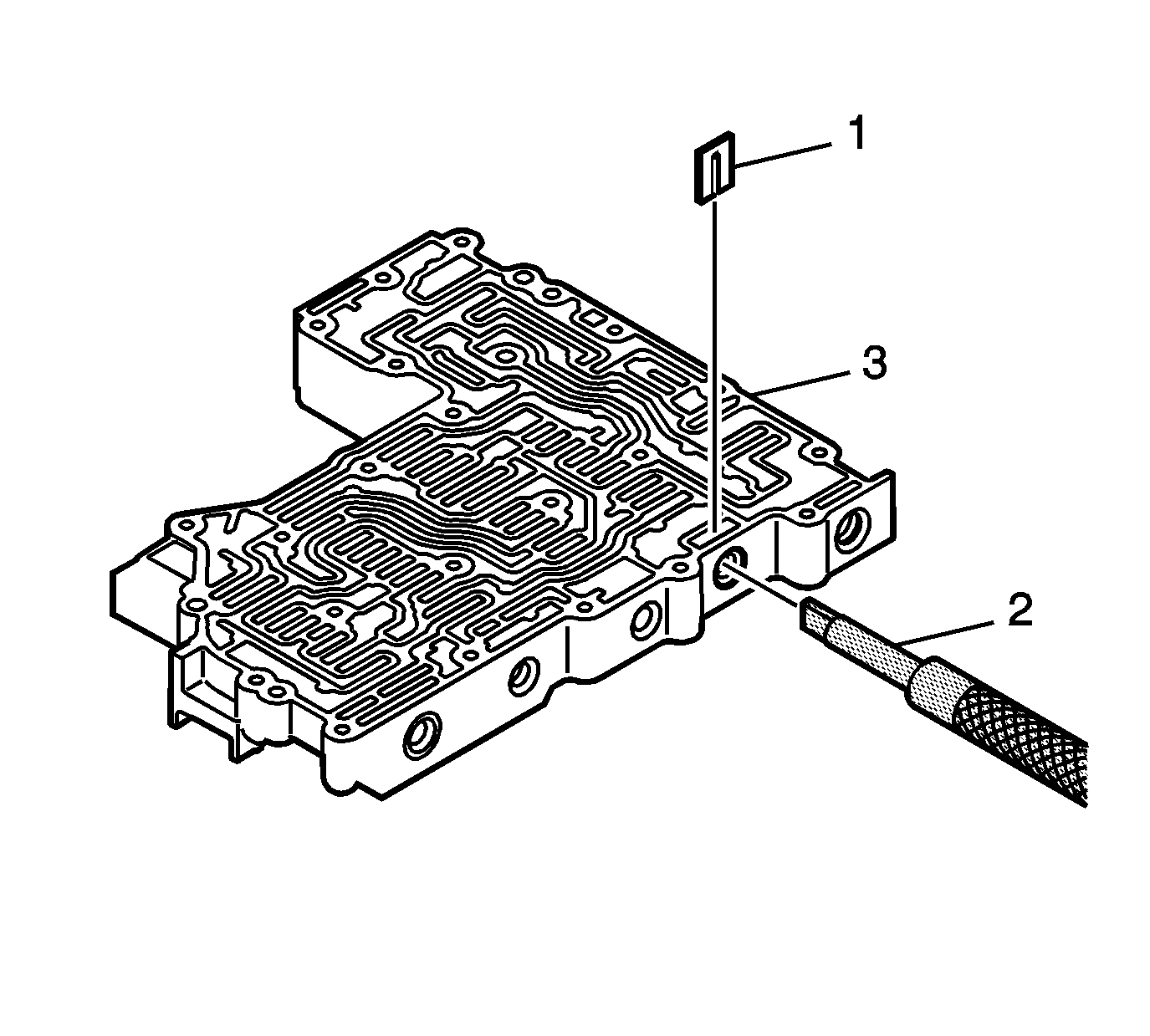

    Fig 9: Compressing The C Shift Valve Spring
    GM795162Courtesy of GENERAL MOTORS CORP.
  13. Install retaining clip (1). Ensure the retaining clip is below the valve body surface.
