Rear Wheel Steering Schematics

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

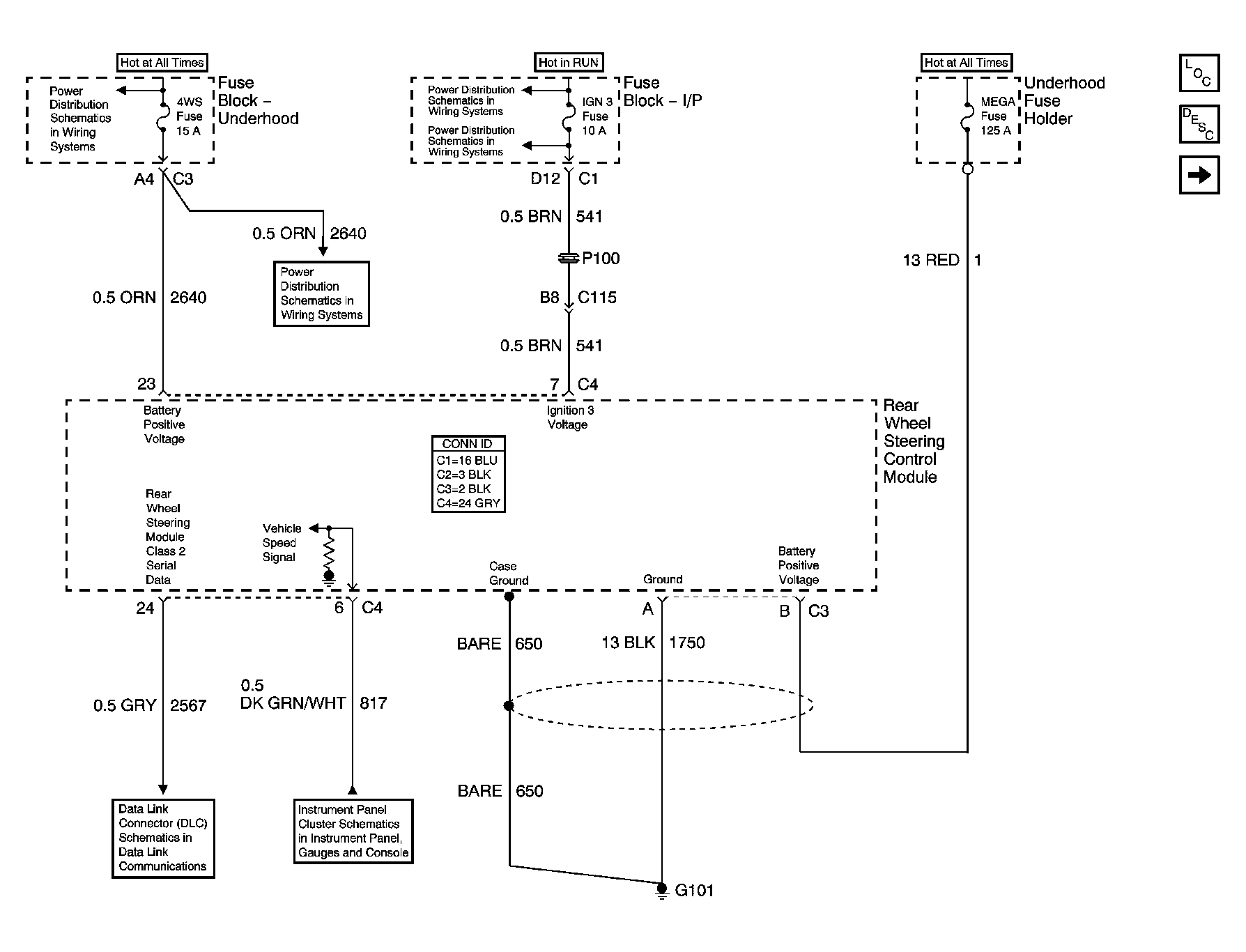

Fig 1: Power, Ground, Serial Data and Vehicle Speed Schematic

Courtesy of GENERAL MOTORS CORP.

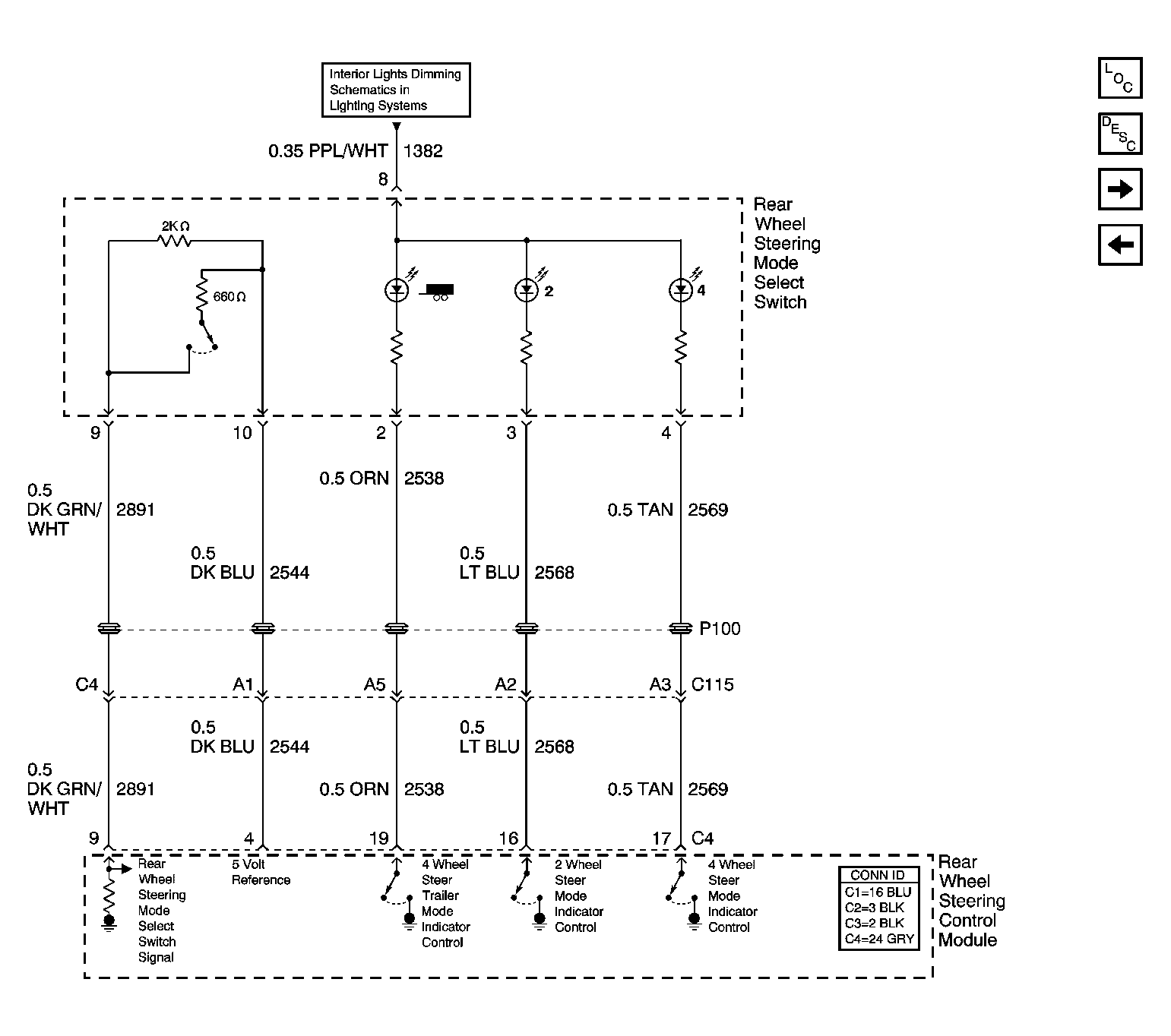

Fig 2: Mode Selection Schematic

Courtesy of GENERAL MOTORS CORP.

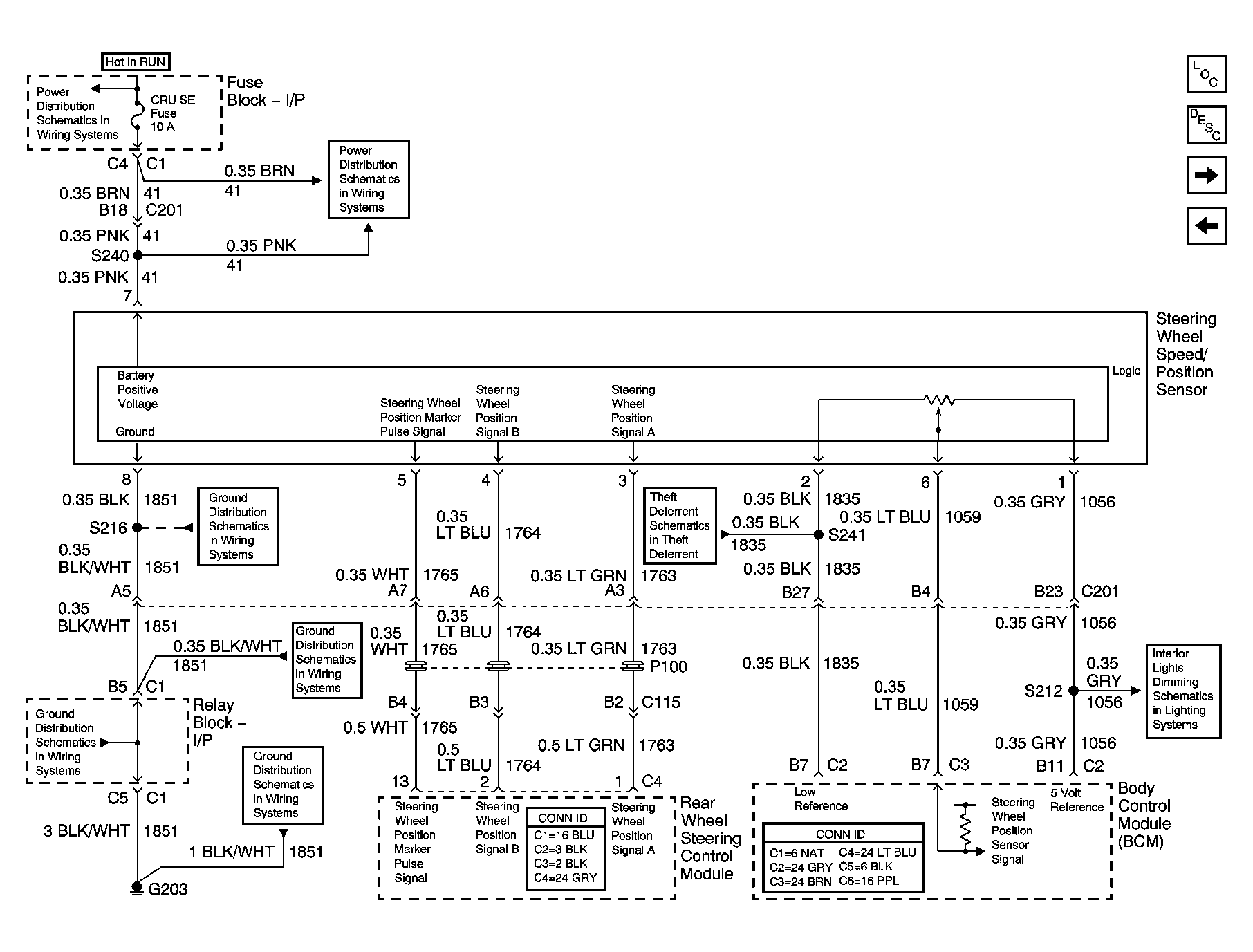

Fig 3: Steering Wheel Speed/Position Schematic

Courtesy of GENERAL MOTORS CORP.

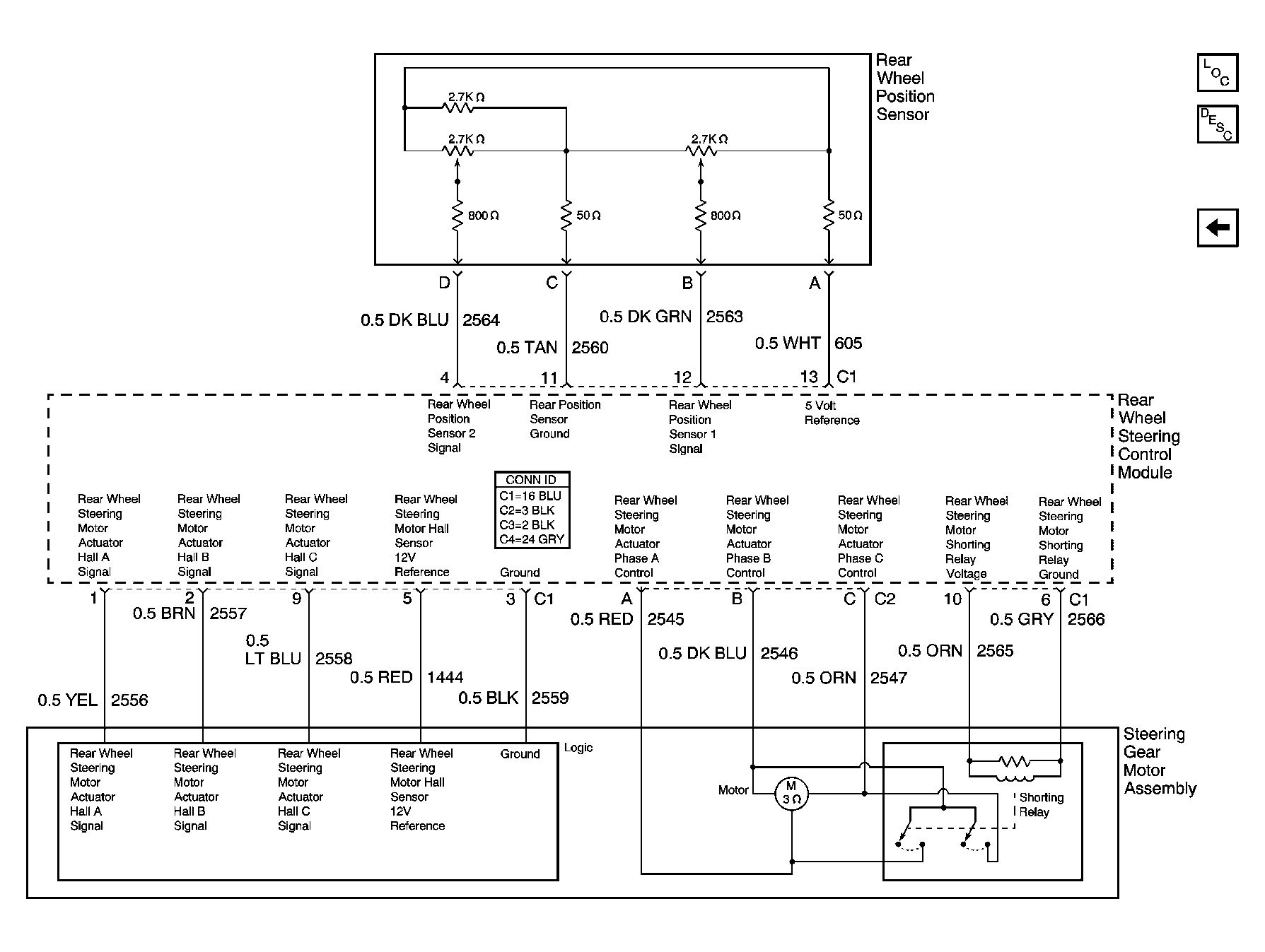

Fig 4: Rear Wheel Position Controls Schematic

Courtesy of GENERAL MOTORS CORP.
