Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the service disconnect power cable to the fuse holder and service disconnect switch.

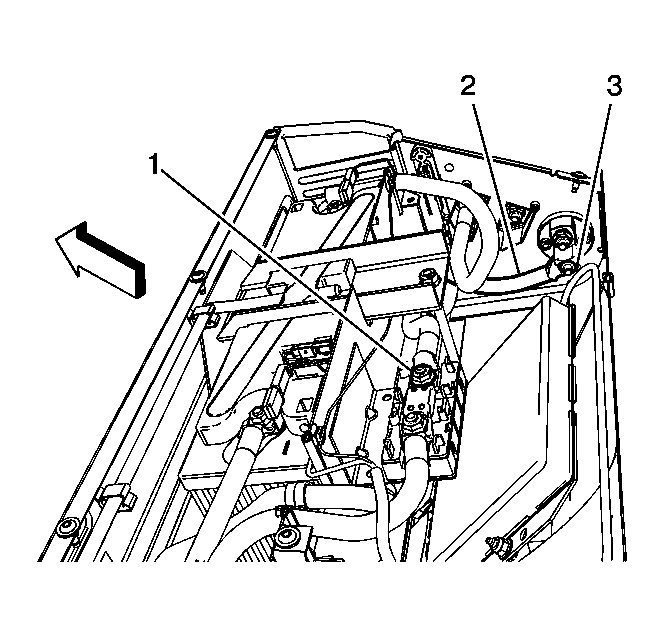

Fig 1: View Of Service Disconnect Power Cable, Fuse Holder & Service Disconnect Switch (5.3L Engine w/RPO HP2)

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the service disconnect power cable nut at the service disconnect switch.
Tighten: Tighten the nut to 10 N.m (89 lb in).
Install NEW tie straps securing the power cable to the ESB.
Install the maxi-fuse. Refer to Energy Storage Box (ESB) Maxi-Fuse Replacement (5.3L Engine w/RPO HP2) .
Install the service disconnect power cable. Refer to Energy Storage Box (ESB) Service Disconnect Power Cable Replacement (5.3L Engine w/RPO HP2) .
