Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuel bundle.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fuel bundle nuts.

    Tighten:  Tighten the nuts to 16 N.m (12 lb ft).

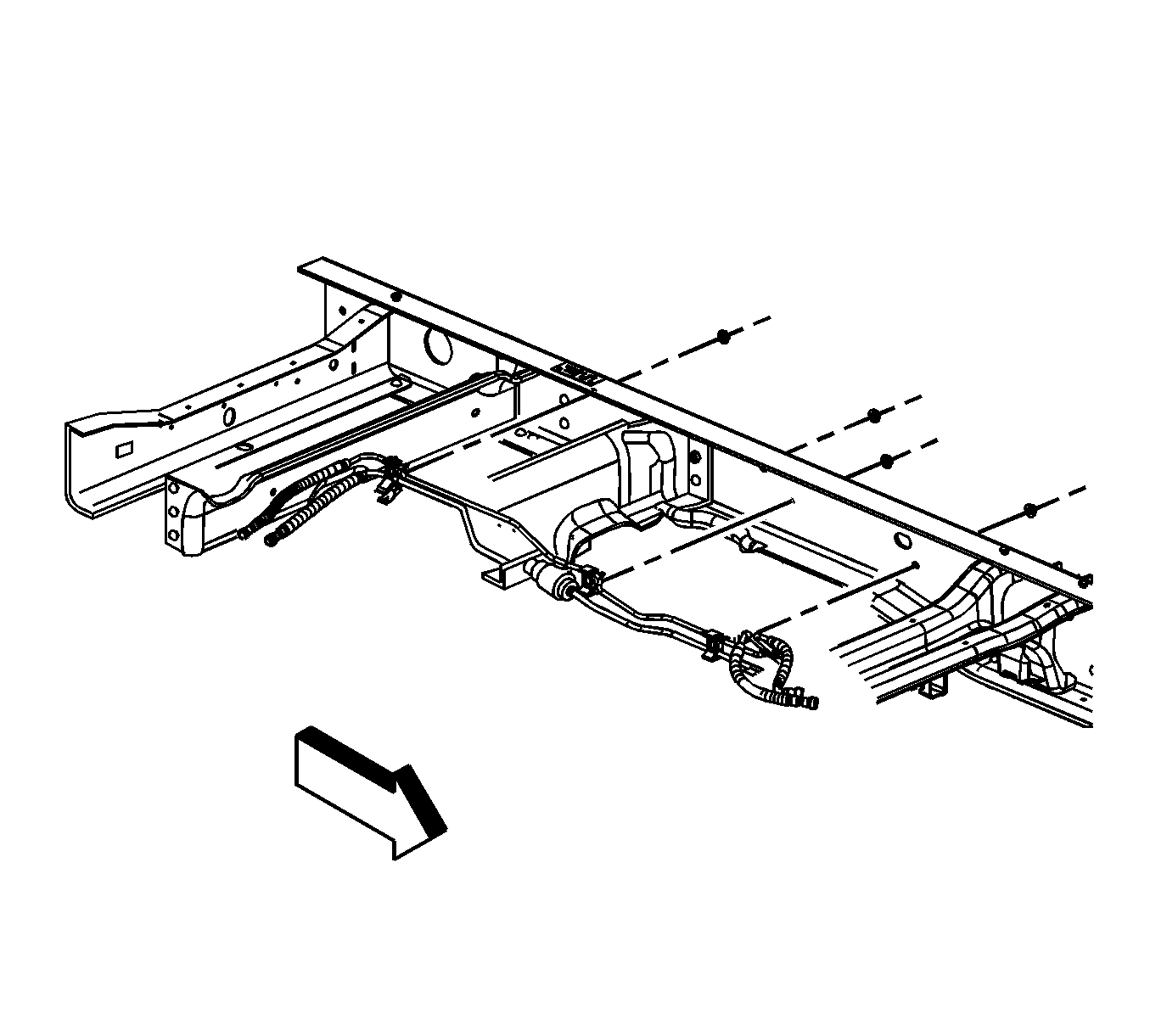

    Fig 1: View Of Fuel Bundle (Cab/Chassis w/Balance Pump)
    GM1228195Courtesy of GENERAL MOTORS CORP.
    3. Fig 2: View Of Sending Unit Electrical Connector (Cab/Chassis w/Balance Pump)
    GM1333147Courtesy of GENERAL MOTORS CORP.
  3. Connect the pressure balance pump electrical connector.
  4. Install the front and auxiliary fuel tanks. Refer to Fuel Tank Replacement (Pickup)  or Fuel Tank Replacement (Cab/Chassis - Front)  or Fuel Tank Replacement (Cab/Chassis - Rear) .
