Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the vehicle is equipped with a 8 ft box, install the CVS to the fuel tank until the clip engages.
    IMPORTANT: On vehicles equipped with a 8 ft box, the CVS line is routed below the frame crossmember.

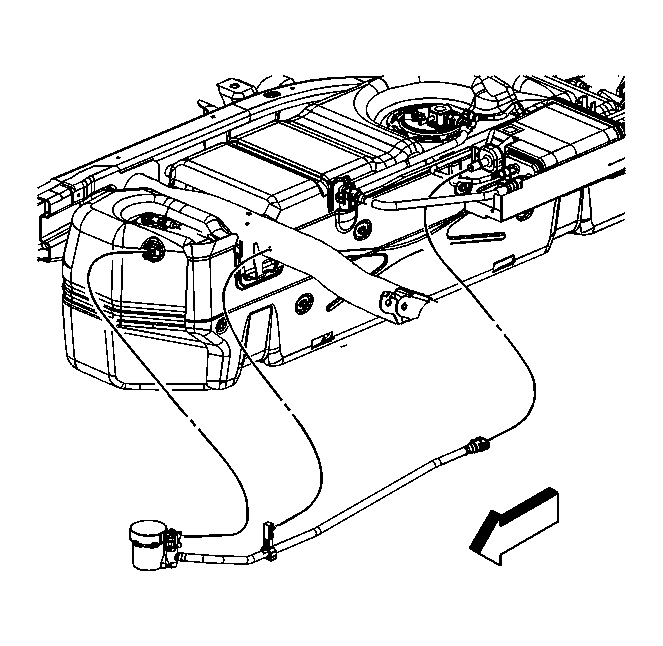

    Fig 1: EVAP CVS Line At The Canister (Pickup With 8 Ft. Box)
    GM1228109Courtesy of GENERAL MOTORS CORP.
  2. Install the CVS clip to the frame crossmember.
  3. Connect the EVAP CVS line to the canister.
    4. Fig 2: EVAP CVS Line At The Canister (Pickup With 6 Ft. Box)
    GM1228107Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: On vehicles equipped with a 6 ft box, the CVS line is routed above the frame crossmember.
  4. If the vehicle is equipped with a 6 ft box, install the CVS to the fuel tank until the clip engages.
  5. Install the CVS clip to the frame crossmember.
  6. Connect the EVAP CVS line to the canister.
    7. Fig 3: EVAP Canister Vent Solenoid
    GM1228110Courtesy of GENERAL MOTORS CORP.
  7. Connect the CVS electrical connector.
  8. Install the harness clip to the canister vent solenoid (CVS) line.
  9. Lower the vehicle.
