Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the EVAP CVS valve line to the CVS, if necessary.
    Fig 1: EVAP Line And Clips On The Fuel Tank (Cab/Chassis - Front)
    GM1228184Courtesy of GENERAL MOTORS CORP.
  2. Install the CVS valve and line.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the EVAP CVS valve bracket bolt (1).

    Tighten:  Tighten the bolt to 12 N.m (106 lb in).

  4. Install the EVAP CVS line to the clips on the fuel tank.

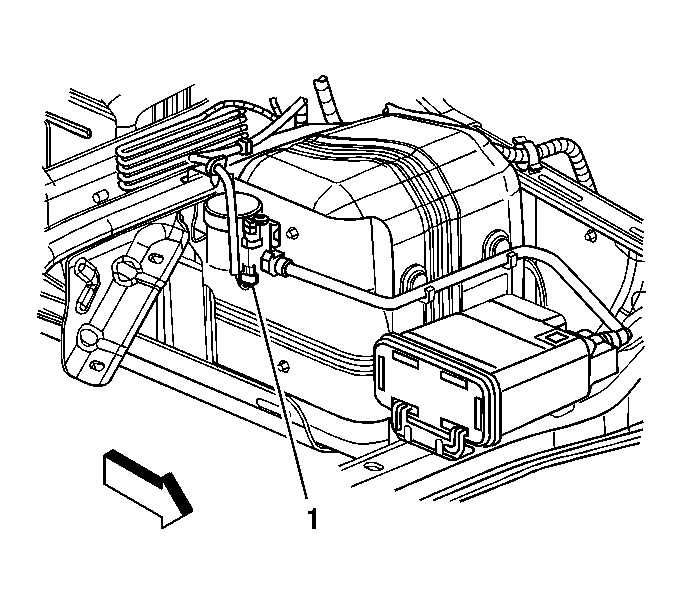

    5. Fig 2: EVAP Canister Vent Solenoid (Cab/Chassis)
    GM1238187Courtesy of GENERAL MOTORS CORP.
  5. Connect the EVAP CVS electrical connector (1).
