Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. If necessary, connect the EVAP lines to the canister.

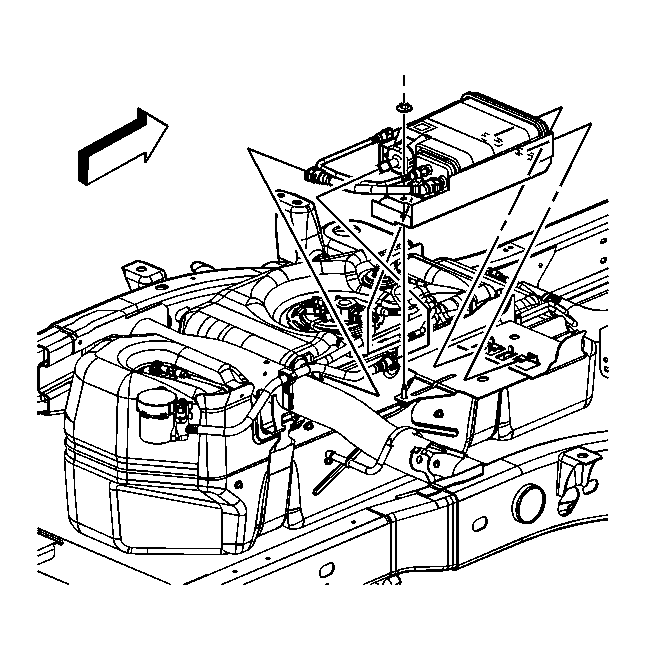

    Fig 1: EVAP Canister Assembly (Pickup)
    GM1228104Courtesy of GENERAL MOTORS CORP.
  2. If necessary, install the EVAP canister to the shield, perform the following:
    1. Install the canister to the shield.
    2. Ensure the retaining clip engages on the bottom of the canister.
      NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the EVAP canister nut.

    Tighten:  Tighten the nut to 25 N.m (18 lb ft).

  4. Connect the canister EVAP line to the fuel bundle line.
  5. Connect the fuel tank EVAP line to the canister.
  6. Connect the EVAP CVS line to the canister.
  7. Lower the vehicle.
