Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. If necessary, connect the EVAP line to the canister and install it to the retaining clip.
  2. Install the EVAP canister to the bracket.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the EVAP canister bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

    4. Fig 1: Retaining Clip & EVAP Line At Canister
    GM1228101Courtesy of GENERAL MOTORS CORP.
  4. Connect the canister EVAP line to the fuel bundle line.
  5. Connect the fuel tank EVAP line to the canister.
  6. Connect the EVAP CVS line to the canister.

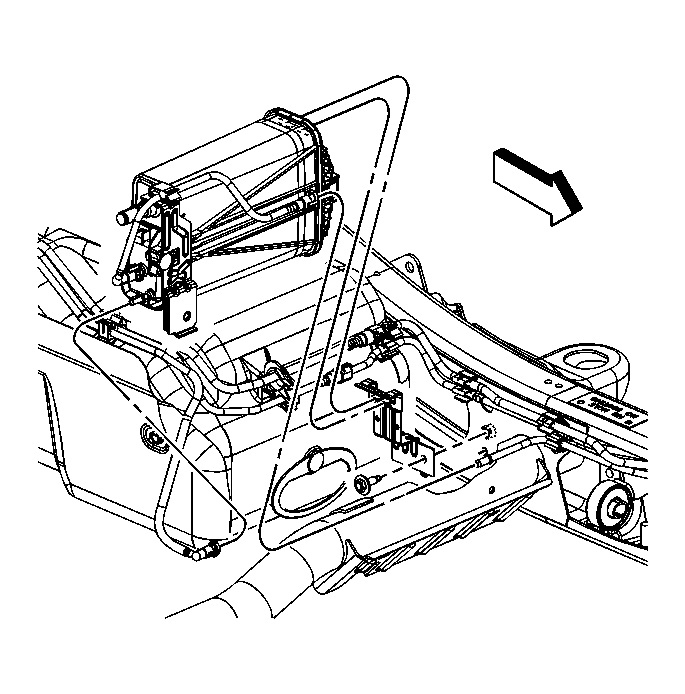

    7. Fig 2: EVAP Canister Replacement (Pickup - 5.3L (L59))
    GM1228102Courtesy of GENERAL MOTORS CORP.
  7. Lower the vehicle.
