Vent Hose (4L80-E): Installation
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, and 2002 GMC C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

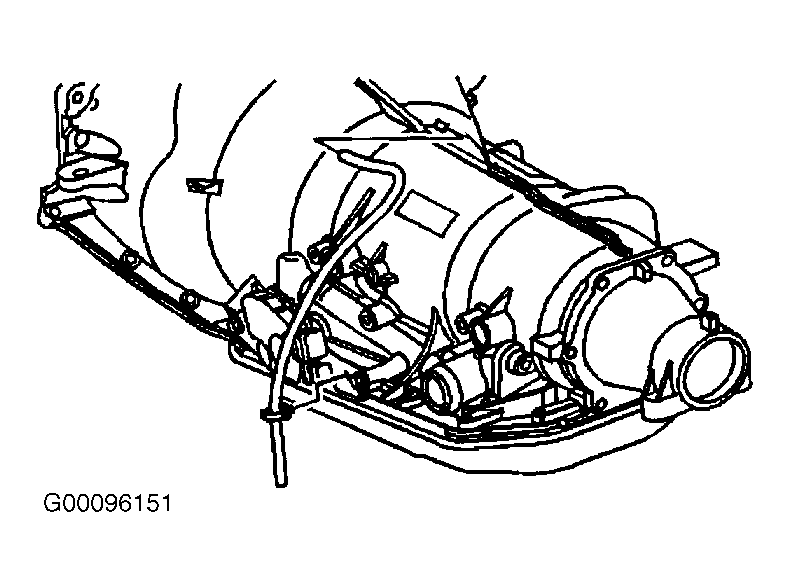

Install the vent hose to the transmission. Install the vent hose to the clip. Install the bolt and the clamp. See Fig 1. Tighten the bolt to specification. See TORQUE SPECIFICATIONS .
