Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the seat belt retractor assembly to the vehicle.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the bolt that retains the rear seat belt retractor assembly to the vehicle.
Tighten

Tighten the seat belt retractor assembly bolt to 70 N.m (52 lb ft).
Guide the seat belt through the opening in the body side trim panel.

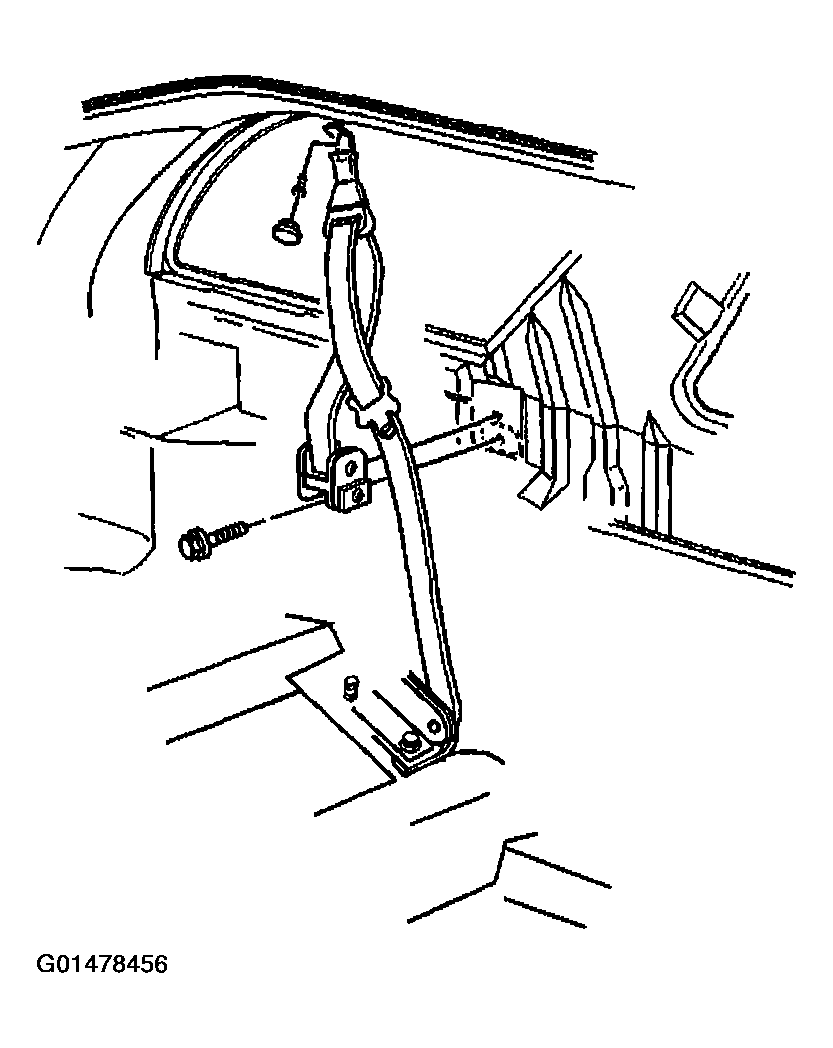

Fig 1: Installing Rear Seat Belt Retractor Assembly (Utility)
Courtesy of GENERAL MOTORS CORP.
Install the body side trim panel. Refer to TRIM PANEL REPLACEMENT-BODY SIDE (STANDARD CAB PICKUP) or TRIM PANEL REPLACEMENT-BODY SIDE (EXTENDED CAB PICKUP) or TRIM PANEL REPLACEMENT-BODY SIDE (2-DOOR UTILITY) or TRIM PANEL REPLACEMENT-BODY SIDE (4-DOOR UTILITY) or TRIM PANEL REPLACEMENT-BODY SIDE (CREW CAB) in Interior Trim.
Install the upper seat belt anchor plate and bolt to the vehicle.
Tighten

Tighten the upper seat belt anchor plate bolt to 70 N.m (52 lb ft).

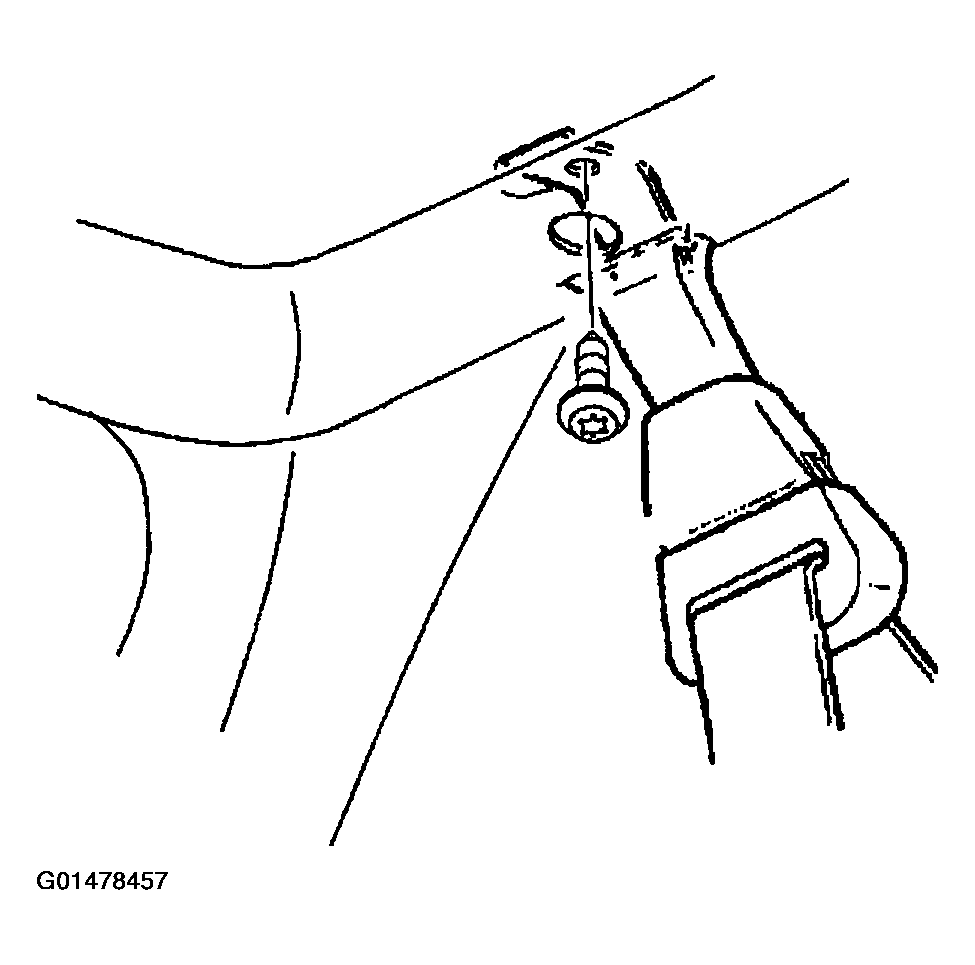

Fig 2: Installing Upper Seat Belt Anchor Plate Bolt (Utility)
Courtesy of GENERAL MOTORS CORP.
Install the upper seat belt anchor bolt cover.

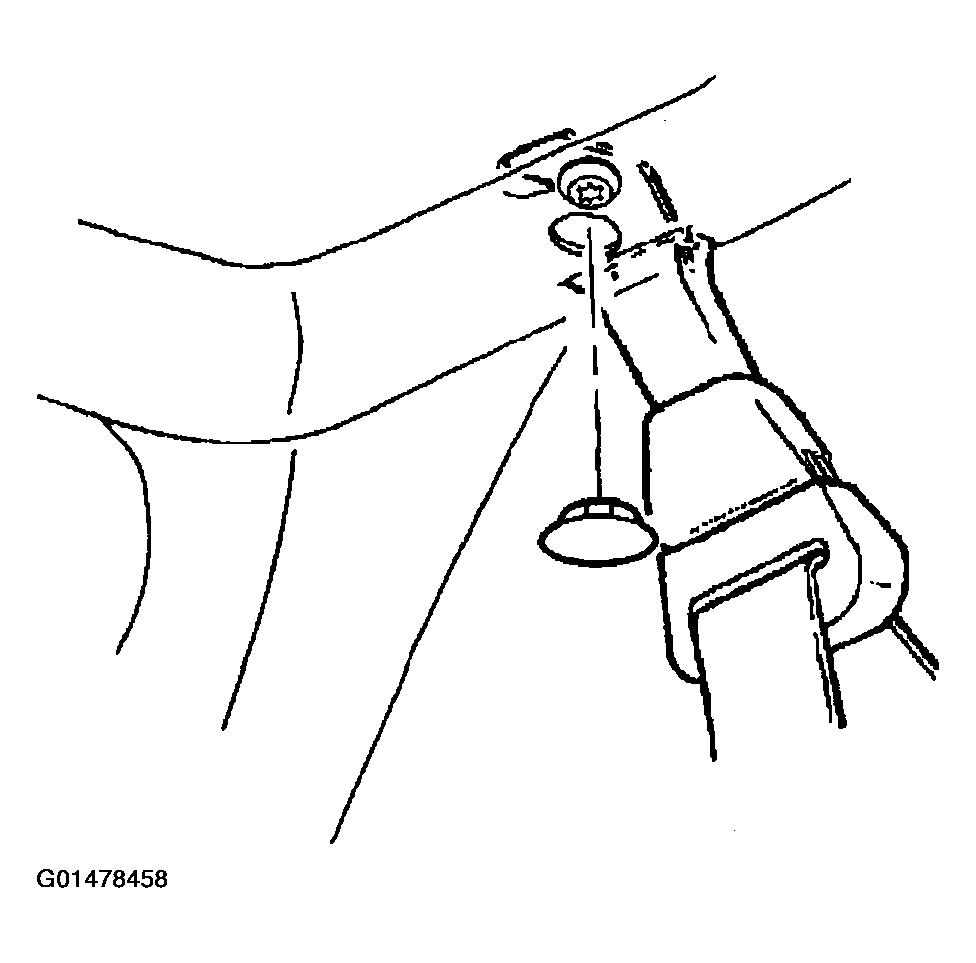

Fig 3: Installing Upper Seat Belt Anchor Cover (Utility)
Courtesy of GENERAL MOTORS CORP.
Install the lower seat belt anchor plate to the rear seat bolt.
Install the rear seat assembly. Refer to SEAT REPLACEMENT-REAR (2-DOOR UTILITY) or SEAT REPLACEMENT-REAR (4-DOOR UTILITY) or SEAR REPLACEMENT - REAR (CREW CAB) in Seats.

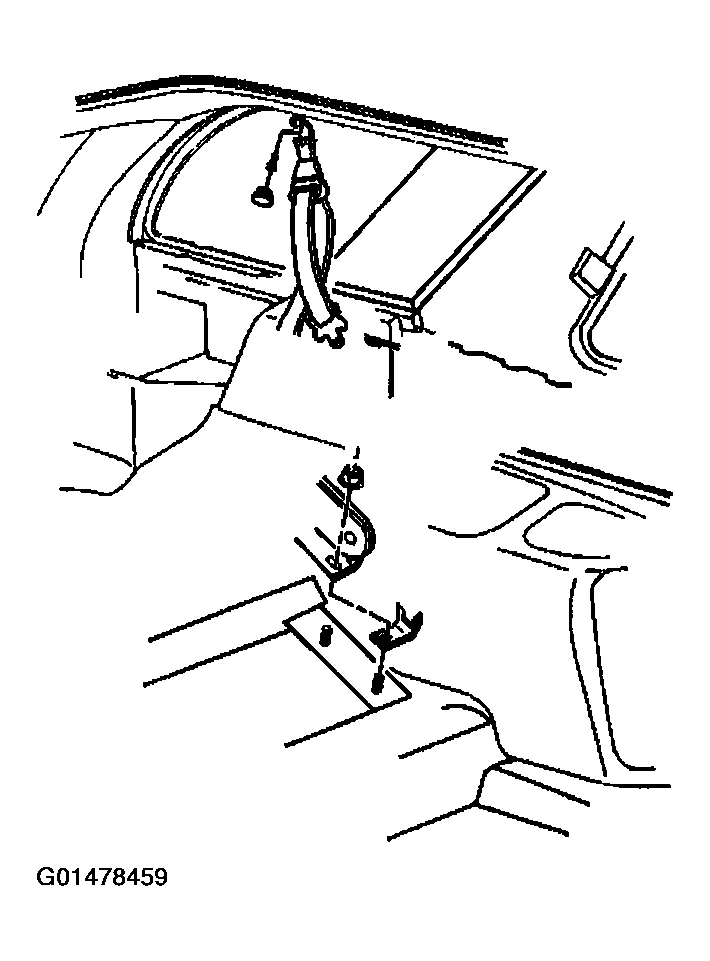

Fig 4: Installing Lower Seat Belt Anchor Plate To Rear Seat Bolt (Utility)
Courtesy of GENERAL MOTORS CORP.
