Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt that retains the lower seat belt anchor plate to the vehicle.

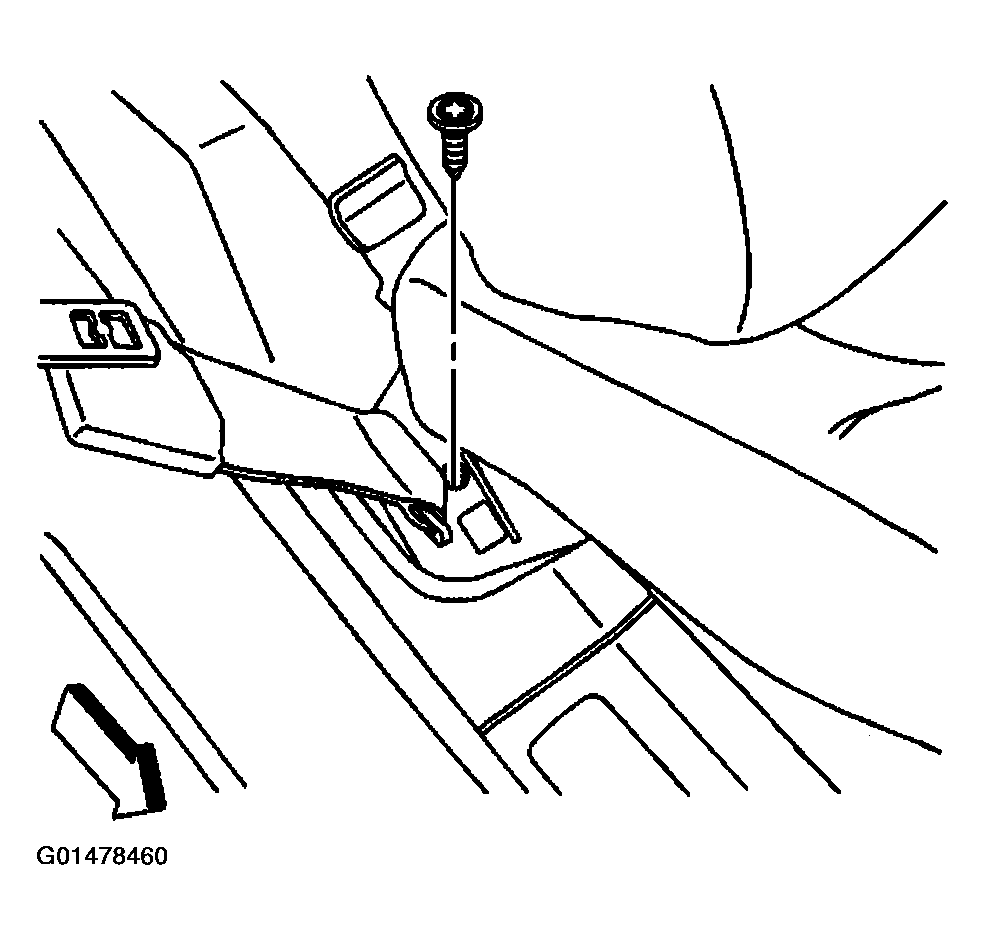

    Fig 1: Removing Lower Seat Belt Anchor Plate Bolt (Crew Cab)
    G01478460Courtesy of GENERAL MOTORS CORP.
  2. Carefully pry open the upper seat belt anchor plate cover with a flat-bladed tool.

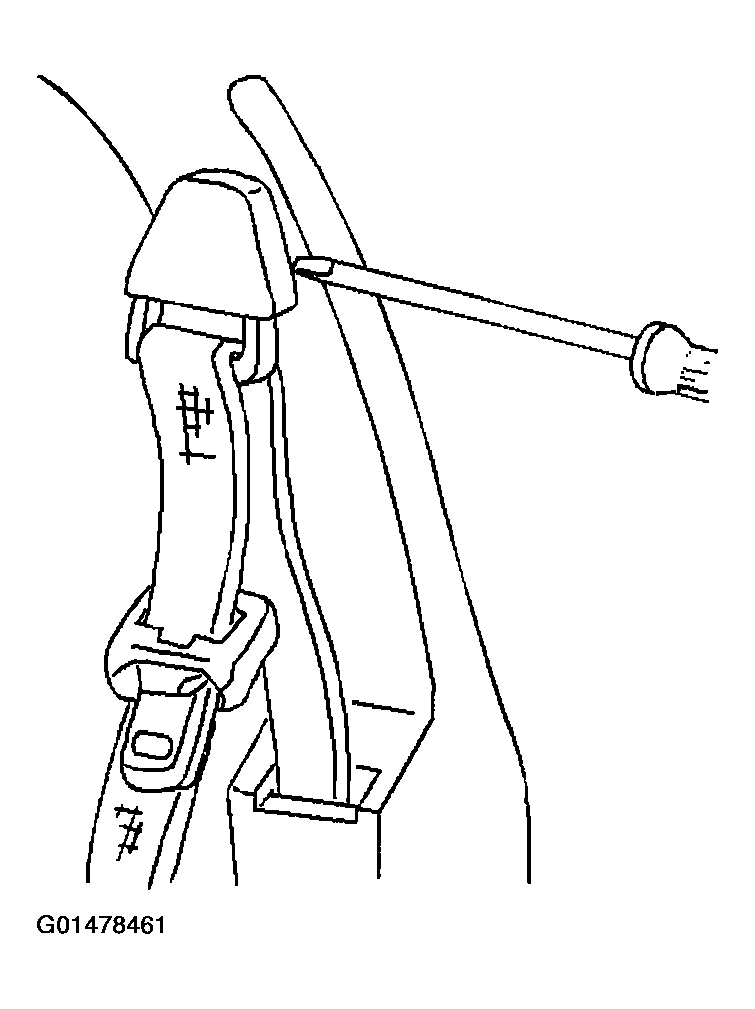

    Fig 2: Prying Open Upper Seat Belt Anchor Plate Cover (Crew Cab)
    G01478461Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolt that retains the upper seat belt anchor plate to the vehicle.
  4. Remove the body side trim panel. Refer to TRIM PANEL REPLACEMENT-BODY SIDE (STANDARD CAB PICKUP) or TRIM PANEL REPLACEMENT-BODY SIDE (EXTENDED CAB PICKUP) or TRIM PANEL REPLACEMENT-BODY SIDE (2-DOOR UTILITY) or TRIM PANEL REPLACEMENT-BODY SIDE (4-DOOR UTILITY) or TRIM PANEL REPLACEMENT-BODY SIDE (CREW CAB) in Interior Trim.
  5. Guide the seat belt through the opening in the body side trim cover.

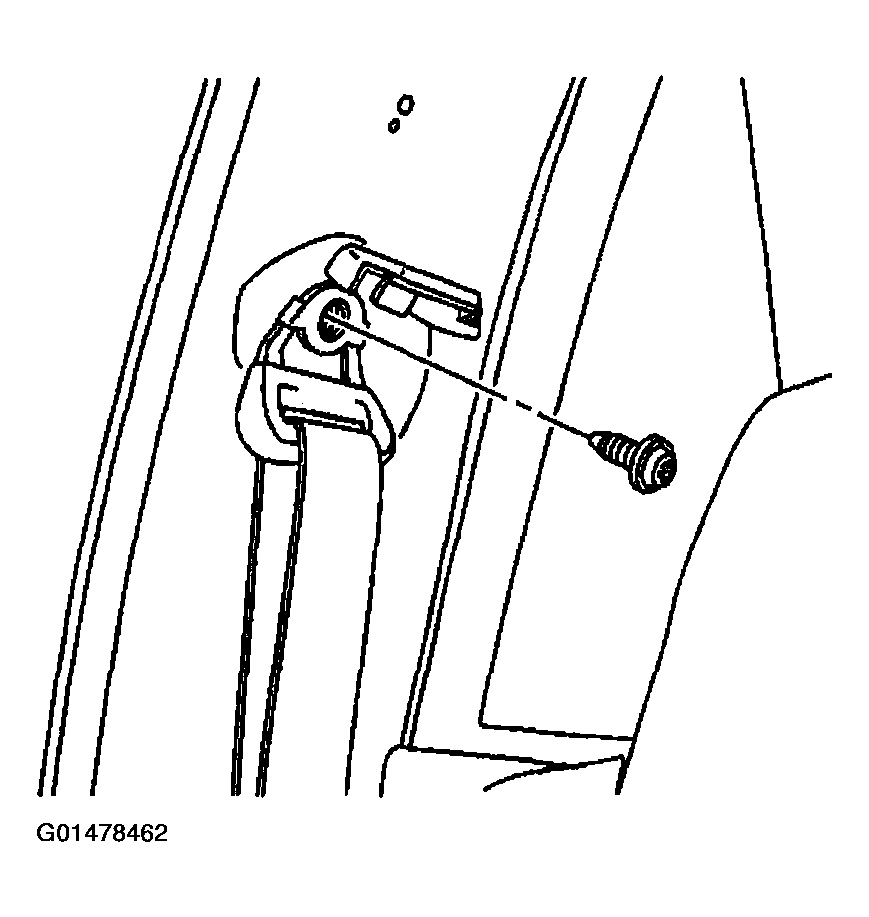

    Fig 3: Removing Upper Seat Belt Anchor Plate Bolt (Crew Cab)
    G01478462Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolt that retains the seat belt retractor assembly to the vehicle.
  7. Remove the seat belt retractor assembly from the vehicle.
    Fig 4: Removing Rear Seat Belt Retractor Assembly & Bolt (Crew Cab)
    G01478463Courtesy of GENERAL MOTORS CORP.
