Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the center rear seat belt assembly to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the center rear seat belt assembly retaining nuts to the vehicle.

    Tighten

    Tighten the center rear seat belt assembly retaining nuts to 80 N.m (59 lb ft).

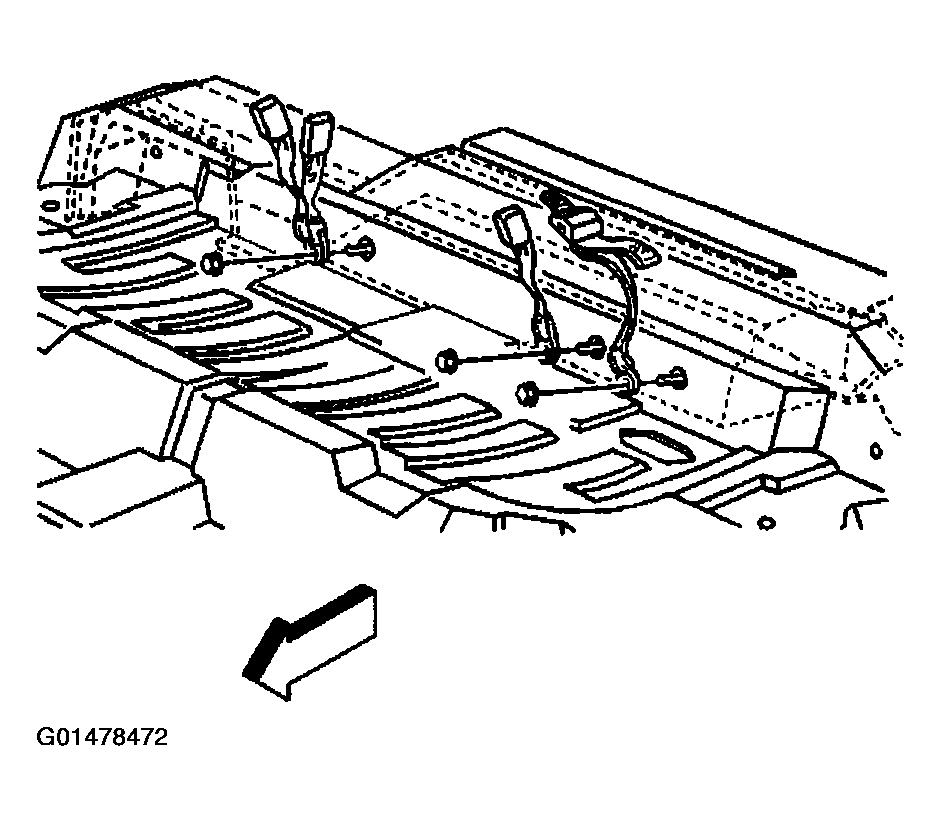

    Fig 1: Installing Center Rear Seat Belt Assembly (Crew Cab)
    G01478472Courtesy of GENERAL MOTORS CORP.
  3. Install the rear seat bottom cushion into vehicle.

    Insure the rear seat bottom frame engages in the tabs on the rear seat back mounting bracket.

  4. Install the 2 bolts securing the rear seat bottom cushion to the floor.

    Tighten

    Tighten the rear seat bottom cushion bolts to 25 N.m (18 lb ft).

  5. Install rear seat bottom cushion ear retainers into the rear seat back mounting bracket.

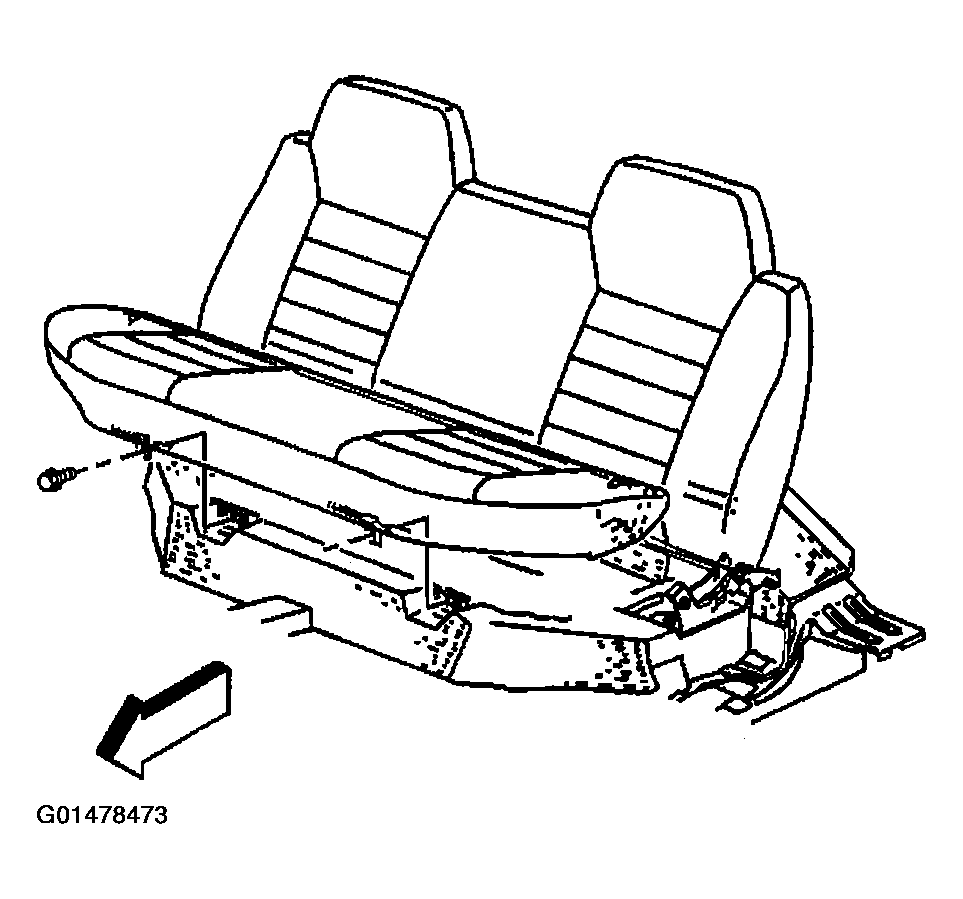

    Fig 2: Installing Rear Seat Bottom Cushion (Crew Cab)
    G01478473Courtesy of GENERAL MOTORS CORP.
