Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat belt buckle assembly to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the rear seat belt buckle assembly retaining nuts.

    Tighten

    Tighten the rear seat belt buckle assembly retaining nuts to 80 N.m (59 lb ft).

  3. Install the rear seat bottom cushion to the vehicle.

    Insure the seat bottom frame engages into the tabs on the rear seat back bracket.

  4. Install the rear seat bottom bolts.

    Tighten

    Tighten the rear seat bottom bolts to 25 N.m (18 lb ft).

  5. Install the rear seat bottom cushion ear retainers into the rear seat back mounting bracket.

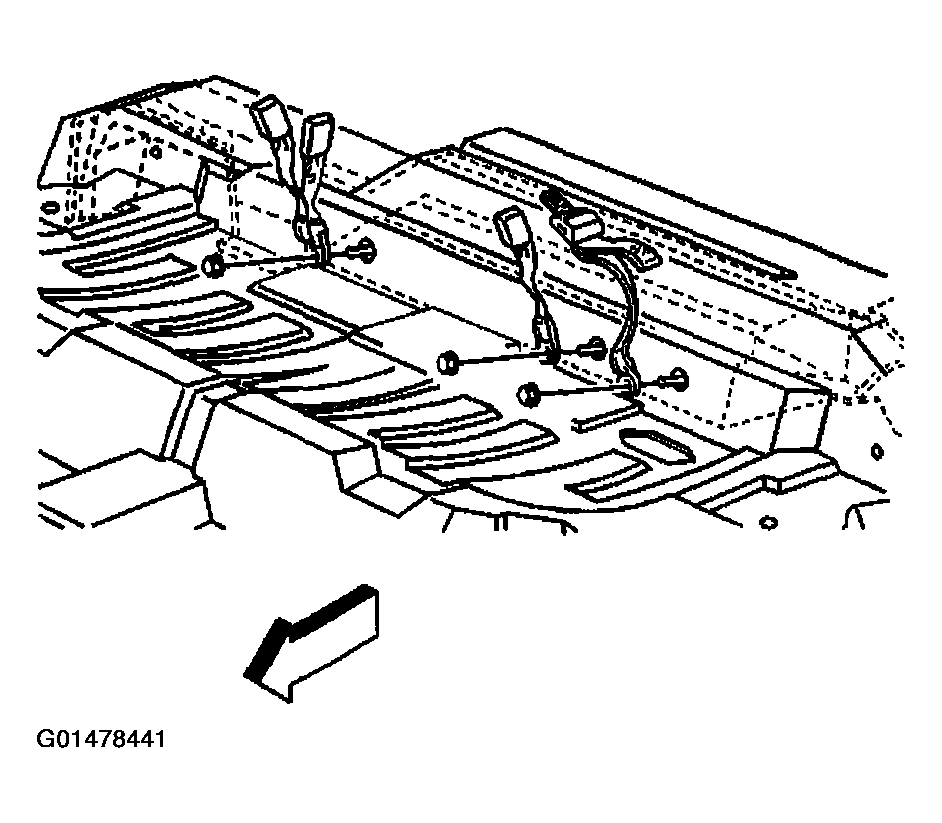

    Fig 1: Installing Rear Seat Belt Buckle Assembly (Crew Cab)
    G01478441Courtesy of GENERAL MOTORS CORP.
