Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Perform the following steps in order to inspect the window latch assembly for proper adjustment:
1. Hold the outside window handle.
2. Try to move the window in and out.
3. If the latch is misaligned to the striker, a rattle condition will exist.
4. Inspect the window for a snug fit against the top and the sides of the body opening.
If the latch is misaligned and/or the window is not snug against the weatherstrip, adjust the latch using the following procedure.
Remove the endgate or the liftgate trim panel.

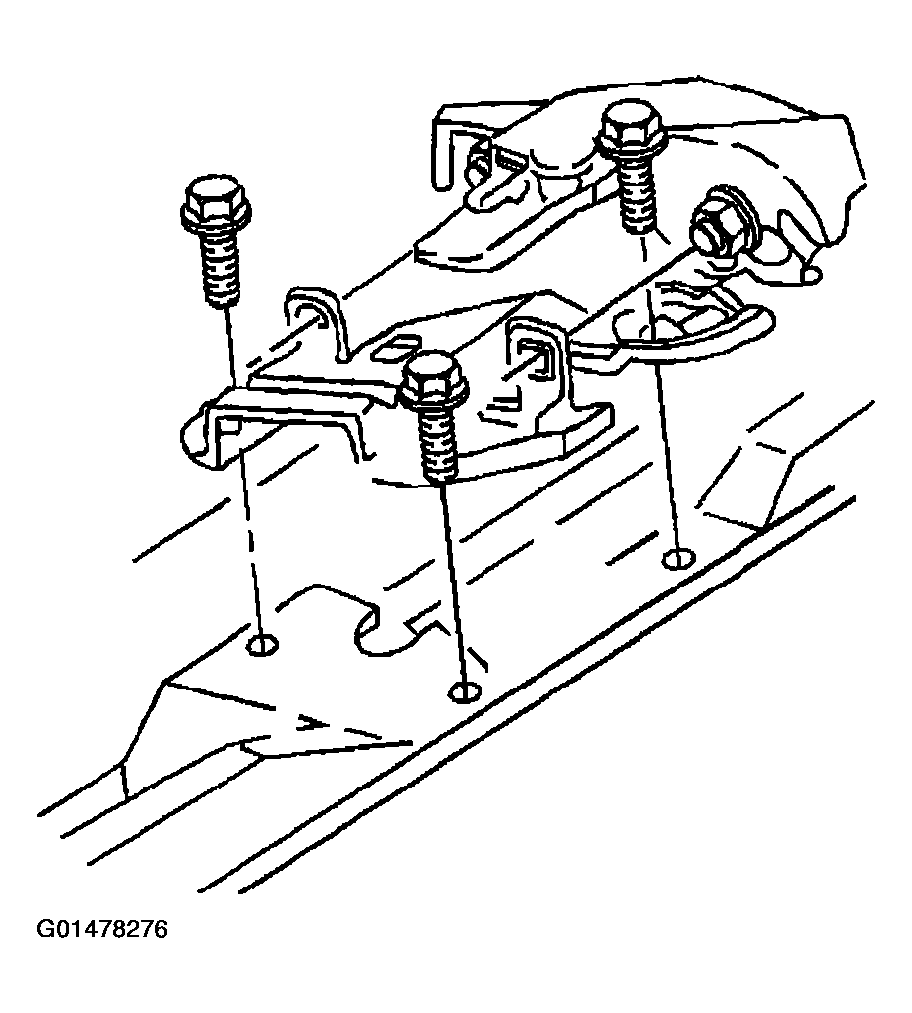

Fig 1: Rear Lift Window Latch
Courtesy of GENERAL MOTORS CORP.

Refer to TRIM PANEL REPLACEMENT - END GATE or TRIM PANEL REPLACEMENT - LIFT GATE .
Remove the endgate cover. Refer to END GATE COVER REPLACEMENT .
Use a flat-bladed tool in order to carefully pry the window latch forward and backward.
This will help to loosen the window latch nut.
Adjust the latch assembly location.
