Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the J 38778  in order to remove the rear header garnish molding.

    Insert the J 38778  and work along the front edge of the trim panel from one end to the other.

  2. Remove the cargo lamp from the roof rear header garnish molding. Refer to CARGO LAMP REPLACEMENT in Lighting Systems.

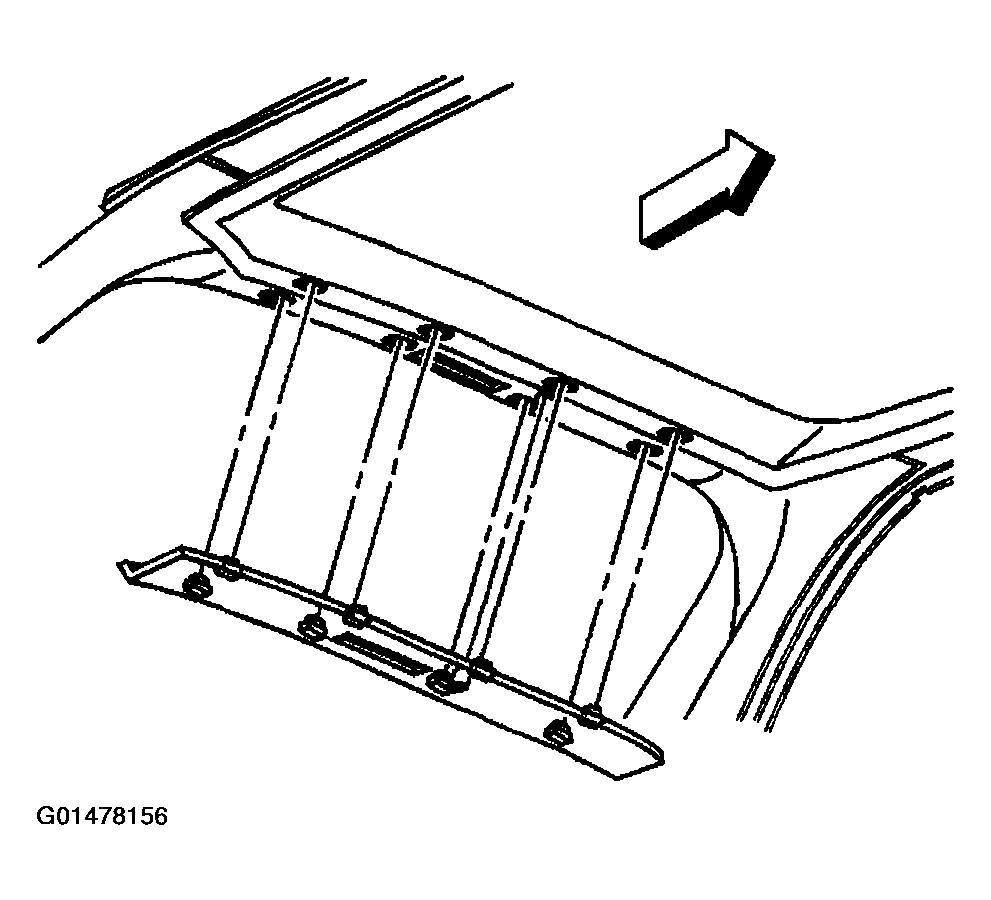

    Fig 1: Rear Upper Garnish Molding
    G01478156Courtesy of GENERAL MOTORS CORP.
