Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 bolts securing the rear seat bottom to the floor.
  2. Carefully pull seat cushions ears to release retainers from the seat back mounting bracket.
  3. Lift the rear seat bottom out of the vehicle.

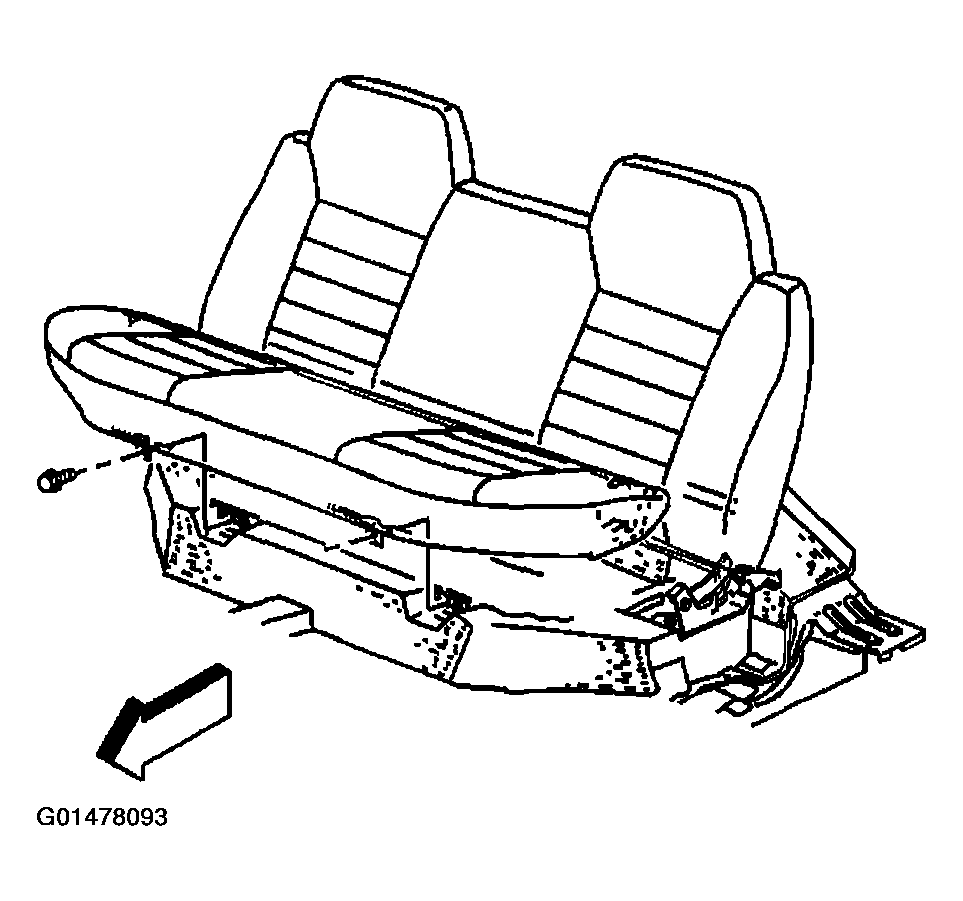

    Fig 1: Removing Rear Seat Bottom From Vehicle
    G01478093Courtesy of GENERAL MOTORS CORP.
  4. Remove the 2 bolts securing the rear seat back to the floor.
  5. Remove the 2 nuts and washers securing the rear seat back to the floor studs.
  6. Remove the rear seat back from the vehicle.

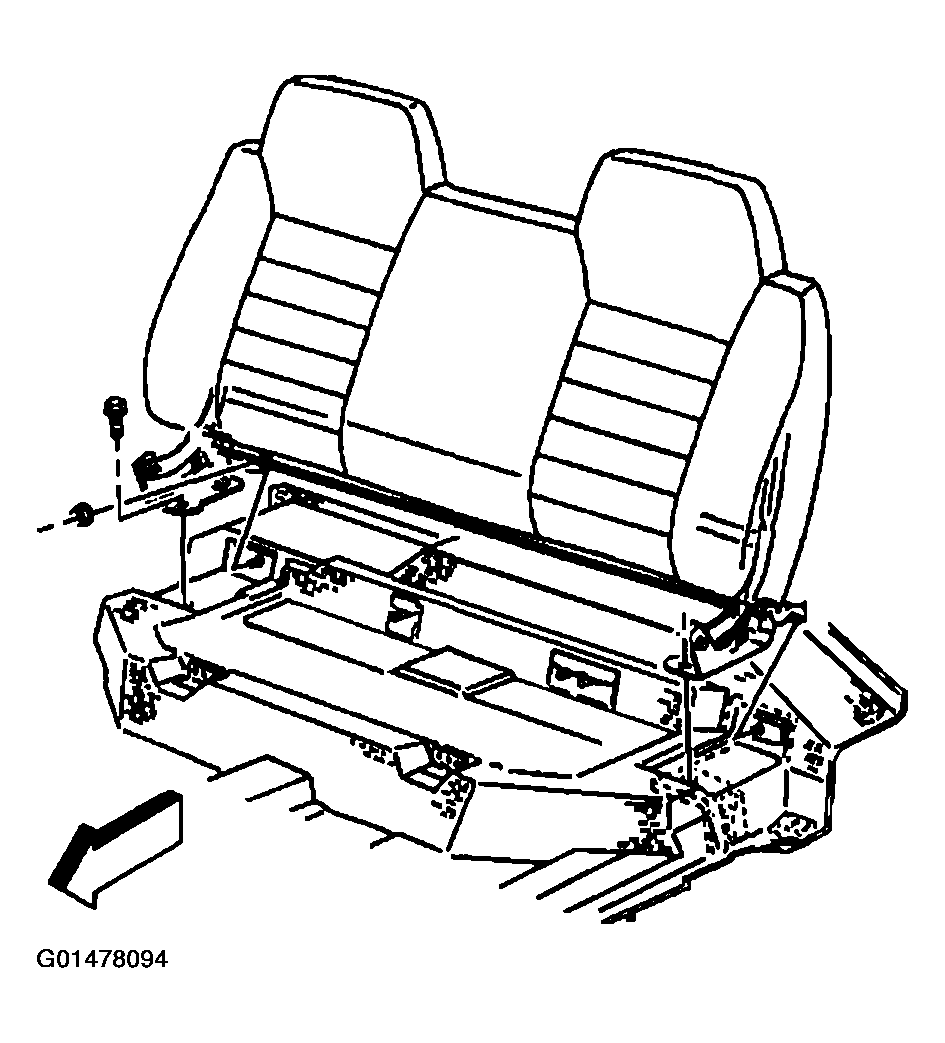

    Fig 2: Removing Rear Seat Back From Vehicle
    G01478094Courtesy of GENERAL MOTORS CORP.
