Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat bottom pad to the seat bottom.
  2. Install the seat bottom cover over the pad.
  3. Engage the hook and loop strips (1) that retain the seat pad (3) to the seat cover (2).

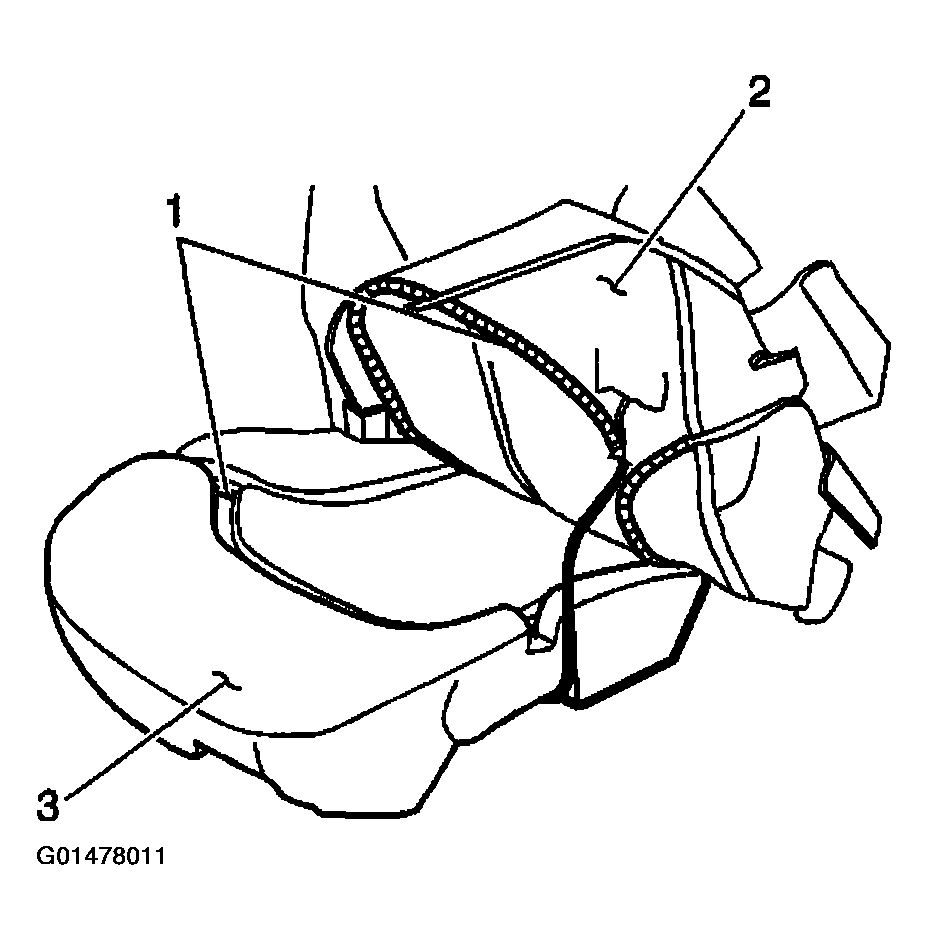

    Fig 1: Installing Hook & Loop Strips That Retain Seat Pad To Seat Cover
    G01478011Courtesy of GENERAL MOTORS CORP.
  4. Install the seat belt buckle through the slot in the seat.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the seat belt holder bolt.

    Tighten

    Tighten the seat belt buckle bolt to 70 N.m (52 lb ft).

  6. Install the seat back to seat bottom bolts.
  7. Install the power seat control switch, if equipped.

    Refer to SEAT SWITCH REPLACEMENT - Power .

  8. Install the seat back release lever, if equipped.

    Refer to SEAT BACK RECLINER HANDLE REPLACEMENT - Front .

  9. Install the manual lumbar support knob, if equipped. Refer to LUMBAR SUPPORT KNOB REPLACEMENT .
    Fig 2: Installing Seat Belt Buckle Through Slot In Seat
    G01478012Courtesy of GENERAL MOTORS CORP.
  10. Connect the electrical connections, as needed.
  11. Install the seat back recliner assembly, if equipped. Refer to SEAT BACK RECLINER REPLACEMENT - Front .
  12. Install the cupholder and bracket, if equipped.

    Refer to CUPHOLDER REPLACEMENT - Front Seat .

  13. Engage the J-strips to the seat bottom frame.

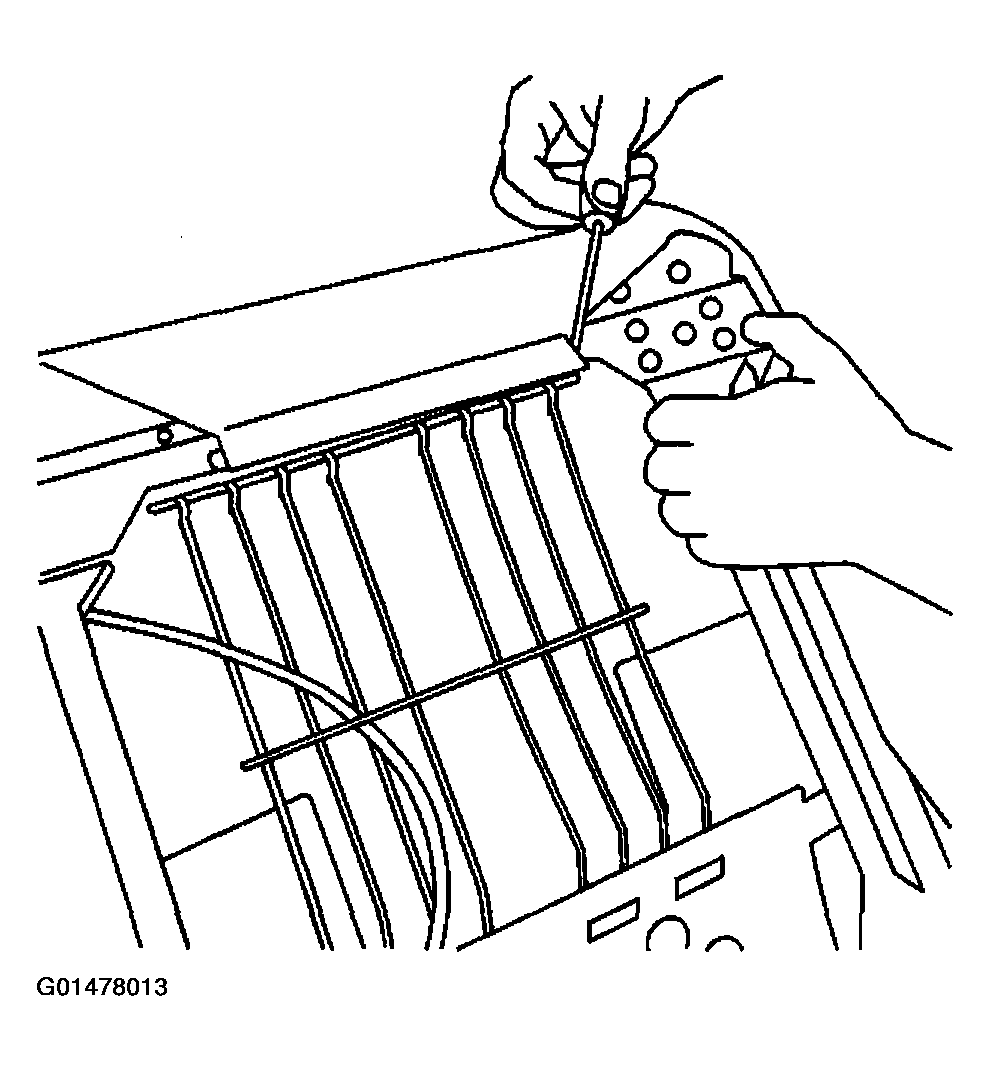

    Fig 3: Installing J-Strips To Seat Bottom Frame
    G01478013Courtesy of GENERAL MOTORS CORP.
  14. Install the trim plate.
  15. Install the seat to the vehicle. Refer to SEAT REPLACEMENT - Bucket .

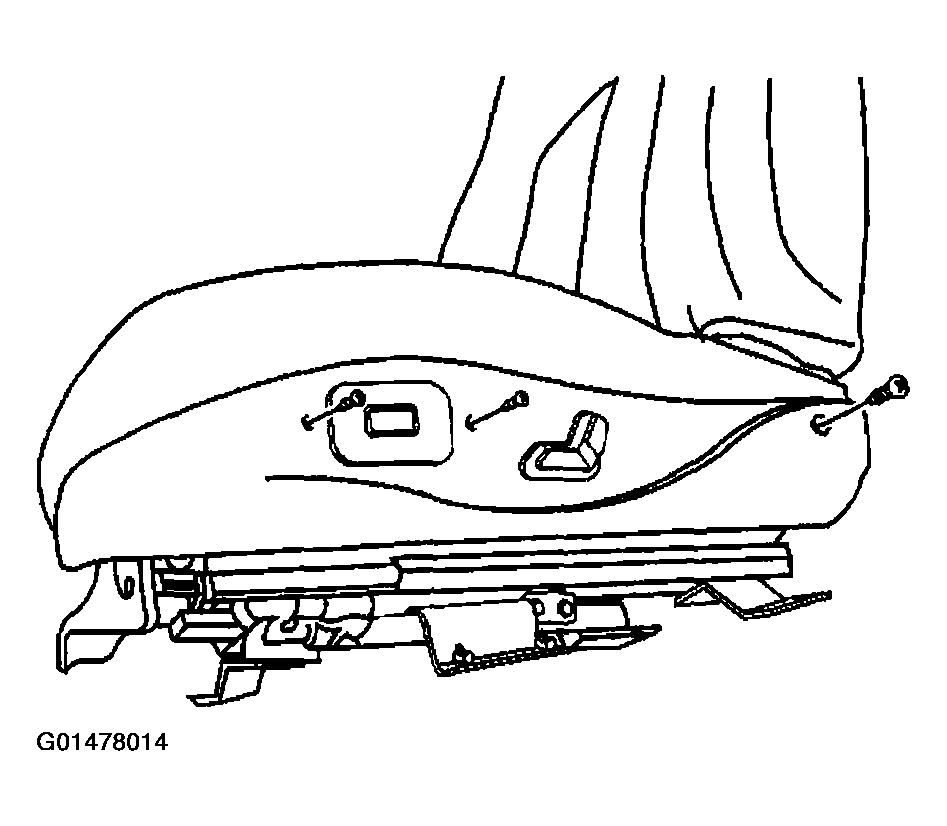

    Fig 4: Trim Plate
    G01478014Courtesy of GENERAL MOTORS CORP.
