Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the license plate lamps. Refer to LICENSE LAMP REPLACEMENT (W/ STEP BUMPER) or LICENSE LAMP REPLACEMENT (W/O STEP BUMPER) or LICENSE LAMP REPLACEMENT (FILLER PANEL) in Lighting Systems.
  2. Remove the license plate from the bumper.
  3. Remove the step pad from the bumper. Refer to STEP PAD REPLACEMENT - REAR BUMPER (PICKUP)  or STEP PAD REPLACEMENT - REAR BUMPER (UTILITY) .
  4. Remove the nuts and the bolts that retain the bumper impact bar to the bumper brackets.
  5. Remove the bumper impact bar from the vehicle.

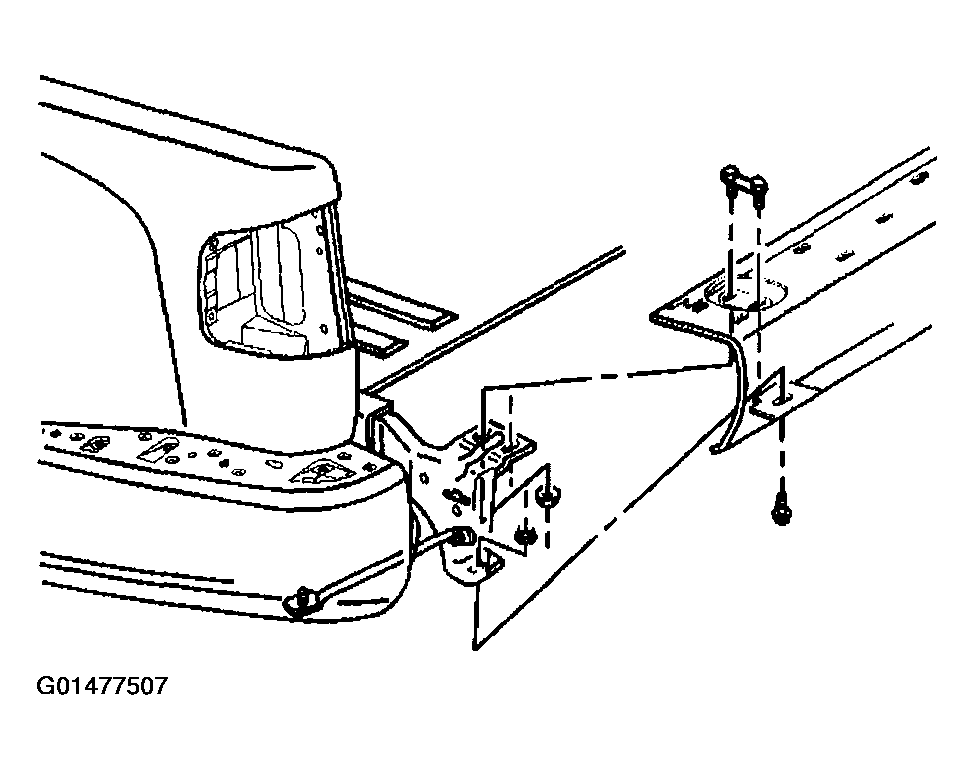

    Fig 1: Removing Nuts & Bolts Retaining Bumper Impact Bar To Bumper Brackets
    G01477507Courtesy of GENERAL MOTORS CORP.
