Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Disconnect the electrical connector from the foglamps.
  3. Remove the push-pins that retain the fascia to the impact bar.
  4. Remove the screws that retain the fascia to the fascia support.
  5. Remove the fascia from the impact bar retainers.
  6. Remove the fascia from the vehicle.

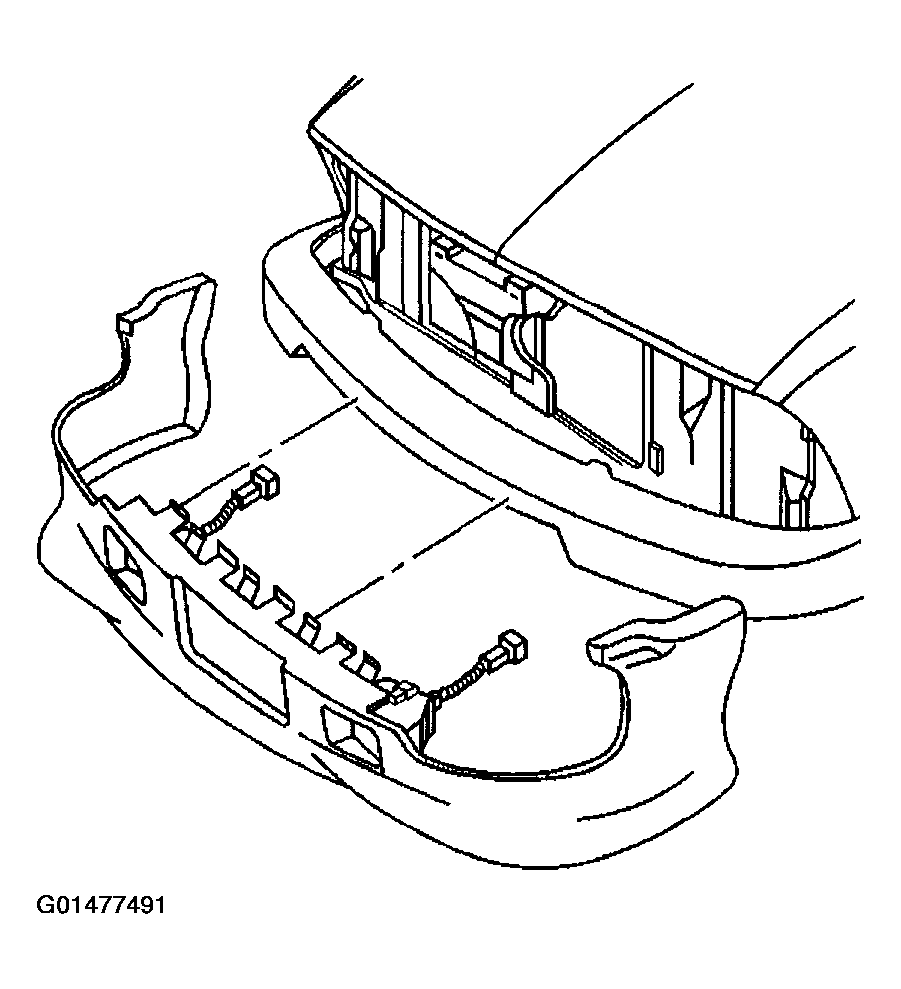

    Fig 1: Removing Fascia From Impact Bar Retainers
    G01477491Courtesy of GENERAL MOTORS CORP.
