Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fascia to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the fascia screws to the impact bar retainers.

    Tighten

    Tighten the fascia screws to 1.9 N.m (17 Ib. in).

  3. Install the push-pins that retain the fascia to the impact bar.
  4. Connect the electrical connector to the foglamps.
  5. Lower the vehicle.

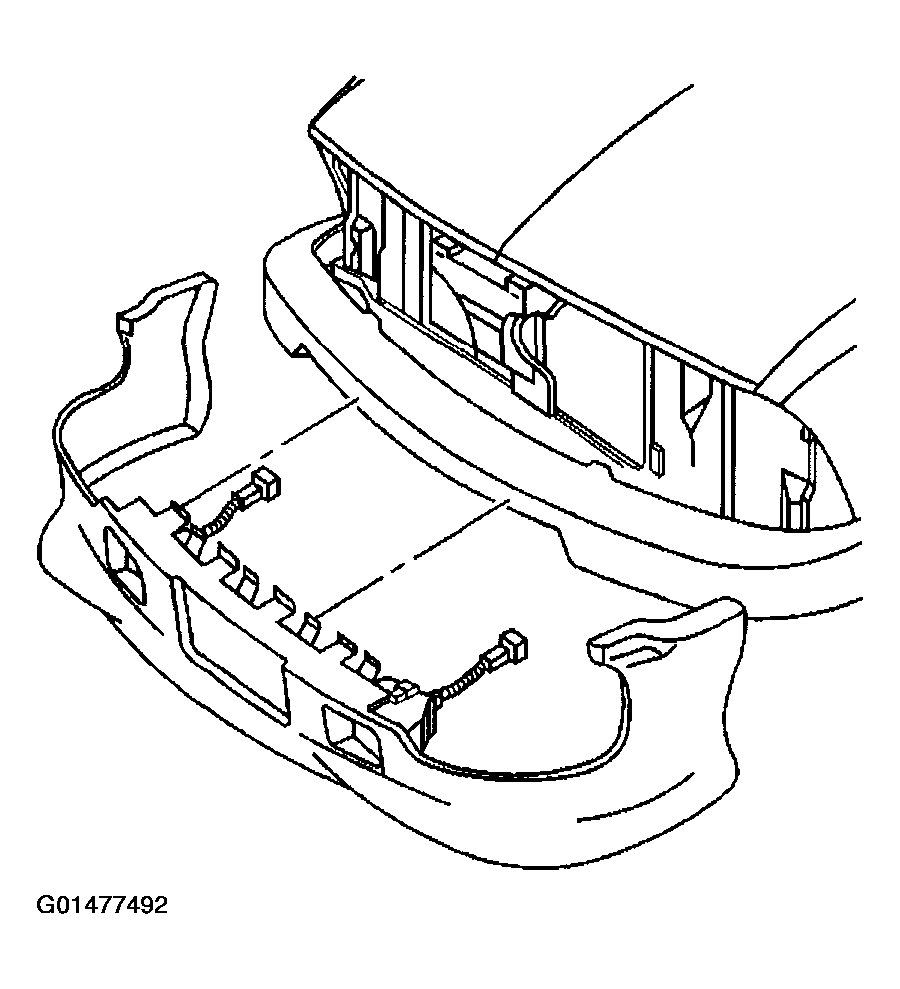

    Fig 1: Installing Fascia To Impact Bar Retainers
    G01477492Courtesy of GENERAL MOTORS CORP.
