Auxiliary Oil Cooler: Installation

WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary oil cooler to the vehicle. Install the bolts (1) and the push pins (2) that retain the auxiliary oil cooler to the radiator brace. See Fig 1 .
  2. Tighten the bolts to specification. See TORQUE SPECIFICATIONS  .
  3. Connect the transmission oil cooler lines to the auxiliary cooler. See AUXILIARY OIL COOLER HOSE/PIPES & FITTINGS  .
  4. Install the front grill assembly. Fill transmission with appropriate fluid to proper level. See LUBRICATION  .

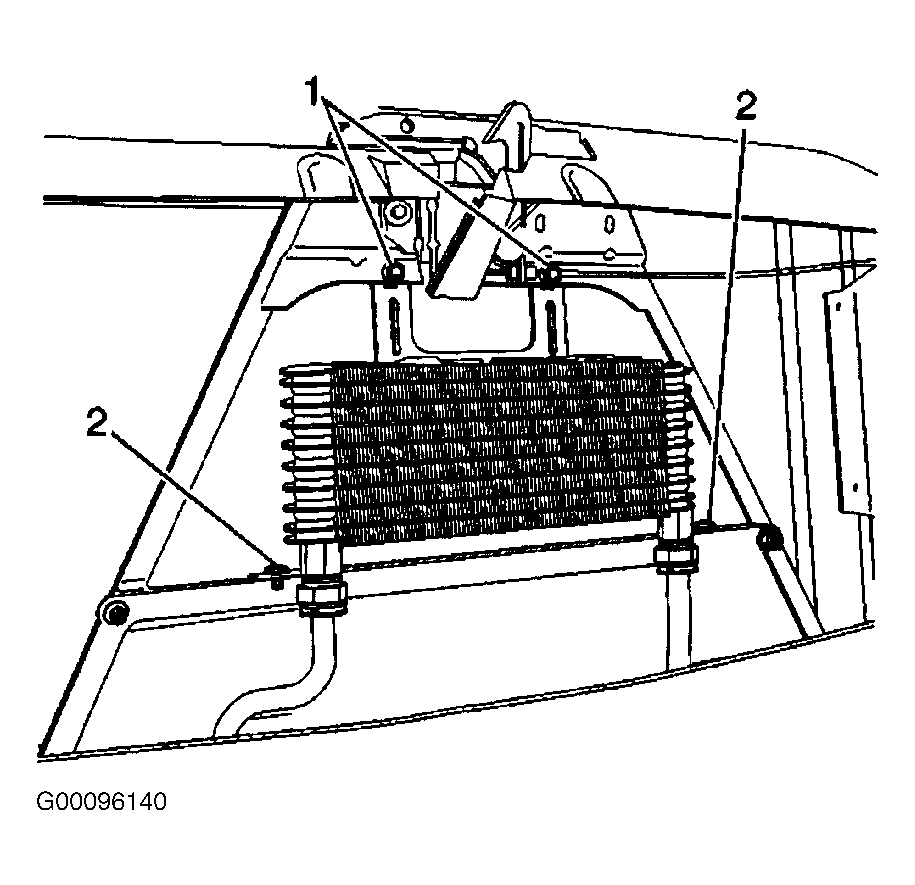

Fig 1: Removing & Installing Auxiliary Oil Cooler
G00096140Courtesy of GENERAL MOTORS CORP.
