Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  2. Push up on the J-spring in order to release the storage compartment door.

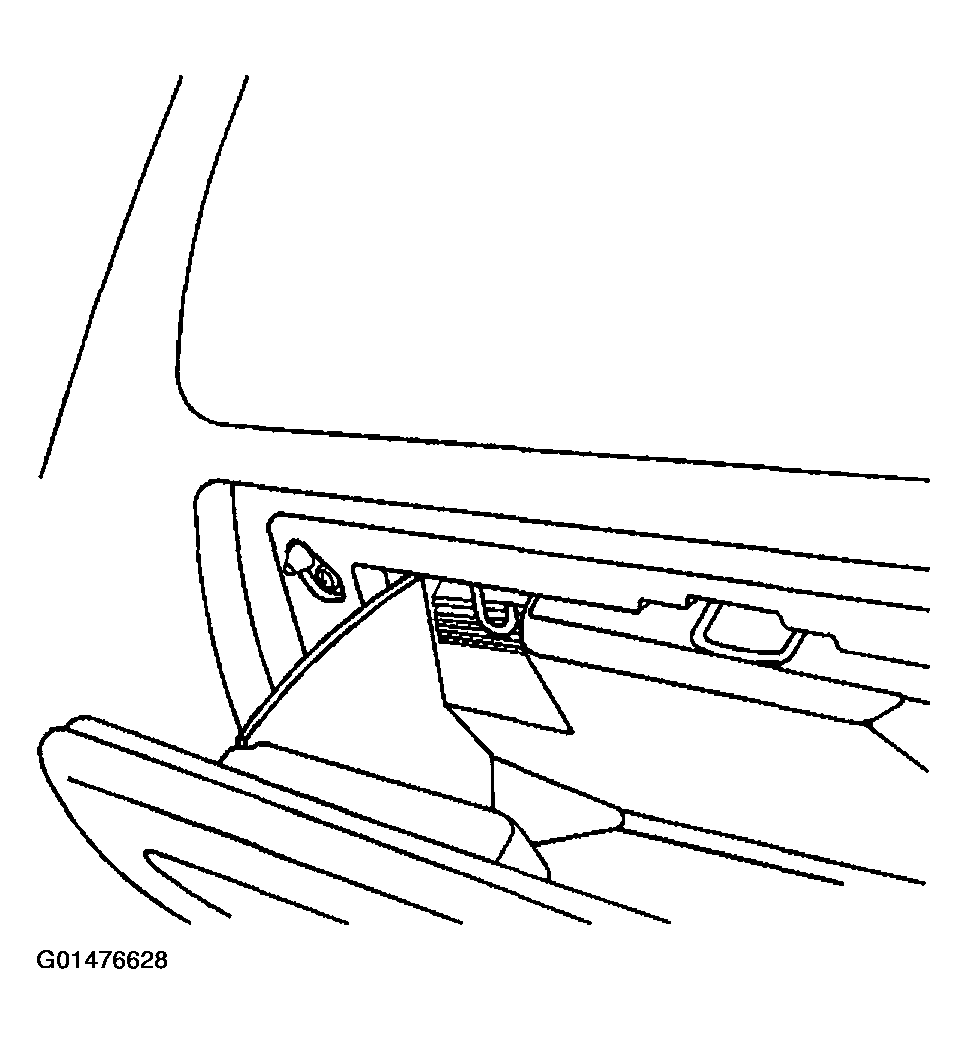

    Fig 1: Releasing Storage Compartment Door
    G01476628Courtesy of GENERAL MOTORS CORP.
  3. Remove the screws that retain the instrument panel compartment door hinges to the instrument panel.
  4. Remove the instrument panel storage compartment door from the instrument panel.

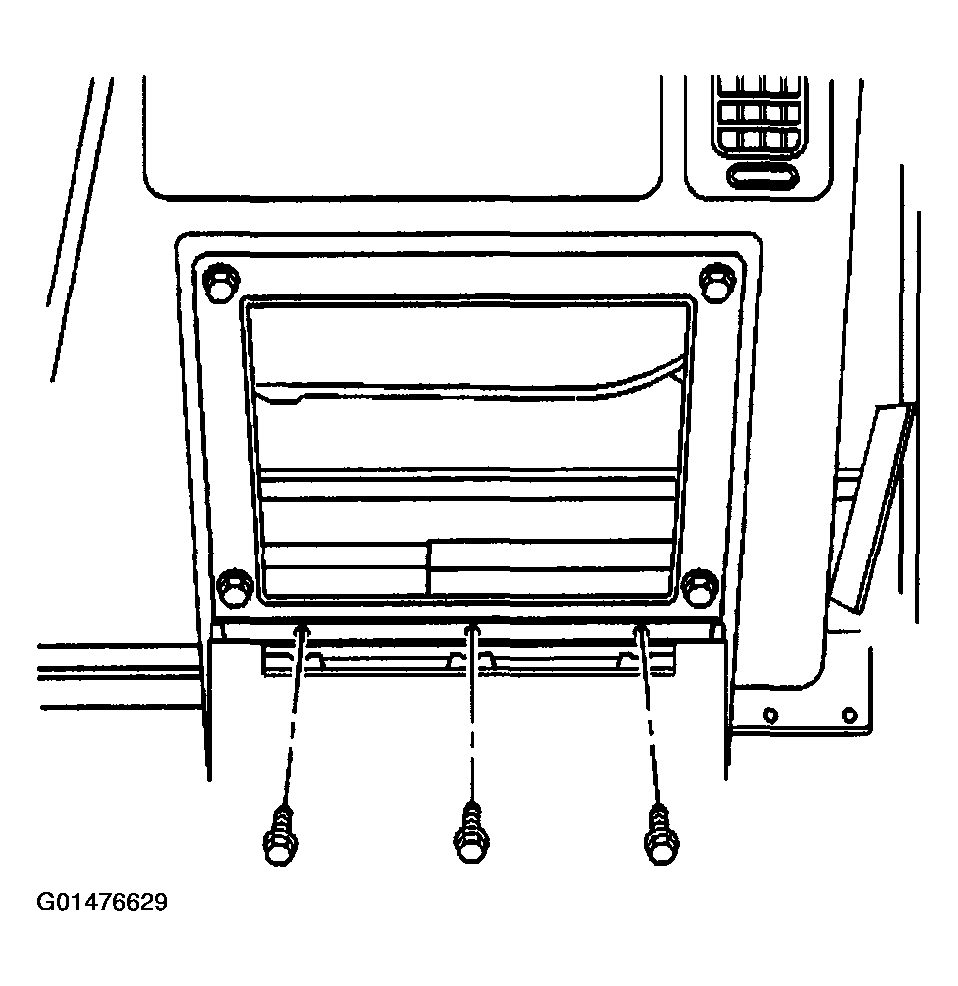

    Fig 2: Removing Instrument Panel Compartment Door Hinges To Instrument Panel Retaining Screws
    G01476629Courtesy of GENERAL MOTORS CORP.
  5. Remove the screws that retain the instrument panel compartment bezel to the instrument panel.
  6. Remove the instrument panel compartment bezel from the instrument panel.
  7. Disconnect the electrical connector from the instrument panel compartment lamp and switch assembly.

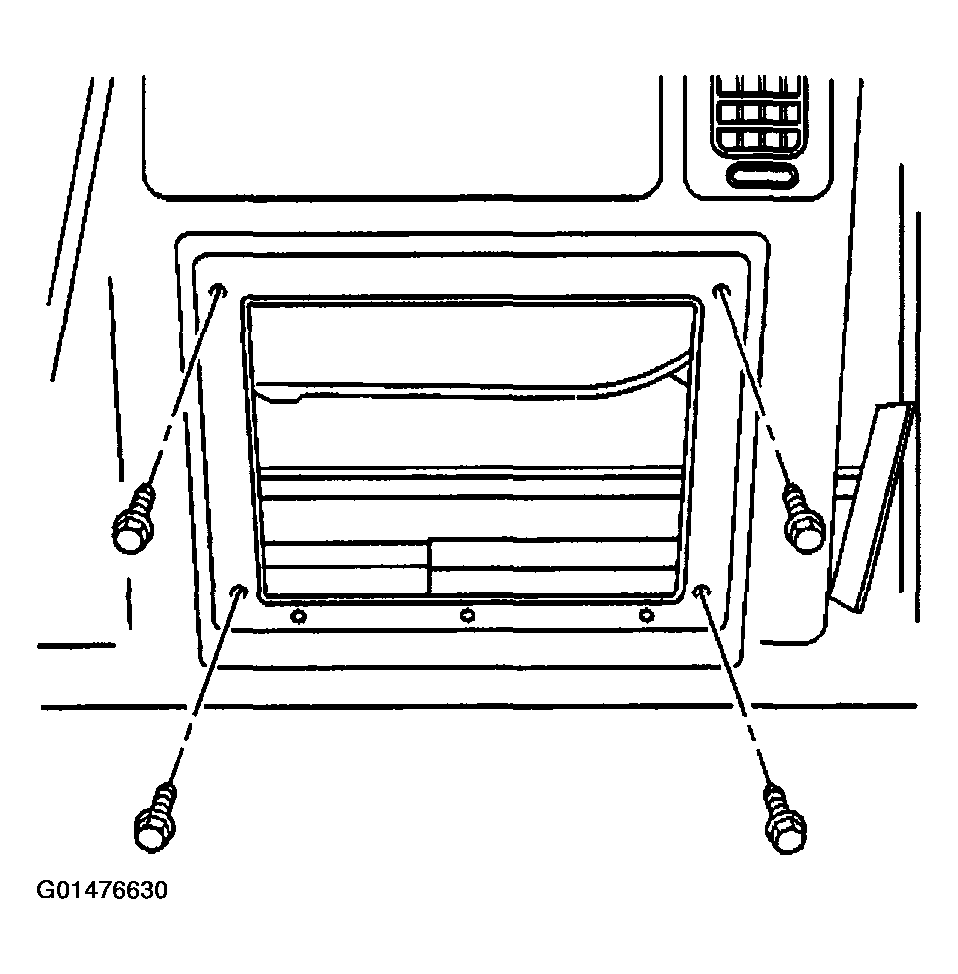

    Fig 3: Removing Instrument Panel Compartment Bezel To Instrument Panel Retaining Screws
    G01476630Courtesy of GENERAL MOTORS CORP.
