Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the console wiring harness to the console.
  2. Install the rear seat audio control to the console.

    Refer to AUDIO CONTROL REPLACEMENT -- REAR SEAT in Entertainment.

  3. Install the amplifier from the console. Refer to AMPLIFIER REPLACEMENT in Entertainment.
  4. Install the compact disc player from the console.

    Refer to REMOTE CD PLAYER REPLACEMENT in Entertainment.

    Important:  Do not pinch the instrument panel to console wiring harness during this process.

  5. Install the console to the vehicle by lifting the console (1) over and onto the floor studs.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the fasteners (2) that retain the console to the vehicle.

    Tighten

    Tighten the console to the vehicle retainers to 10 N.m (88 lb in).

  7. Install the convenience tray to the armrest storage compartment.

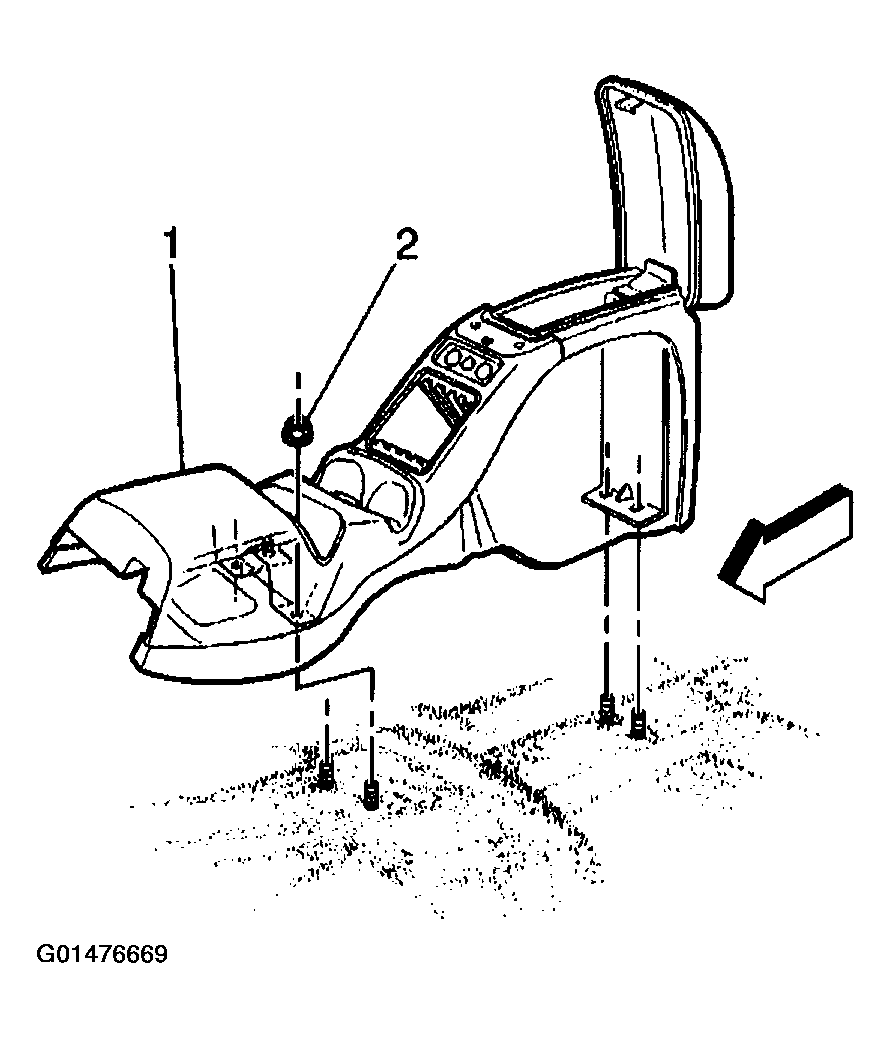

    Fig 1: Installing Console To Vehicle Floor Retaining Screws
    G01476669Courtesy of GENERAL MOTORS CORP.

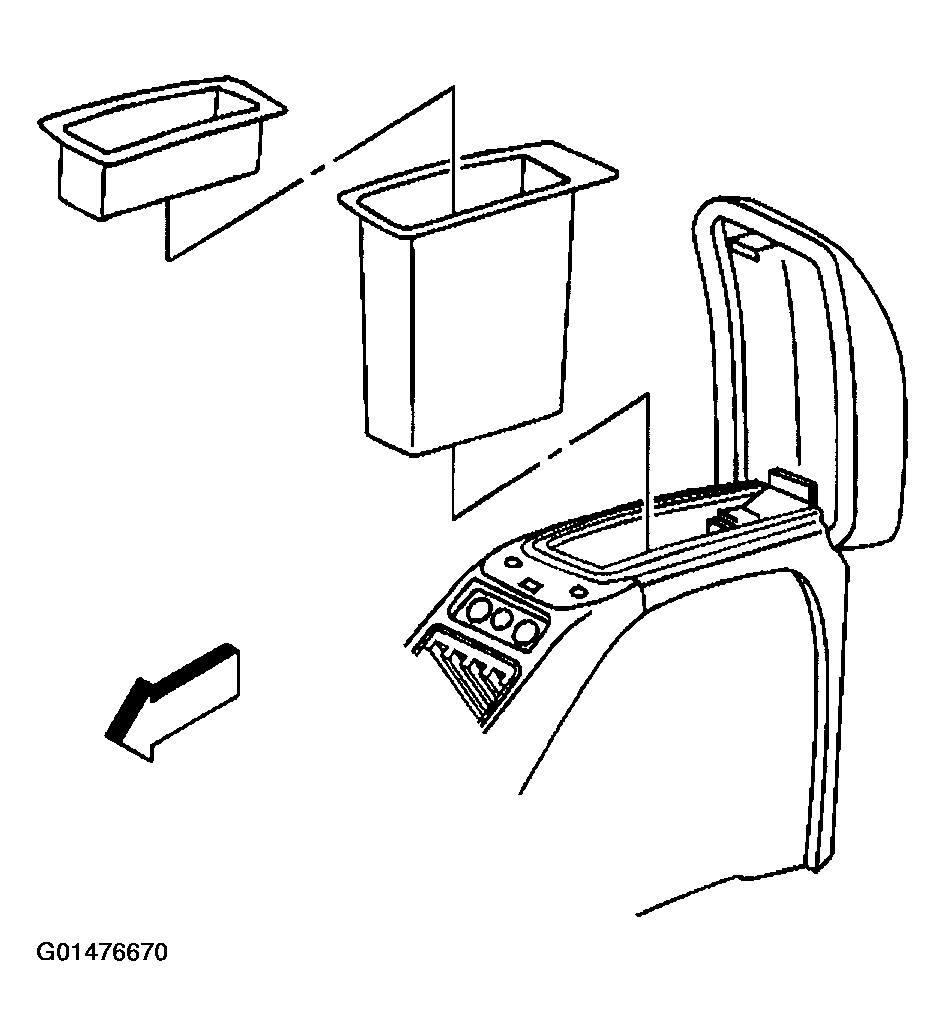

    Fig 2: Installing Convenience Tray To Armrest Storage Compartment
    G01476670Courtesy of GENERAL MOTORS CORP.
  8. Connect the instrument panel to console wiring harness connection
  9. Install the passenger side toe-panel by firmly pressing the toe-panel into place.
  10. Carefully press the wood shifter assembly close-out into place. The closeout panel will need to be rotated in order to fit over the shift handle
  11. Install the front ashtray to the console by firmly pressing the ashtray into place.

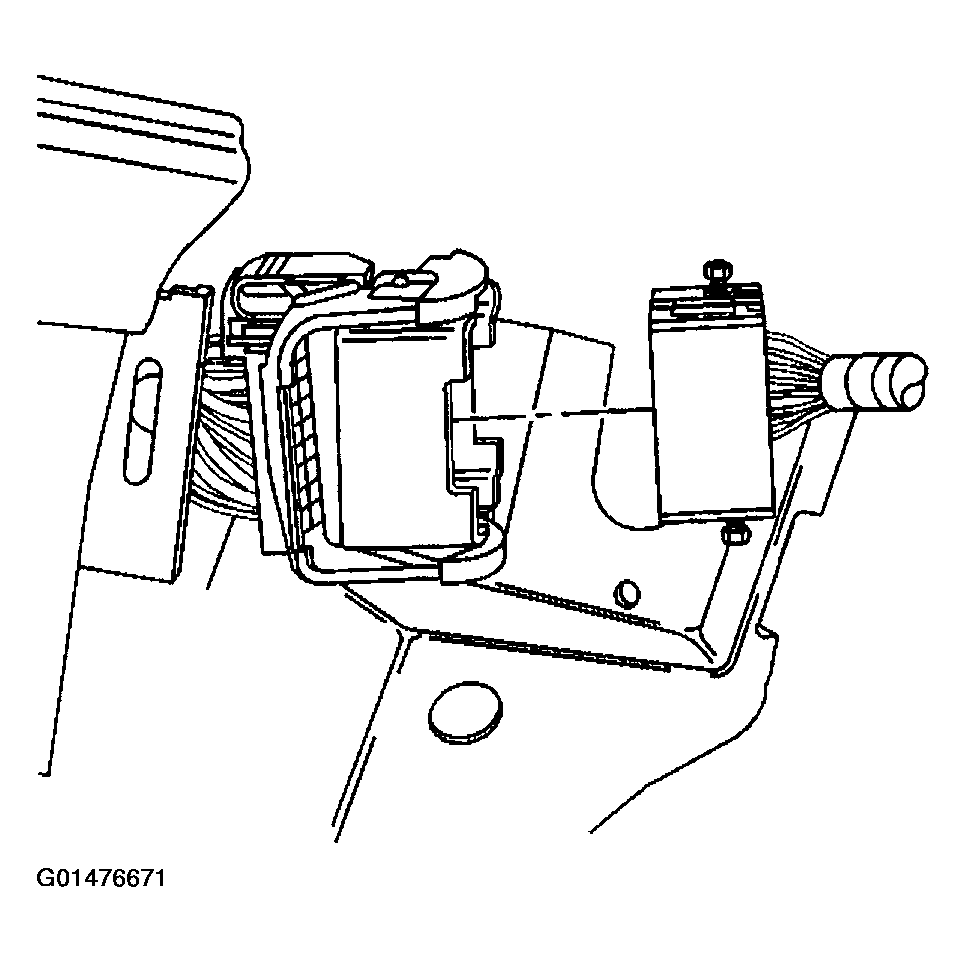

    Fig 3: Connecting Instrument Panel To Console Wiring Harness Connection
    G01476671Courtesy of GENERAL MOTORS CORP.
