Instrument Cluster Inoperative

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

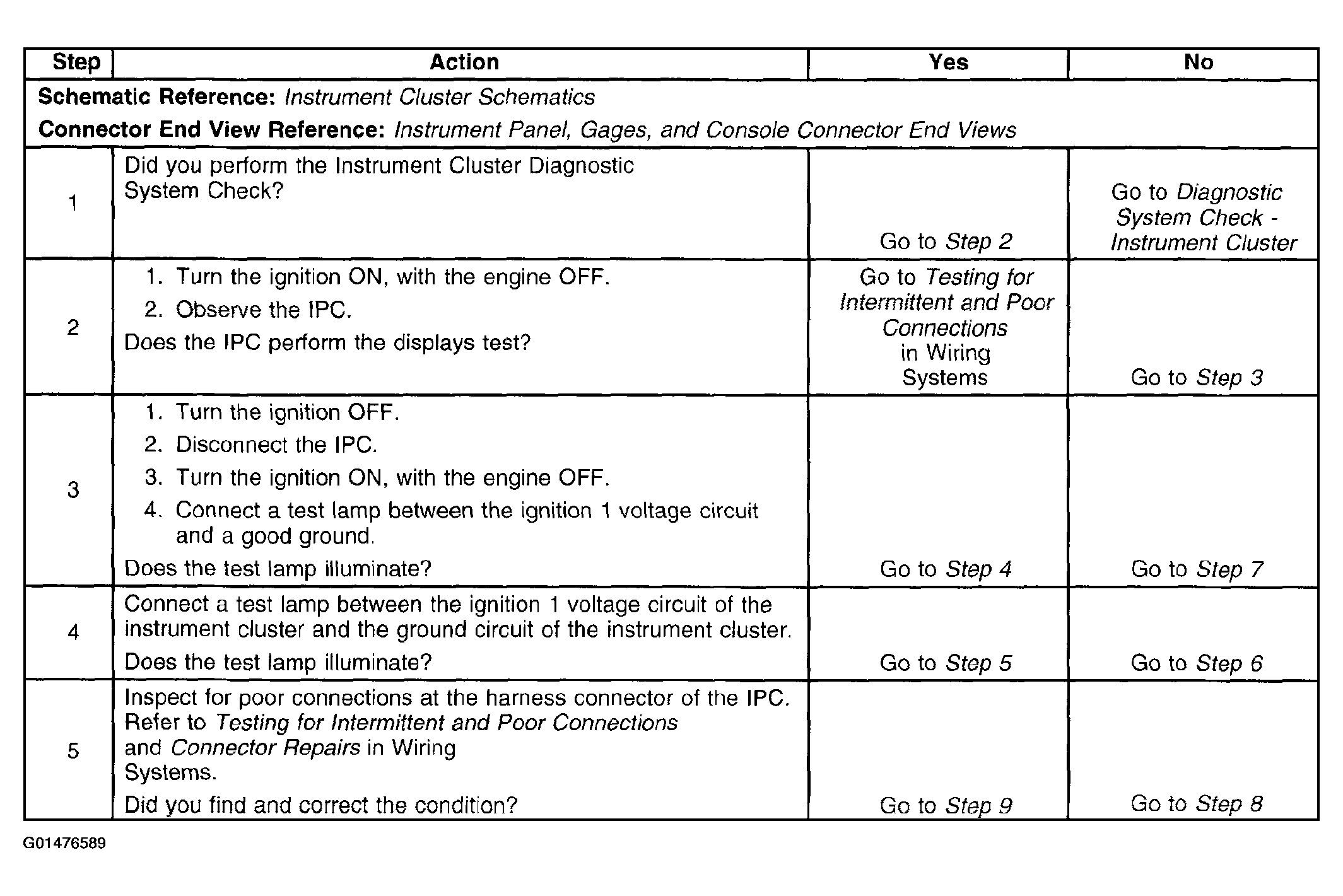

Fig 1: Instrument Cluster Inoperative (1 Of 2)
G01476589Courtesy of GENERAL MOTORS CORP.

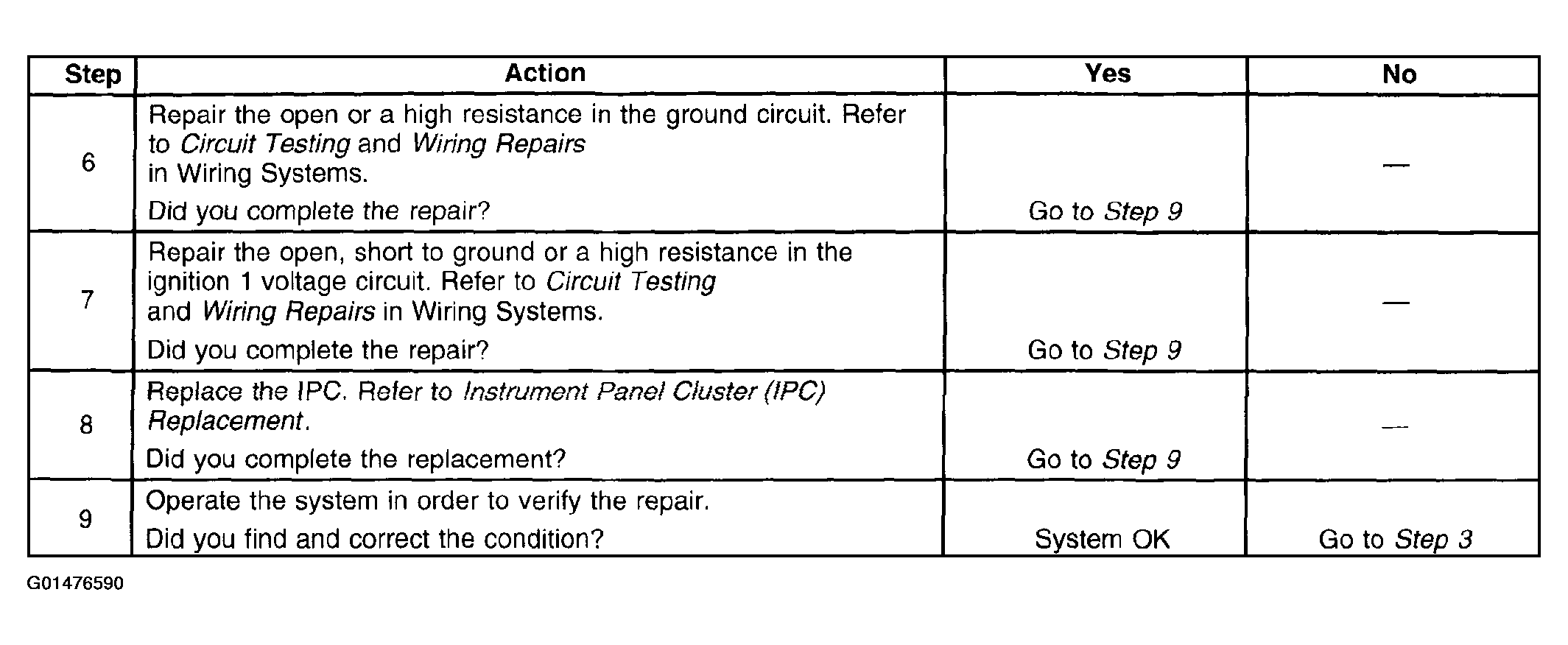

Fig 2: Instrument Cluster Inoperative (2 Of 2)
G01476590Courtesy of GENERAL MOTORS CORP.
