Test Description

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This step tests for a high resistance in the signal circuit and the low reference circuit of the fuel level sensor.
  2. 13. DTCs will be set in the PCM when you perform this diagnostic table.

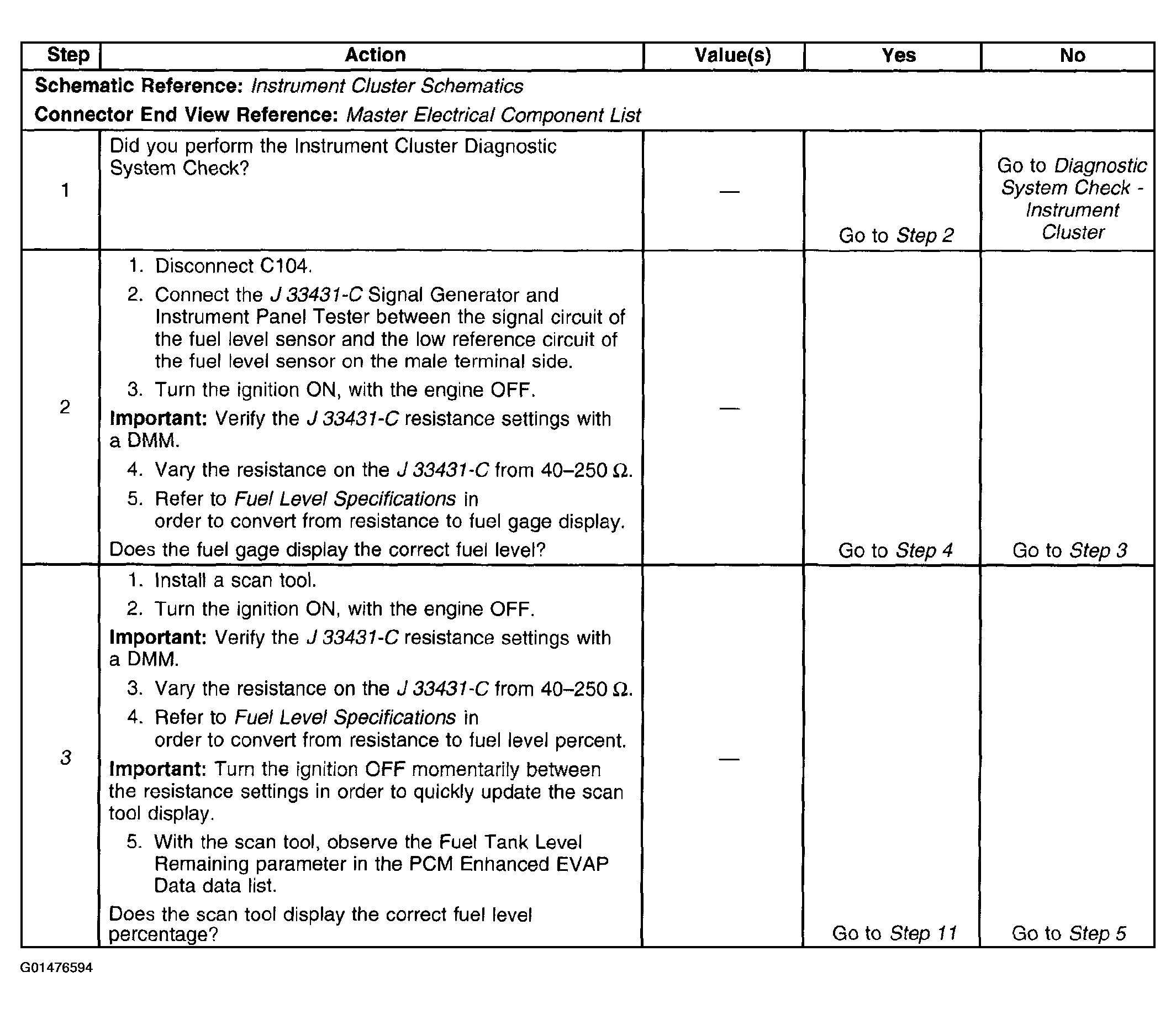

    Fig 1: Fuel Gage Inaccurate Or Inoperative (1 Of 2)
    G01476594Courtesy of GENERAL MOTORS CORP.

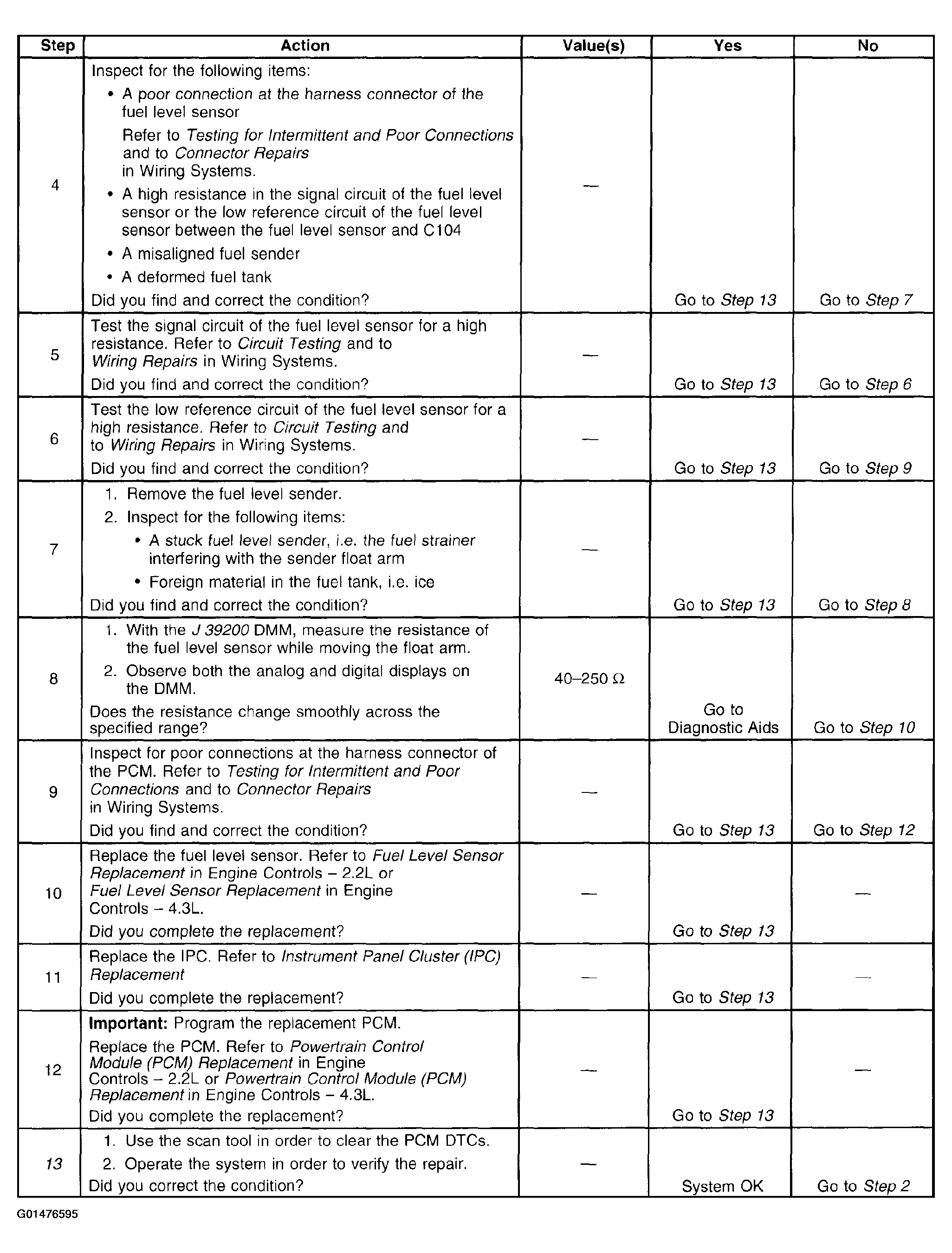

    Fig 2: Fuel Gage Inaccurate Or Inoperative (2 Of 2)
    G01476595Courtesy of GENERAL MOTORS CORP.
