Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hose clips into the body.
  2. Install the hose to the liftgate harness.
  3. Install the hose to the body harness.
  4. Install the body side trim panel. Refer to TRIM PANEL REPLACEMENT -- BODY SIDE (STANDARD CAB PICKUP) or TRIM PANEL REPLACEMENT -- BODY SIDE (EXTENDED CAB PICKUP) or TRIM PANEL REPLACEMENT -- BODY SIDE (2-DOOR UTILITY) or TRIM PANEL REPLACEMENT -- BODY SIDE (4-DOOR UTILITY) or TRIM PANEL REPLACEMENT -- BODY SIDE (CREW CAB) in Interior Trim.
  5. Install the liftgate door sill plate. Refer to DOOR SILL PLATE REPLACEMENT -- LIFT GATE or DOOR SILL PLATE REPLACEMENT -- END GATE in Interior Trim.
  6. Install the upper rear garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- REAR UPPER in Interior Trim.

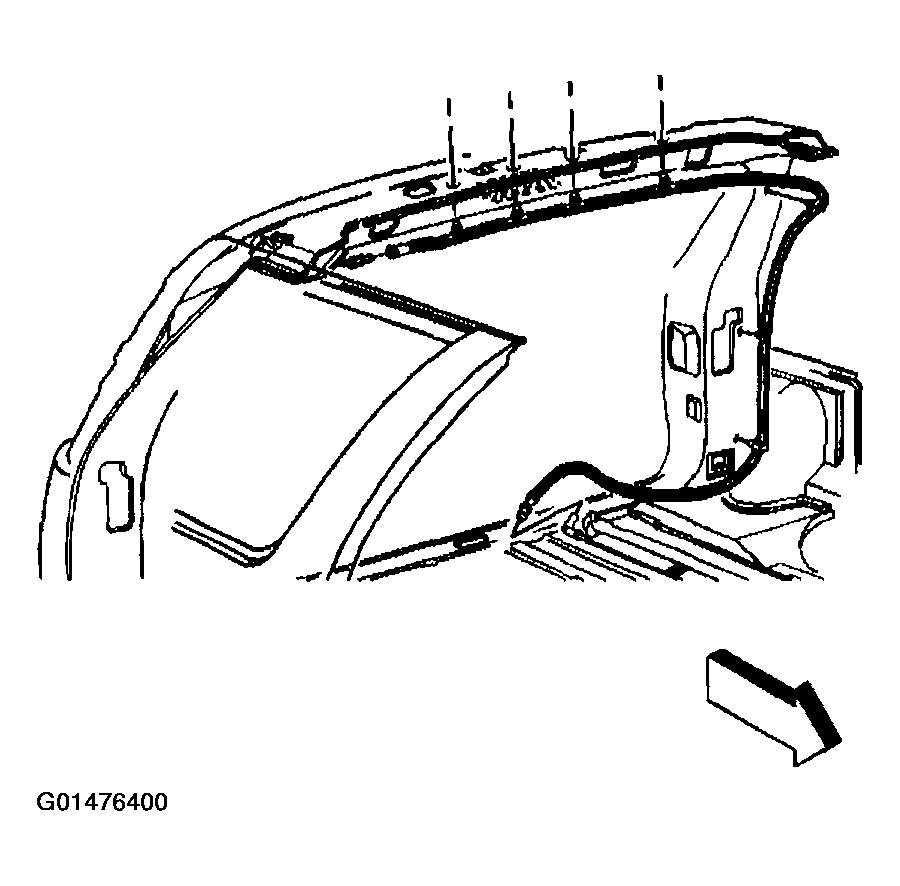

    Fig 1: Installing Hose Clips Into Body
    G01476400Courtesy of GENERAL MOTORS CORP.
