Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  2. Remove the battery positive cable cover.

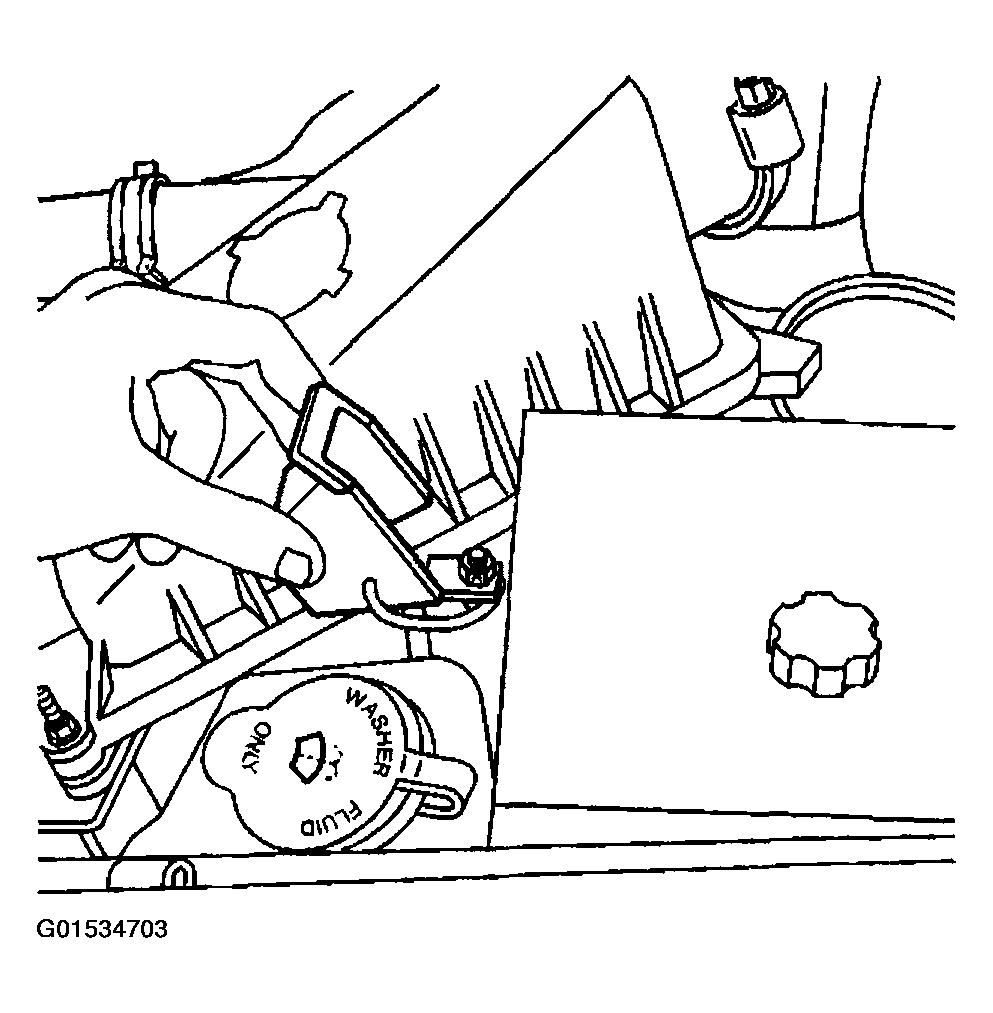

    Fig 1: Battery Positive Cable Cover
    G01534703Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery positive cable bolt.
  4. Remove the battery positive cable from the underhood electrical center.

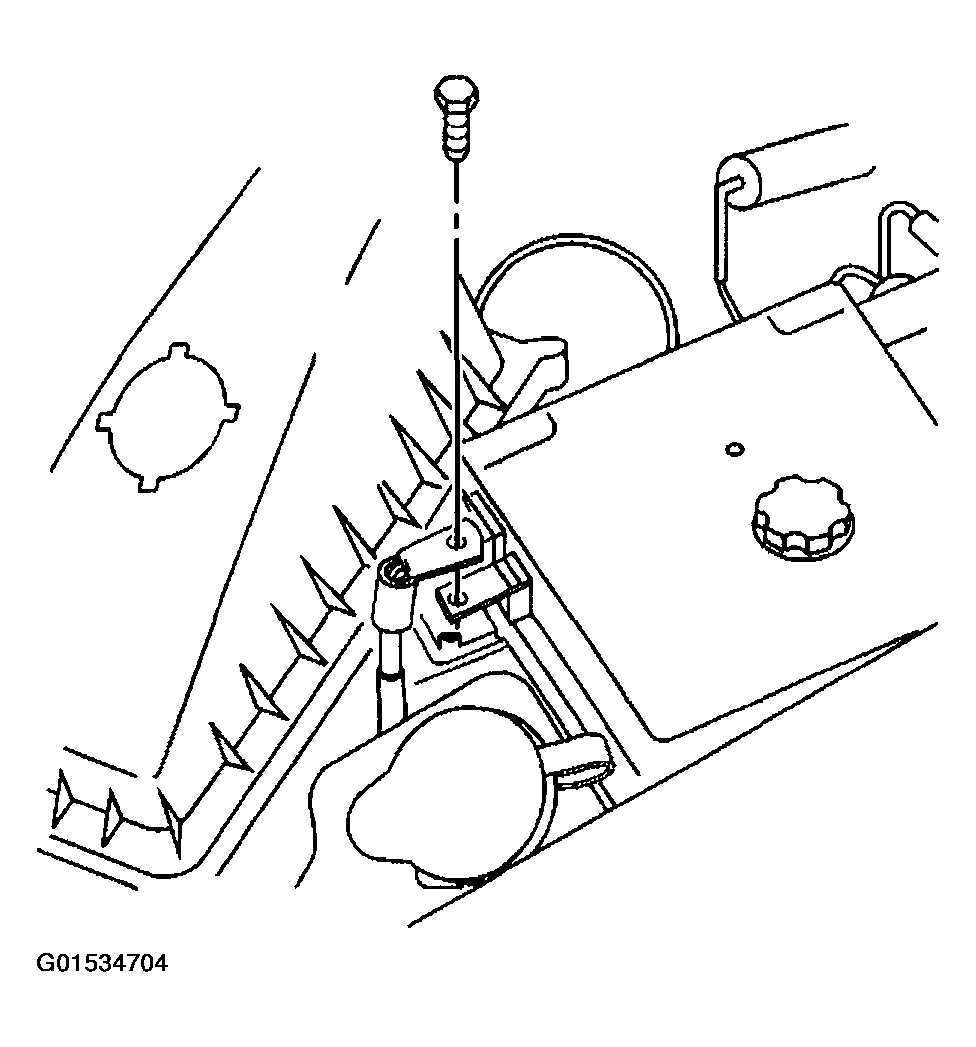

    Fig 2: Battery Positive Cable Bolt
    G01534704Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts that attach the underhood electrical center to the underhood electrical center support bracket.

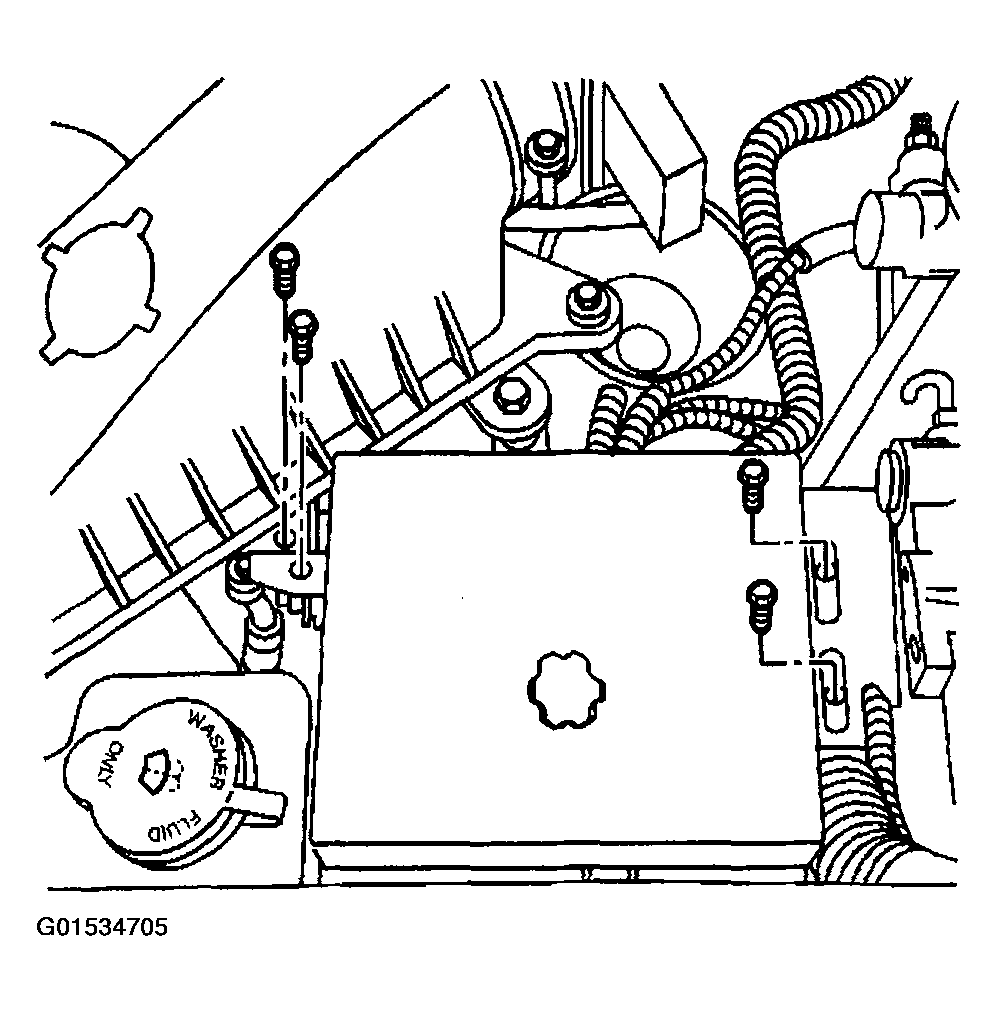

    Fig 3: Removing Underhood Electrical Center To Underhood Electrical Center Support Bracket Bolt
    G01534705Courtesy of GENERAL MOTORS CORP.
  6. Loosen the bolts that secure the electrical connectors to the bottom of the underhood electrical center.

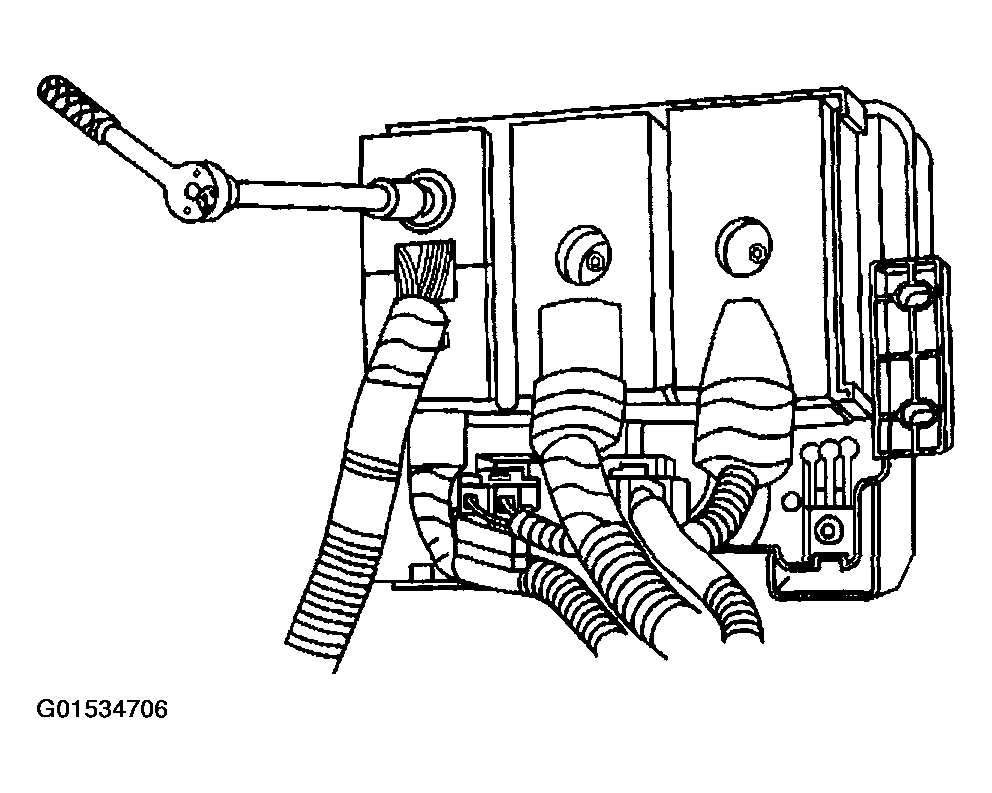

    Fig 4: Loosening Electrical Connectors To Bottom Underhood Electrical Center Bolt
    G01534706Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the electrical connectors from the underhood electrical center.
  8. Remove the underhood electrical center from the vehicle.

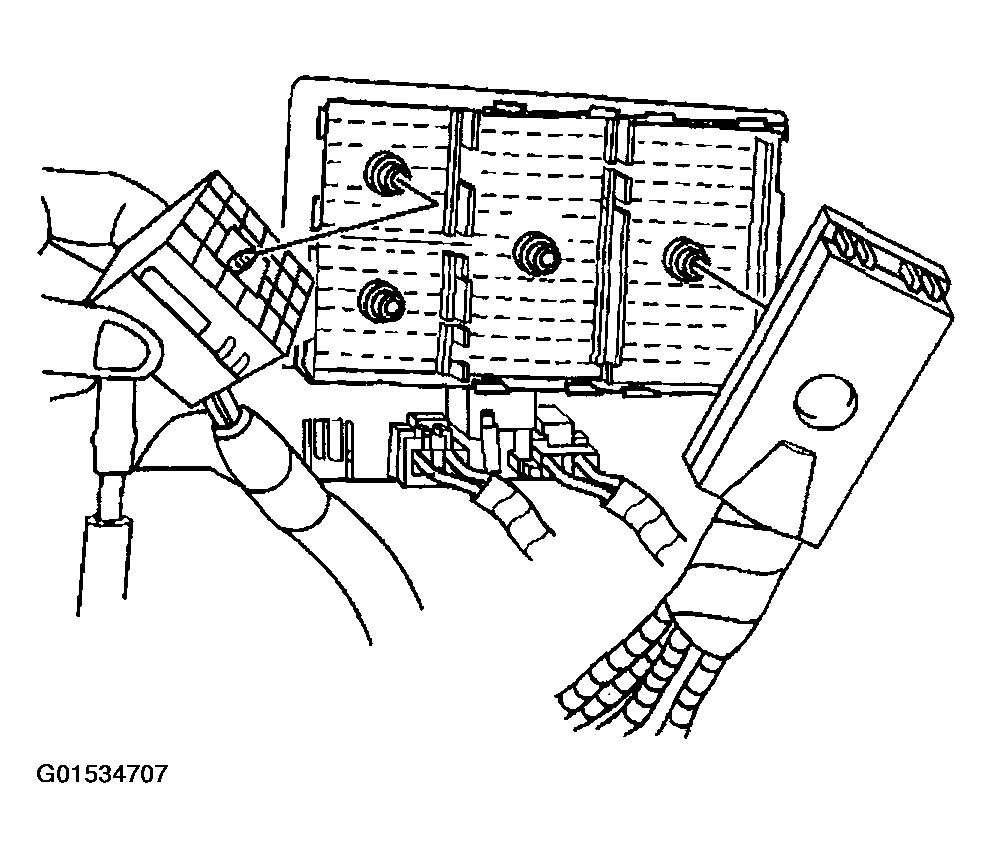

    Fig 5: Disconnecting Electrical Connectors From Underhood Electrical Center
    G01534707Courtesy of GENERAL MOTORS CORP.
