Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Support the transmission with a transmission jack.
  3. Remove the transmission mount to the transmission support retaining nut or nuts.
    Fig 1: Transmission Support Retaining Nut
    G01980071Courtesy of GENERAL MOTORS CORP.
  4. Raise the transmission to take the weight off of the mount.
  5. Remove the transmission mount to the transmission or transfer case adapter mounting bolts (1).
  6. Raise the transmission just enough to remove the transmission mount.
  7. Remove the transmission mount from the vehicle.

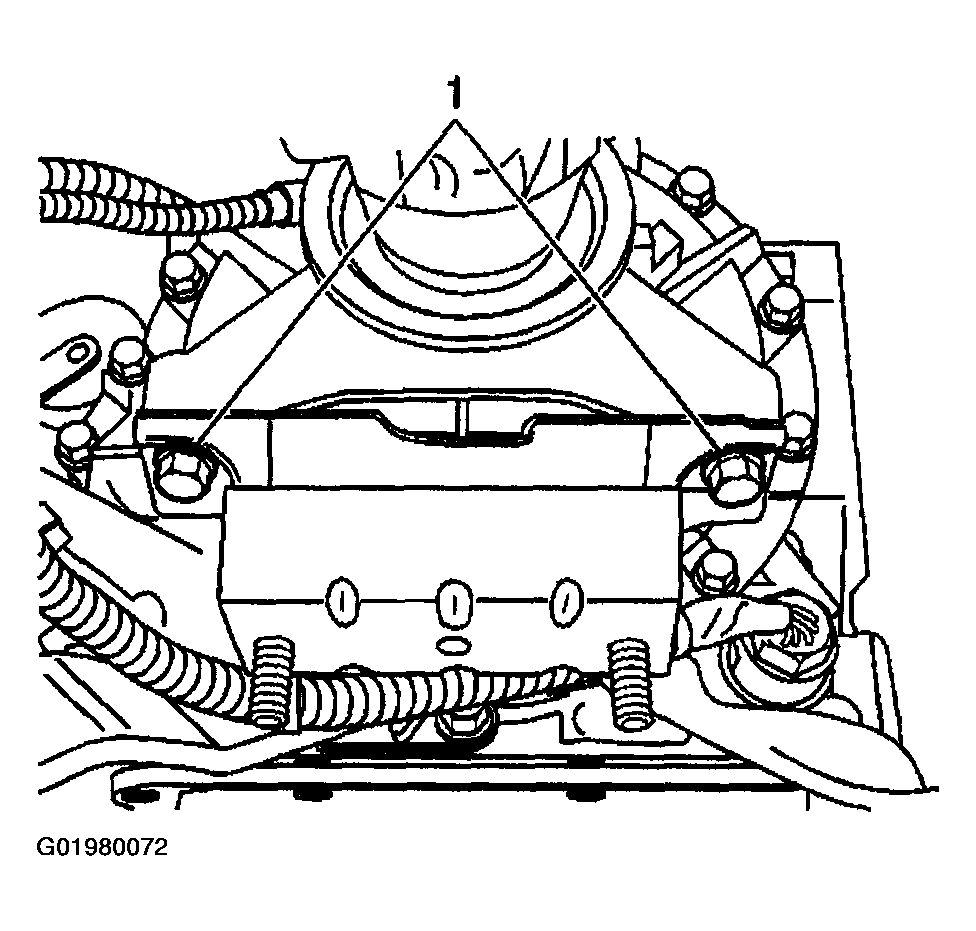

    Fig 2: Transfer Case Adapter Mounting Bolts
    G01980072Courtesy of GENERAL MOTORS CORP.
