Automatic Transmission Range Selector Cable Adjustment

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the park brake.
  2. Place the transmission range selector control lever (column or floor shift) into the NEUTRAL position.
  3. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  4. Remove the positive assurance pin (2) from the bracket.

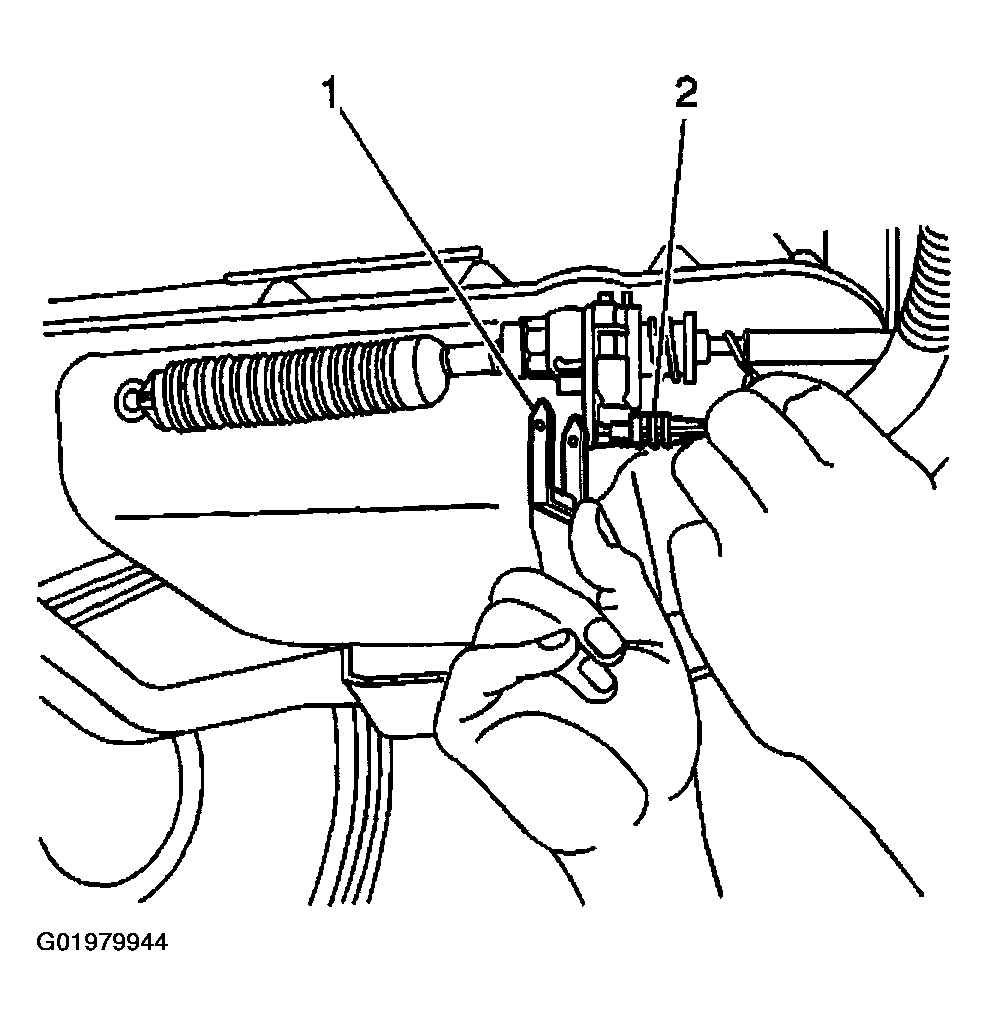

    Fig 1: Removing Positive Assurance Pin From Bracket
    G01979944Courtesy of GENERAL MOTORS CORP.
  5. Release the cable lock tab (1).

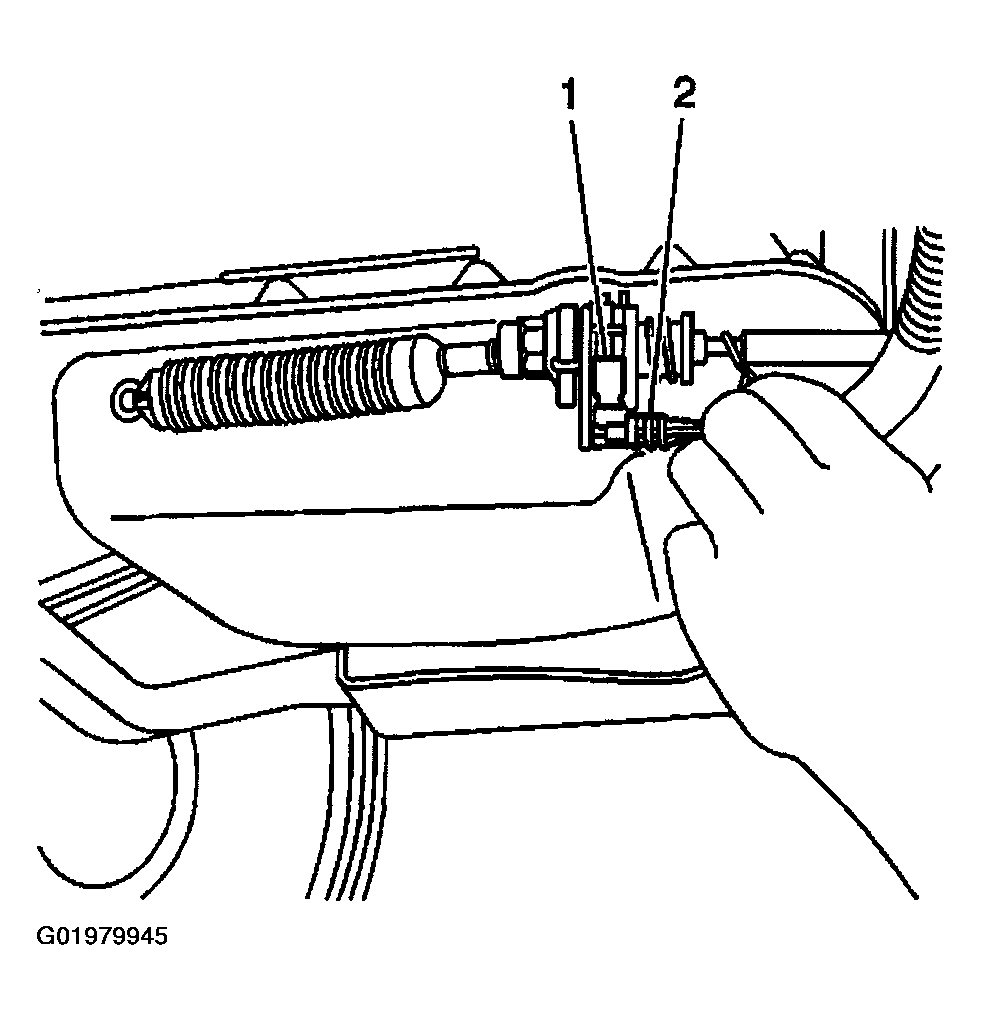

    Fig 2: Releasing Cable Lock Tab
    G01979945Courtesy of GENERAL MOTORS CORP.
  6. Ensure that the transmission range selector lever is in the NEUTRAL position. Rotate the range select lever fully clockwise then counter clockwise two detents.
  7. Pull the cable end completely forward and release it. This allows the adjustment spring to position the cable to its most rearward position. Use care not to pull the cable past the ball stud, this will result in a misadjusted cable.
  8. If the adjustment body is not free to move under spring load, a proper adjustment can still be made. Push the adjustment body against the rearward stop. Pull the cable end just far enough forward to install it to the ball stud.
  9. Install the range selector cable end (2) to the range selector lever ball stud (1).

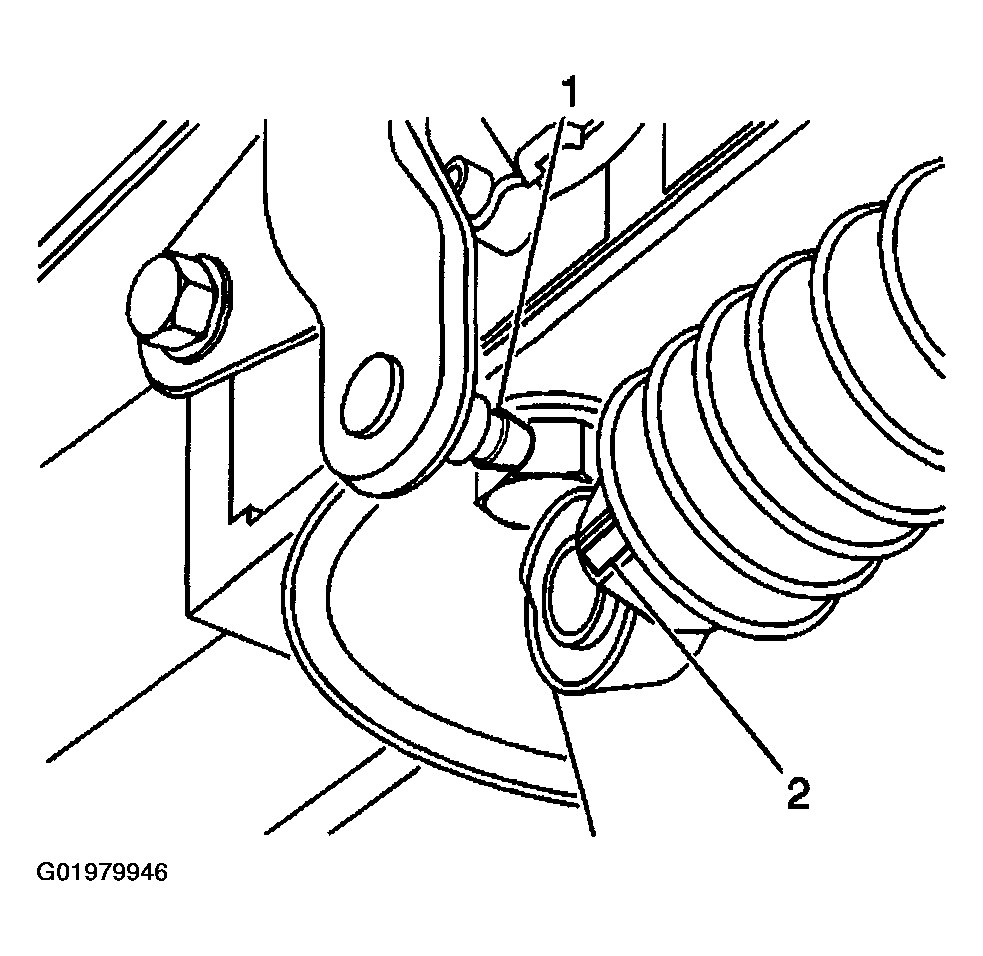

    Fig 3: Installing Range Selector Cable End To Range Selector Lever Ball Stud
    G01979946Courtesy of GENERAL MOTORS CORP.
  10. Depress the locking tab of cable (1) to set the adjustment.
    Fig 4: Depressing Locking Tab Of Cable To Set Adjustment
    G01979947Courtesy of GENERAL MOTORS CORP.
  11. Install the positive assurance pin (2) into the bracket.
  12. Lower the vehicle.
  13. Check the vehicle for proper operation. The following conditions must be met:
    • When moving the shift lever from Park to L, all detent positions will be attainable.
    • There will be an equal amount of "free play" between the shift lever and the gate in the drive and reverse detent. If there is no "free play", the adjustment is not acceptable.
    • With the key in the "on" position and shift lever in reverse, the key will not be removable, and the steering wheel will not be locked.
    • With the key in the "locked" position, and the shift lever in the "park" position, the key will be removable, the steering wheel will be locked, and the shift lever will not disengage park.

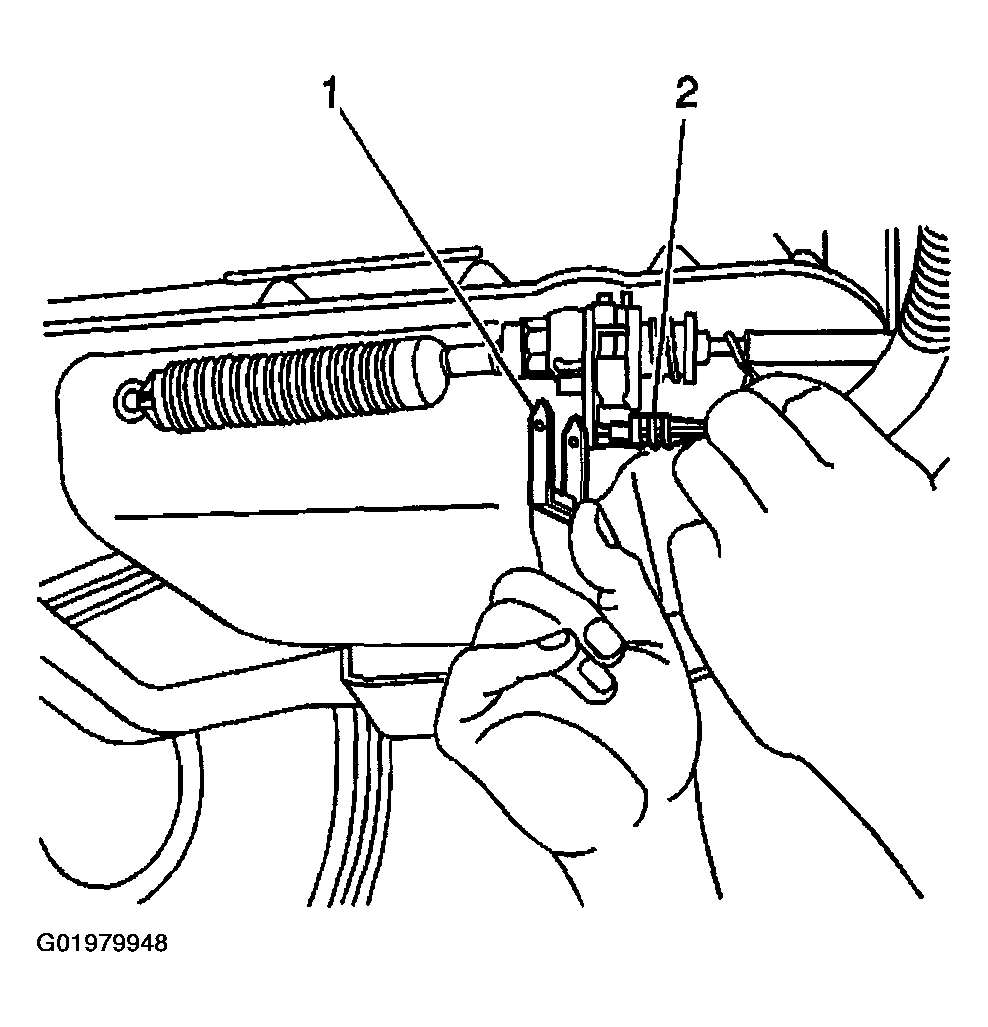

      Fig 5: Installing Positive Assurance Pin Into Bracket
      G01979948Courtesy of GENERAL MOTORS CORP.
