DTC P0705 (2.2L): Invalid TR Switch Signal Combination: Notes

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

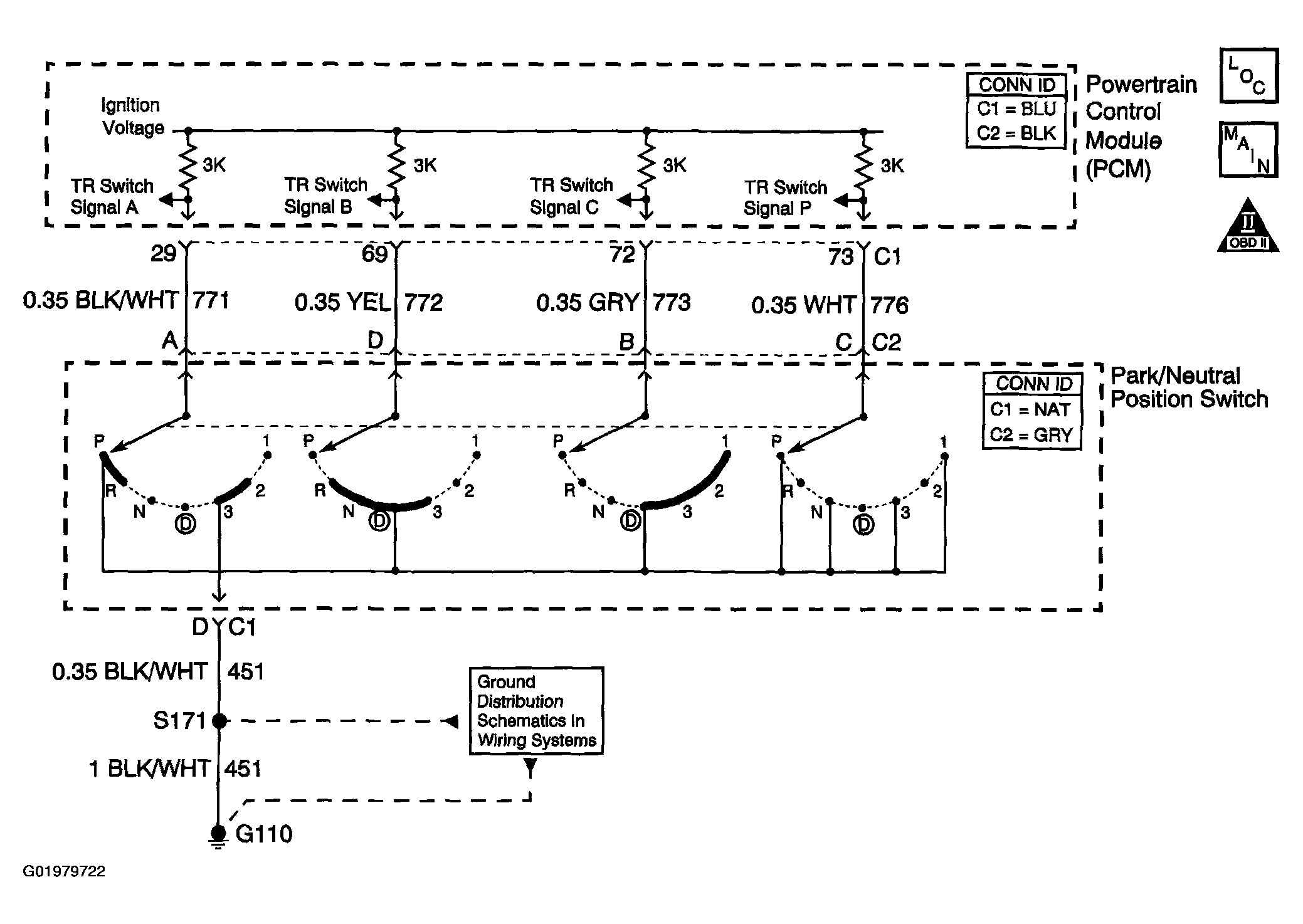

Fig 1: Automatic Transmission Circuit Diagram - DTC P0705 (2.2L)
G01979722Courtesy of GENERAL MOTORS CORP.
