Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spare tire from the spare tire carrier mounting nuts.
  2. Remove the spare tire from the spare tire carrier.

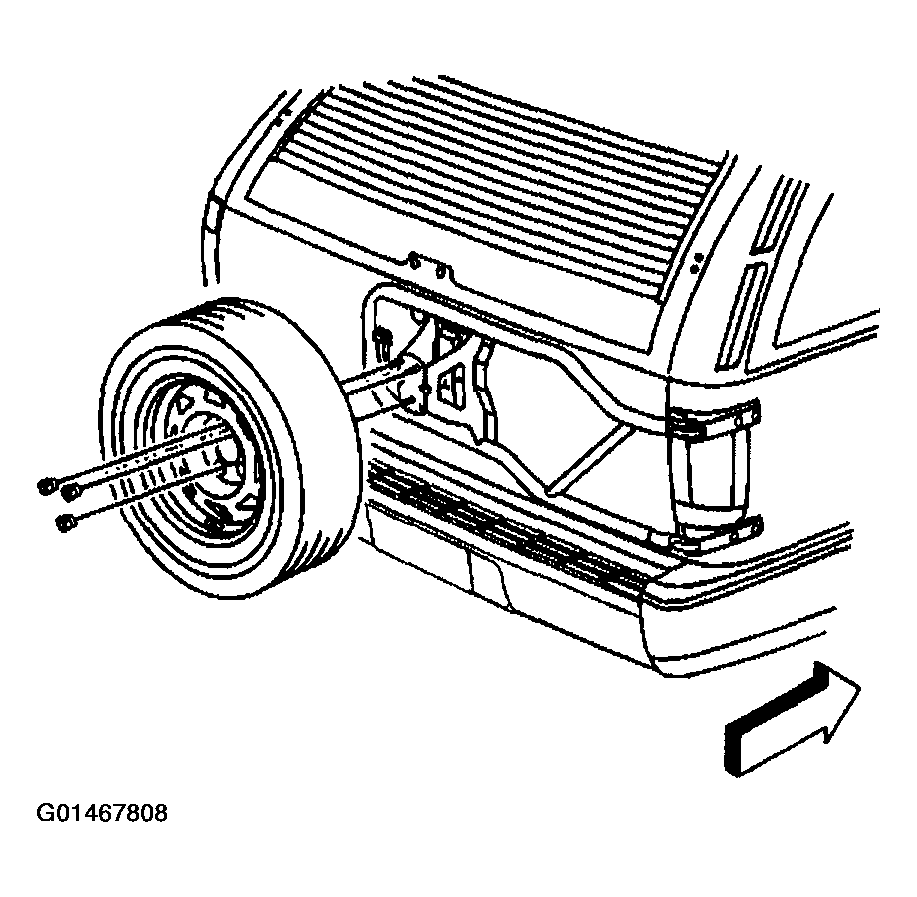

    Fig 1: Removing Spare Tire From Spare Tire Carrier
    G01467808Courtesy of GENERAL MOTORS CORP.
  3. Open the spare tire carrier.
  4. Remove the spare tire carrier mounting bolts and the washers.
  5. Remove the spare tire carrier from the vehicle.

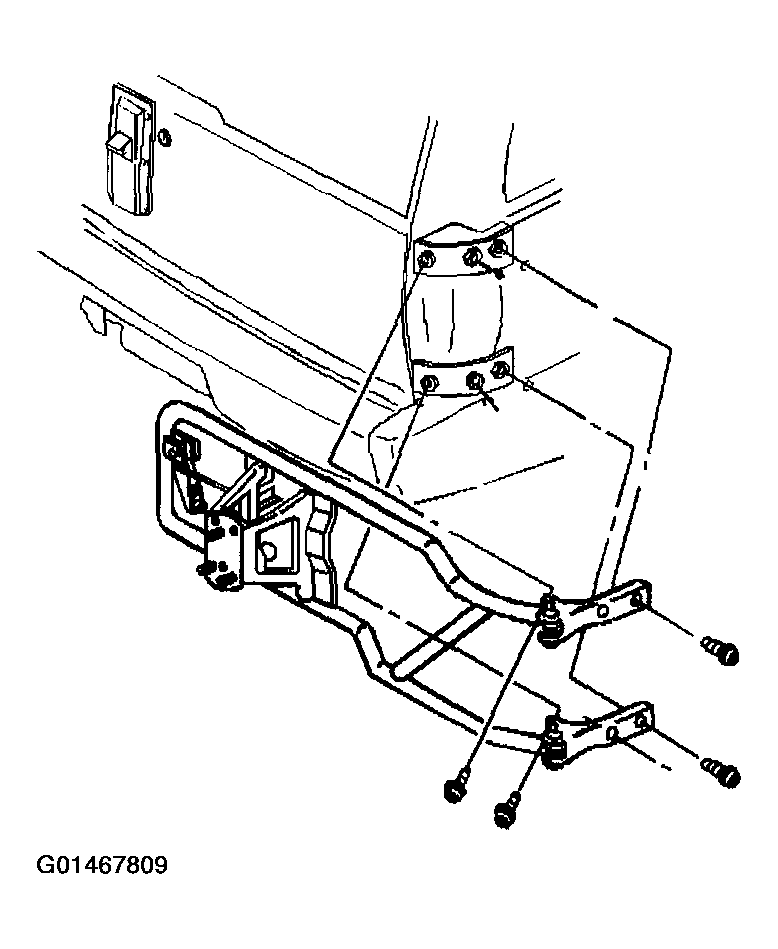

    Fig 2: Removing Spare Tire Carrier From Vehicle
    G01467809Courtesy of GENERAL MOTORS CORP.
