Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vacuum tank. Ensure that the retaining tabs lock into place.

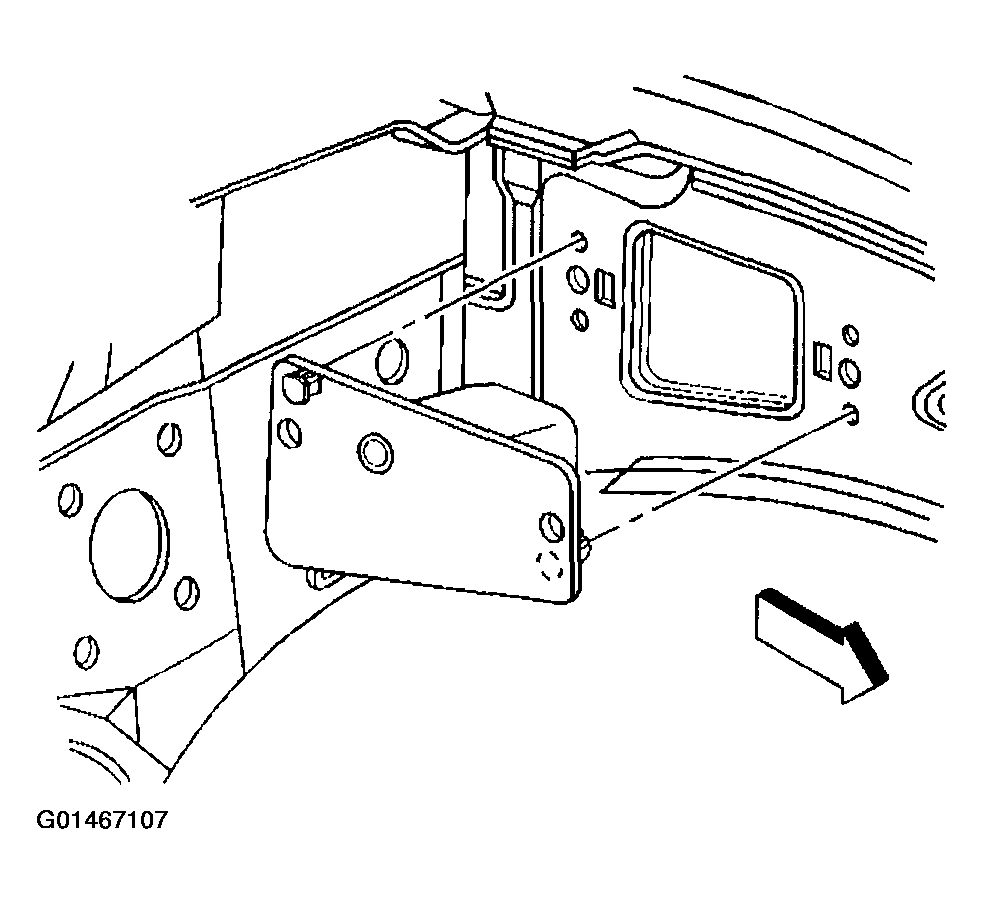

    Fig 1: Vacuum Tank
    G01467107Courtesy of GENERAL MOTORS CORP.
  2. Install the vacuum hose(s).
  3. Install the brake pressure modulator valve. Refer to BRAKE PRESSURE MODULATOR VALVE (BPMV) REPLACEMENT in Antilock Brake System.

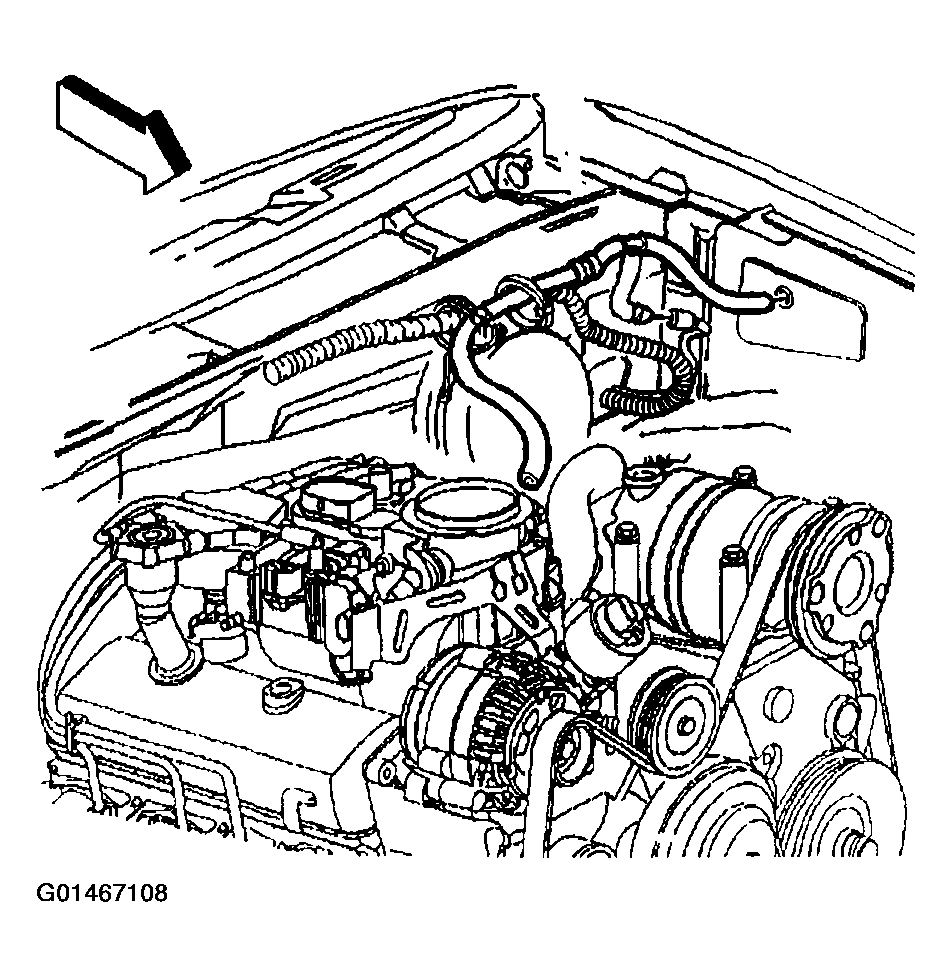

    Fig 2: Vacuum Hose(s)
    G01467108Courtesy of GENERAL MOTORS CORP.
