Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

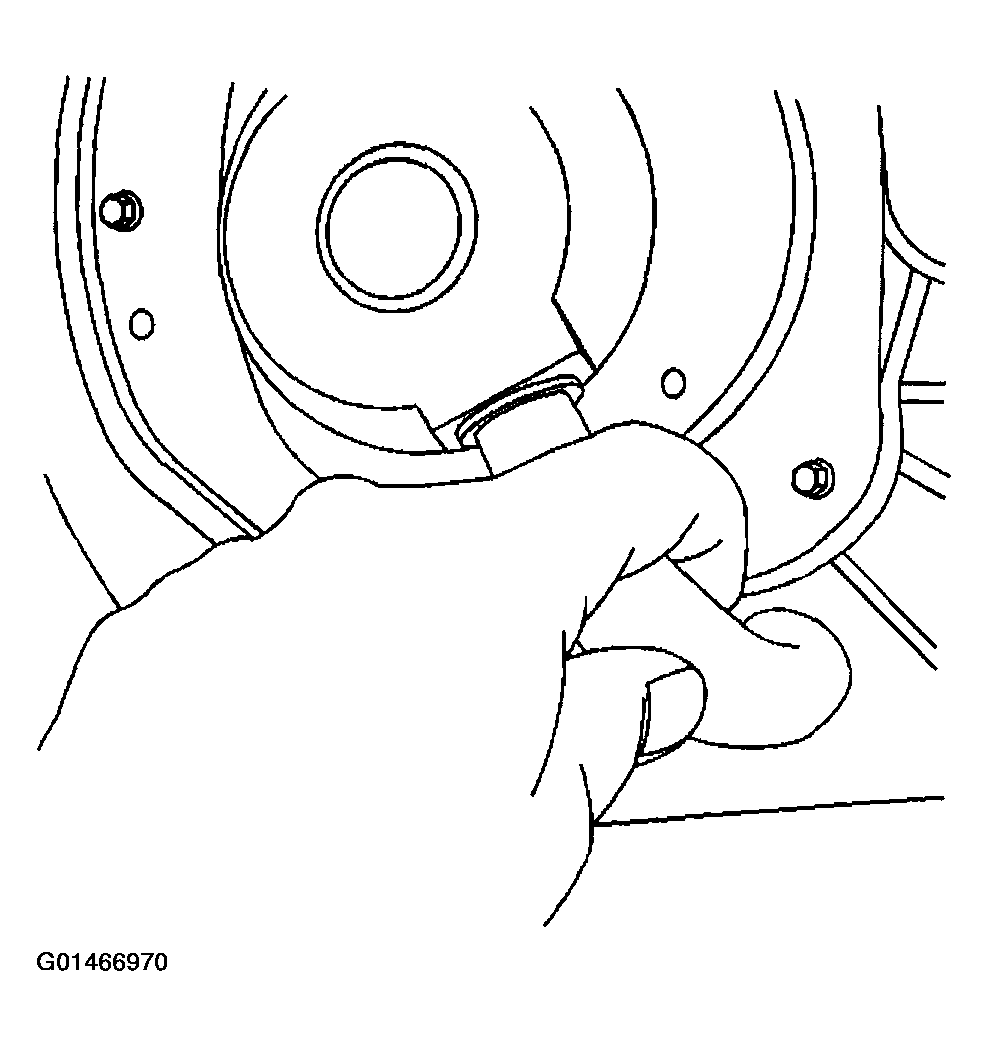

Fig 1: Disconnecting Cooling Tube From Blower Motor
G01466970Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the PCM. Refer to the appropriate procedure:
  2. Remove the coolant reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.
  3. Remove the rear coolant recovery reservoir mounting stud.
  4. Disconnect the cooling tube from the blower motor.
  5. Disconnect the electrical connector (1).
  6. Remove the blower motor mounting bolts (2).
  7. Remove the blower motor.

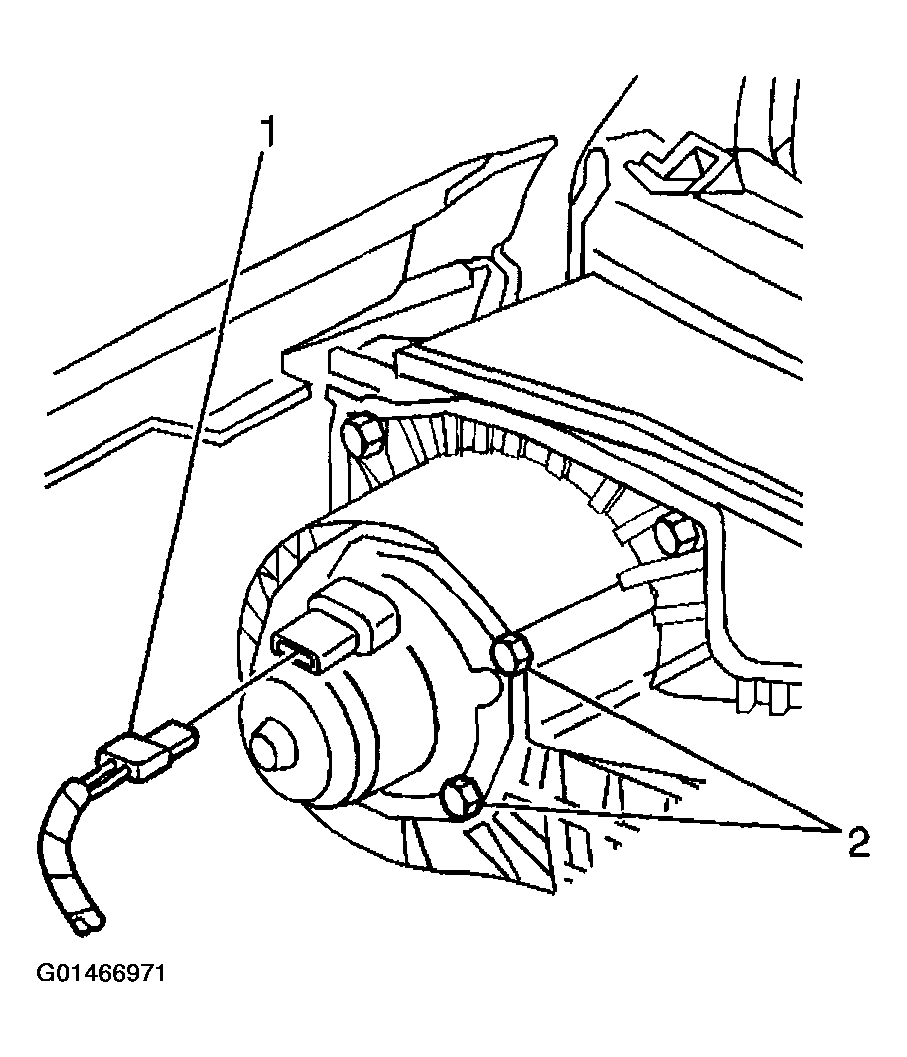

    Fig 2: Disconnecting Electrical Connector
    G01466971Courtesy of GENERAL MOTORS CORP.
