Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater/vent module. Refer to HEATER/VENT MODULE REPLACEMENT .
  2. Remove screws in order to split the HVAC module in half.
  3. Disconnect the air temperature electrical actuator.
  4. Remove the air temperature actuator screws.
  5. Remove the air temperature actuator.
  6. Remove the vacuum harness from the mode actuator.
  7. Remove the mode actuator rod retaining clip.
  8. Remove the mode actuator rod from the mode door lever.
  9. Remove the mode actuator.

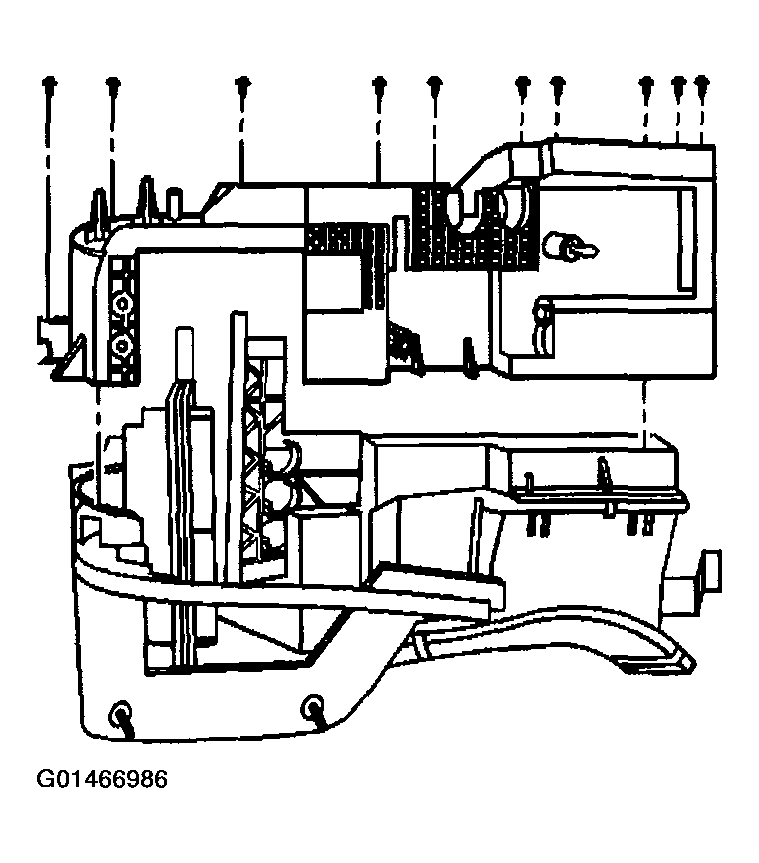

    Fig 1: Removing Screws In Order To Split HVAC Module
    G01466986Courtesy of GENERAL MOTORS CORP.
  10. Remove the air temperature door (1) from the lower module half.

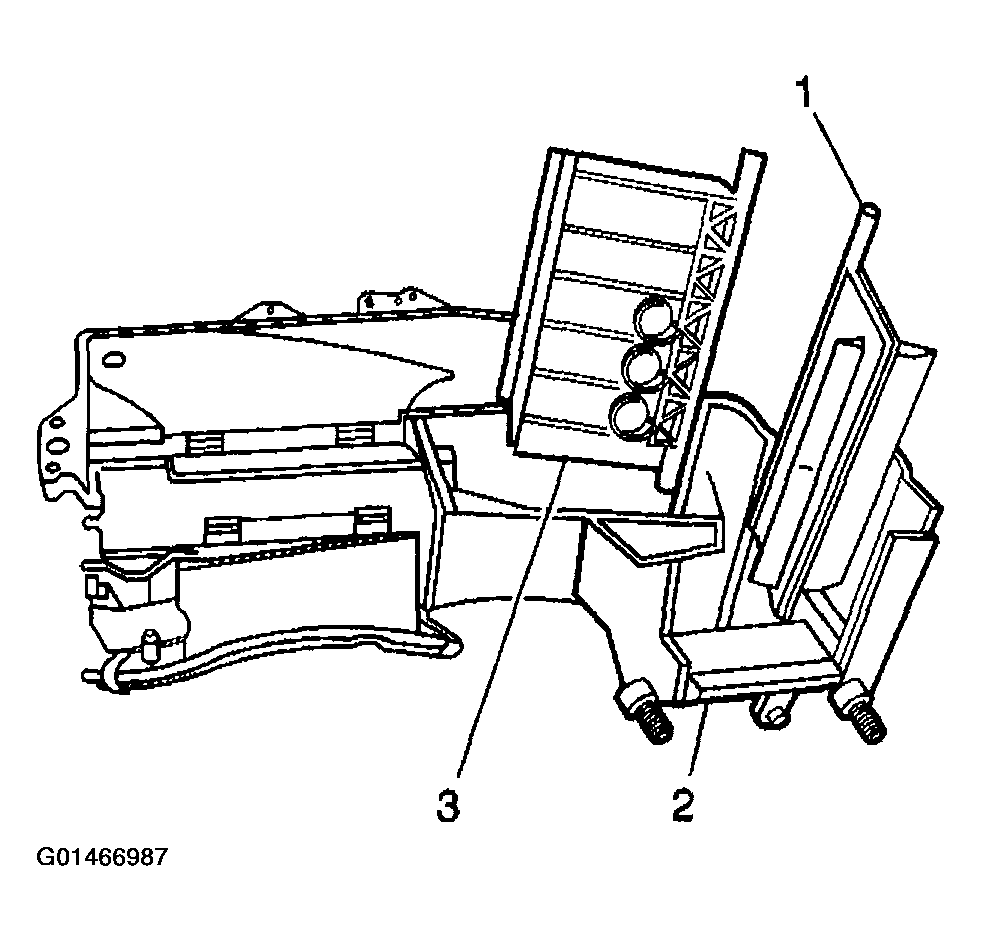

    Fig 2: Removing Air Temperature Door From Lower Module Half
    G01466987Courtesy of GENERAL MOTORS CORP.
