Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the floor air outlet. Ensure that the outlet locks into place.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the floor air outlet screws.

    Tighten

    Tighten the screws to 1.9 N.m (17 Ib. in).

  3. Install the heater/vent module. Refer to HEATER/VENT MODULE REPLACEMENT .

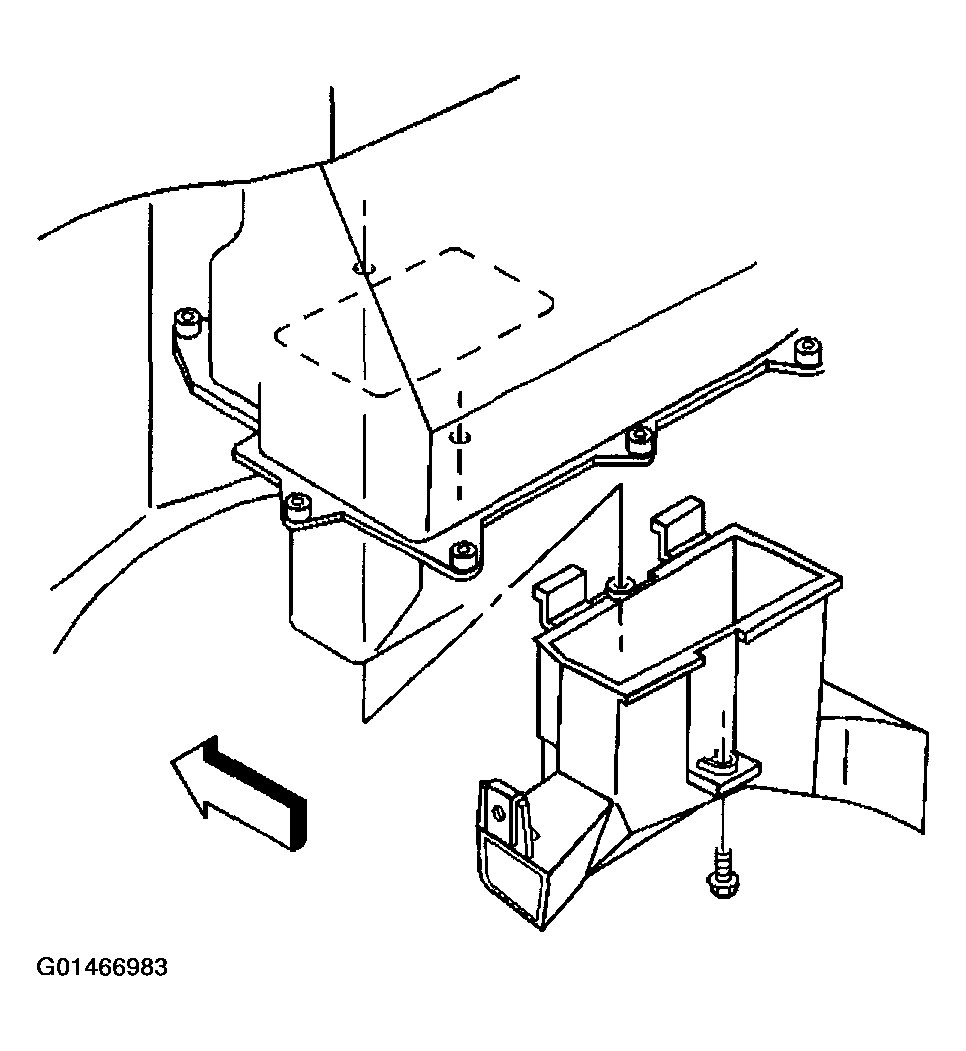

    Fig 1: Installing Floor Air Outlet Into Heater/Vent Module
    G01466983Courtesy of GENERAL MOTORS CORP.
